SMA 암 4홀 플랜지 마운트 RF 커넥터 – 솔더 부착, 홀 간격 8,65mm, 핀 터미널

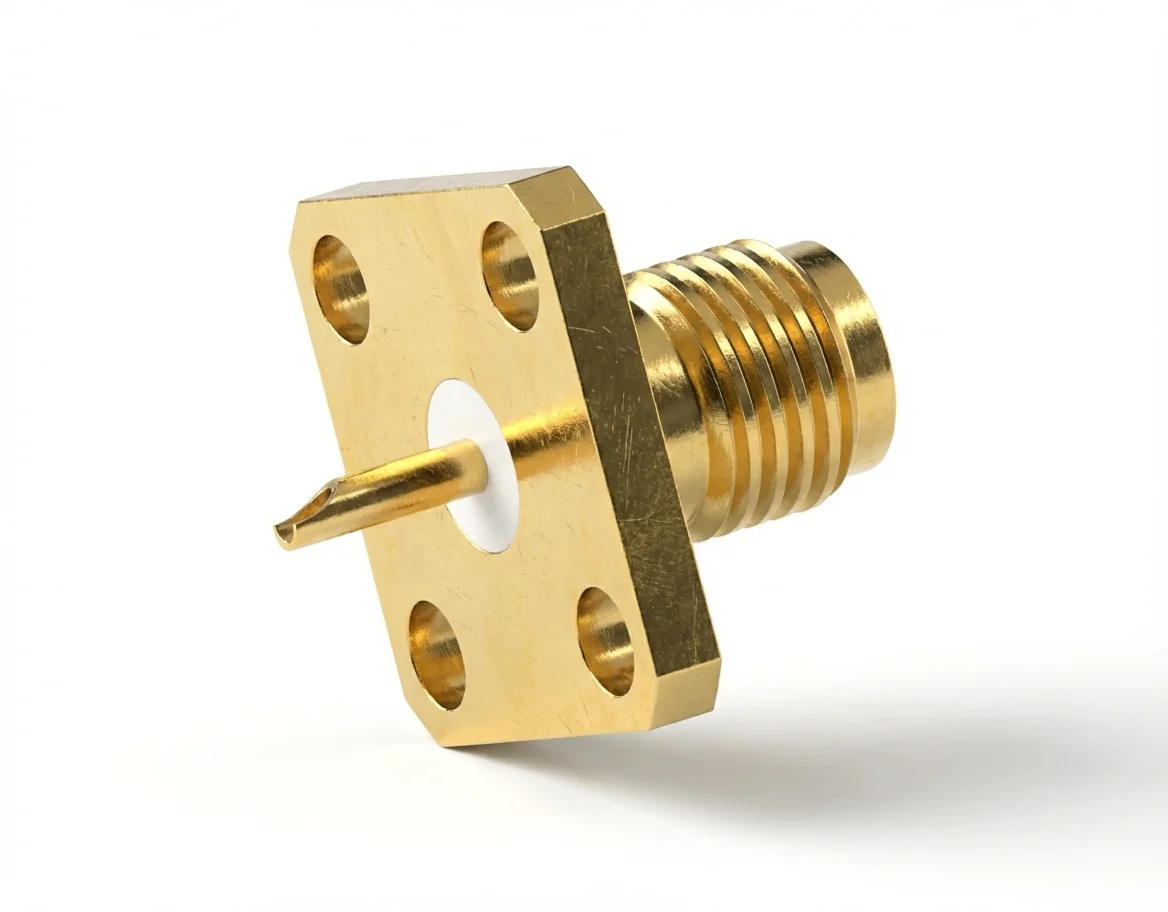

SMA Female 4-Hole Flange Mount RF Connector – Solder Attachment, Model SMA-KSS2

The SMA female 4-hole flange mount RF connector with 8.65 mm hole spacing and pin terminal provides precise electrical performance and rugged mechanical stability for high-frequency systems. Designed for 50 Ω impedance and frequencies up to 18 GHz, the SMA-KSS2 is ideal for applications requiring consistent low-loss signal transmission.

Stable Electrical Characteristics

The SMA-KSS2 RF connector delivers VSWR ≤ 1.08 and insertion loss ≤ 0.06 √F(GHz) dB, ensuring minimal reflection and reliable signal integrity. Its precision interface guarantees stable impedance matching and exceptional return loss in both laboratory and production test environments.

Material Quality and Compliance

Built from passivated stainless steel with gold-plated beryllium copper contacts, the SMA-KSS2 connector ensures long-term mechanical durability and electrical conductivity. Fully RoHS and REACH compliant, it withstands demanding environmental and operational conditions while maintaining stable electrical contact.

Flange Mount Configuration and Use

The 4-hole flange mount design allows easy panel integration and secure attachment in microwave communication systems, instrumentation modules, and RF test fixtures. Its solder-attachment termination ensures firm electrical continuity for low-VSWR connections.

Explore SMA Connector Solutions

Discover Mechanc’s full range of SMA connectors engineered for superior reliability and precision performance. Visit the RF Connector Catalog to find compatible female RF connectors and other flange-mount solutions for high-frequency integration.
