SMP Erkek Tam Kilitlemeli RF Konnektör – 2 Delikli Flanş Montajlı, 8,3 mm Delik Aralığı, 0,3 mm Pin Çapı, Pin Terminal

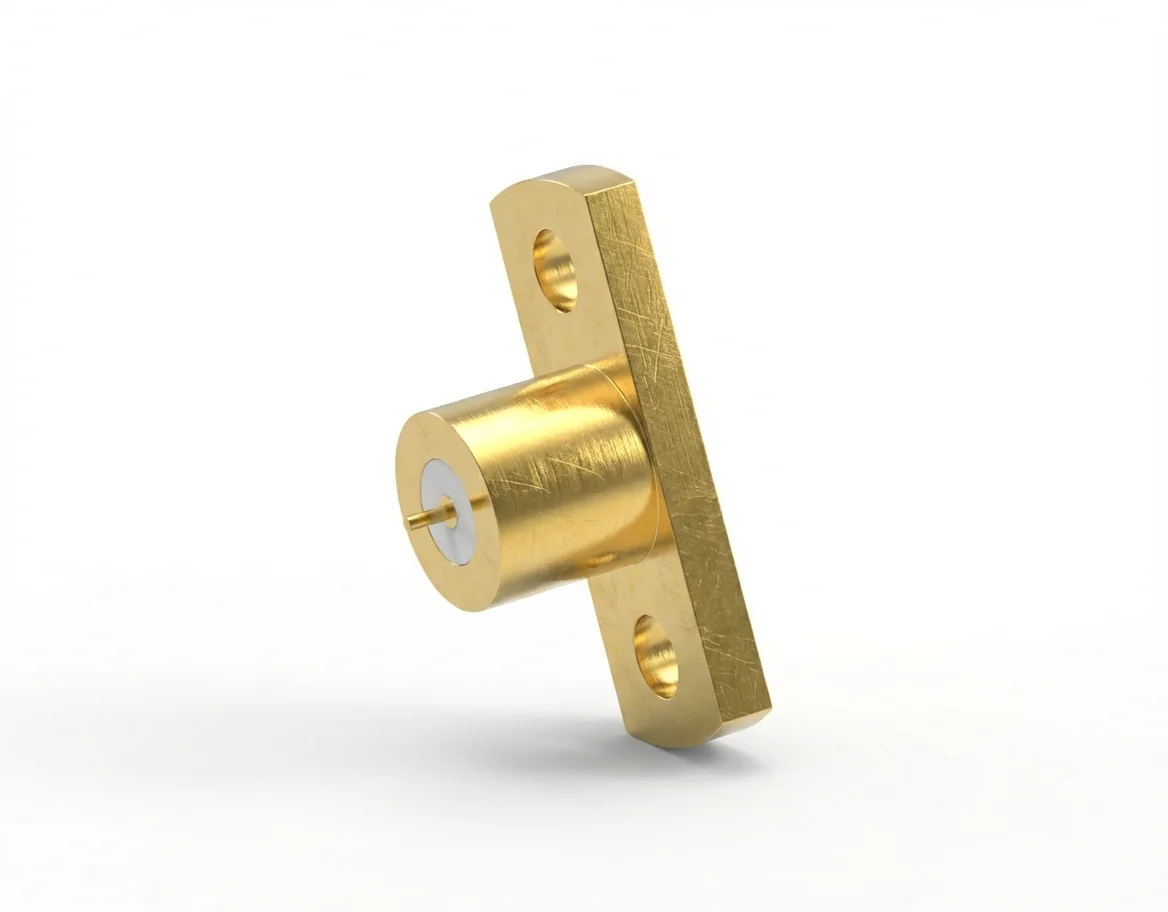

SMP Male Full Detent RF Connector – 2-Hole Flange Mount, Model SMP-JFD100-L

The SMP male full detent RF connector with 8.3 mm hole spacing and 0.3 mm pin diameter delivers superior connection reliability and electrical performance in compact high-frequency systems. With a 50 Ω impedance and operating frequency up to 40 GHz, the SMP-JFD100-L is designed for advanced RF modules, instrumentation, and defense-grade communication assemblies.

Precision Electrical Characteristics

The SMP-JFD100-L connector ensures excellent signal stability with VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB. Its robust full detent interface provides secure mating and consistent contact pressure, maintaining minimal reflection and low loss across the entire frequency range.

Rugged Materials and Compliance

Constructed from passivated stainless steel with gold-plated beryllium copper inner conductors, the SMP-JFD100-L RF connector achieves superior conductivity and corrosion resistance. It is fully RoHS and REACH compliant, ensuring durability under repeated mating cycles in demanding RF environments.

Mounting Design and Applications

The 2-hole flange mount design enables secure panel installation and easy integration into miniaturized RF assemblies, satellite modules, and microwave test fixtures. The full detent locking system ensures a vibration-resistant, high-retention interface for reliable long-term use.

Explore the SMP Connector Range

Discover Mechanc’s full line of SMP connectors including smooth bore, limited detent, and full detent variants for all frequency bands. Visit the RF Connector Catalog to find the right precision-engineered solution for your next high-frequency project.
