High-Power 18GHz Low-Loss RF Coaxial Cable – Model CFP640

High-Power Low-Loss Cable for Demanding RF and Microwave Applications

The CFP640 high-power low-loss coaxial cable is built for high-energy RF and microwave systems requiring exceptional power endurance, low attenuation, and consistent phase stability. Operating up to 18 GHz with a 50 Ω impedance, it delivers reliable transmission with minimal loss under continuous high-power conditions. Designed for both fixed and dynamic setups, the CFP640 ensures thermal reliability and amplitude precision in radar, defense, and communication test environments. Explore related models within the CFP Series – High-Power Low-Loss Coaxial Cables.

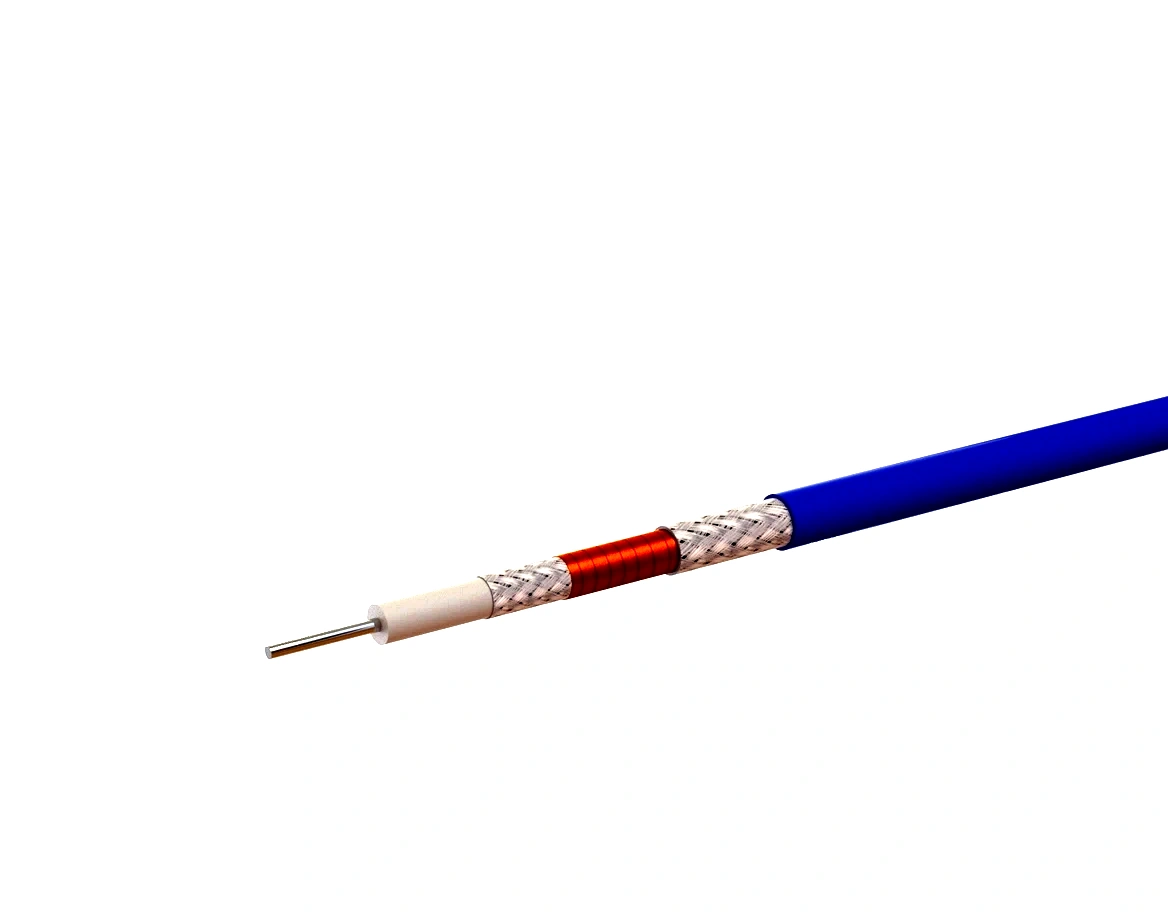

Solid Conductor and Six-Layer High-Power Design

The CFP640 coaxial cable uses a solid silver-plated copper inner conductor (1.57 mm) for superior current-carrying capacity and minimized resistive losses. Its six-layer structure—LD-PTFE dielectric, silver-plated copper ribbon, high-temperature aluminum foil, copper braid, and FEP jacket—ensures stable impedance and outstanding durability. Attenuation remains as low as 0.22 dB/m @ 1 GHz and 1.02 dB/m @ 18 GHz, supporting average power up to 2.05 kW @ 100 MHz while maintaining amplitude stability within ±0.1 dB @ 18 GHz.

Superior Shielding and Thermal Resistance

With > 100 dB EMI suppression, the CFP640 cable maintains distortion-free signal integrity in high-field environments. The 6.35 mm FEP jacket offers excellent flexibility, chemical resistance, and heat tolerance up to +200 °C. Its 31 mm single-bend and 63 mm repeated-bend radii guarantee mechanical reliability during installation or frequent motion. For additional cable families designed for lower-power applications, visit the Low-Loss Coaxial Cable Series or the general Coaxial Cable overview.

Applications Requiring Maximum Power and Stability

The CFP640 high-power coaxial cable is ideal for high-energy transmitters, RF amplifiers, and industrial test setups operating across 0–18 GHz. Its 2000 V DC voltage rating, excellent phase control (≤ ±5° @ 18 GHz), and robust shielding structure ensure consistent performance under demanding conditions. Compatible with rugged RF connectors such as N-type and TNC interfaces, it delivers reliable coupling for high-current, low-loss operation.

Manufactured by Mechanc Shanghai Information Technology Co., Ltd., the CFP640 high-power low-loss coaxial cable combines solid-core conductivity, six-layer shielding integrity, and verified REACH and RoHS compliance — ensuring long-life, precision-grade performance for high-power RF and microwave applications.
