Phase-Stable 110GHz Ruggedized Precision Test Coaxial Cable FEP Jacket – Model CFT150

Low-Loss & Phase-Stable Cable for Precision RF and Microwave Testing

The CFT150 low-loss & phase-stable precision test coaxial cable is designed for RF and microwave engineers who demand consistent amplitude and phase accuracy across ultra-wide frequency ranges. Operating up to 110 GHz with a 50 Ω impedance, it provides exceptional signal integrity and minimal attenuation for metrology-grade applications. Fully REACH and RoHS compliant, the CFT150 offers long bending life, stable phase characteristics, and reliable repeatability in professional test environments. Explore the complete CFT Series – Low-Loss & Phase-Stable Precision Test Cables for additional models and performance levels.

High Electrical Stability and Controlled Phase Behavior

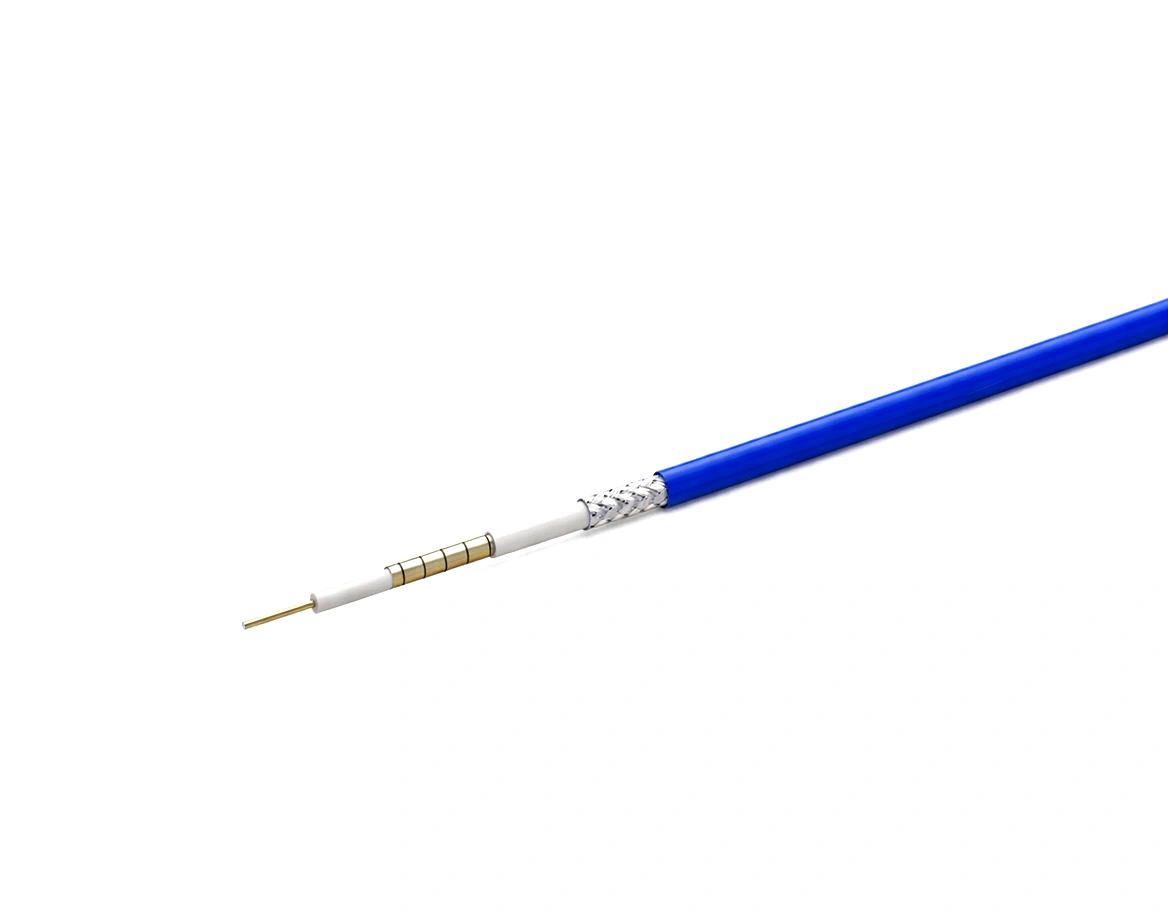

The CFT150 coaxial cable features a silver-plated copper inner conductor (0.31 mm) and a low-density PTFE dielectric (0.88 mm), ensuring excellent impedance uniformity and a propagation velocity of 80 %. It maintains phase stability within ±5° @ 18 GHz and ±7° @ 26.5 GHz, with amplitude stability ≤ ±0.15 dB @ 18 GHz. Designed to withstand temperatures from –55 °C to +125 °C, the CFT150 delivers consistent electrical performance even under mechanical or thermal stress. For applications requiring enhanced amplitude stability, higher voltage endurance, and armored protection against repeated motion, consider the upgraded CFT150A39 – Low-Loss & Phase-Stable Precision Test Coaxial Cable, featuring a multi-layer armor jacket and extended service life exceeding 500 000 bend cycles.

Durable FEP Jacket and Dual Silver Shielding

Encased in a 1.85 mm FEP jacket, the CFT150 precision test cable offers high flexibility, chemical resistance, and excellent abrasion protection. Dual silver-plated copper shielding provides > 90 dB EMI suppression, ensuring low noise and reliable signal integrity in high-frequency systems. Its 10 mm single-bend and 20 mm repeated-bend radius make it ideal for precise test setups requiring frequent handling. Visit the Precision Test Coaxial Cable Series page to browse compatible assemblies and related interconnect solutions.

Applications Requiring Phase and Amplitude Stability

The CFT150 low-loss coaxial cable is optimized for vector network analyzer (VNA) calibration, radar component testing, and high-frequency signal verification up to 110 GHz. Its combination of low attenuation (1.14 dB/m @ 1 GHz) and controlled phase behavior makes it a preferred choice for laboratory and production environments. For integration with precision interconnects, explore our RF connector portfolio including 1.0 mm, 1.85 mm, and 2.92 mm interfaces.

Manufactured by Mechanc Shanghai Information Technology Co., Ltd., the CFT150 low-loss & phase-stable precision test coaxial cable delivers consistent amplitude control, high shielding effectiveness, and verified REACH and RoHS compliance—providing reliable performance for demanding RF and microwave measurement applications.
