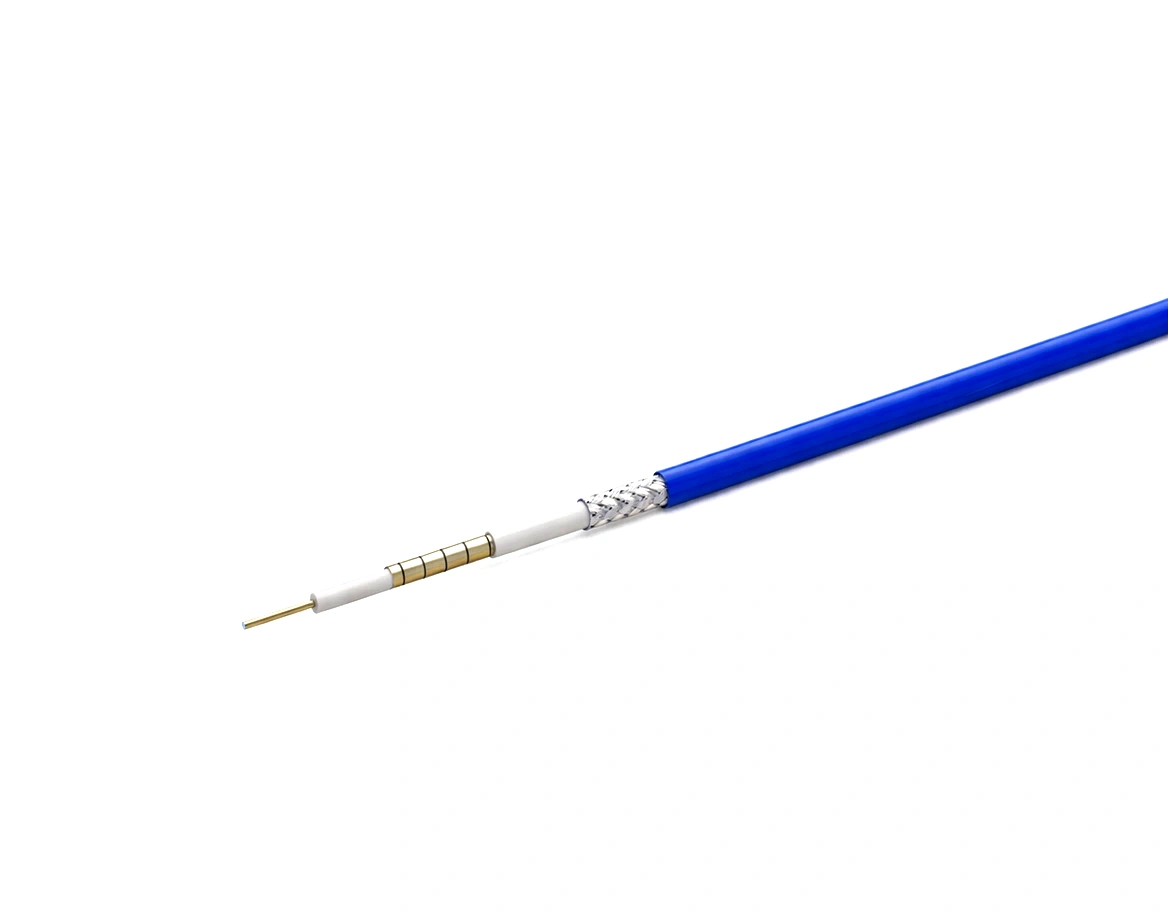

Phase-Stable 67GHz Precision Test Coaxial Cable with FEP Jacket – Model CFT240

Low-Loss & Phase-Stable Cable for Reliable RF and Microwave Measurements

The CFT240 low-loss & phase-stable precision test coaxial cable is engineered for professionals requiring consistent electrical performance and low attenuation across broadband frequency ranges. Operating up to 67 GHz with a 50 Ω impedance, it ensures exceptional signal stability for calibration, measurement, and component validation. Fully REACH and RoHS compliant, the CFT240 delivers high repeatability and superior mechanical flexibility for metrology-grade and production test setups. Explore the complete CFT Series – Low-Loss & Phase-Stable Precision Test Cables for additional frequency and armor options.

Stable Electrical Characteristics and Low Attenuation

The CFT240 coaxial cable integrates a silver-plated copper inner conductor (0.50 mm) and LD-PTFE dielectric (1.38 mm) to achieve uniform impedance and excellent signal propagation (81 % velocity). It maintains phase stability within ±3° @ 18 GHz and ±5° @ 26.5 GHz, with amplitude stability ≤ ±0.1 dB @ 18 GHz. Its attenuation is as low as 0.637 dB/m @ 1 GHz and 5.93 dB/m @ 67 GHz, ensuring precise, low-loss transmission. The wide operating temperature range (–55 °C to +165 °C) guarantees dependable performance under thermal stress. For advanced setups requiring even greater amplitude precision and mechanical protection, see the enhanced CFT240A47 – Low-Loss & Phase-Stable Precision Test Coaxial Cable with armored construction and ±0.05 dB amplitude stability up to 67 GHz.

Durable FEP Jacket and High Shielding Efficiency

Encased in a 2.40 mm FEP jacket, the CFT240 test cable offers outstanding flexibility, chemical resistance, and wear protection. Dual silver-plated copper shielding layers ensure > 90 dB electromagnetic suppression for clean and consistent signal transmission. Its 12 mm single-bend and 24 mm repeated-bend radii make it ideal for frequent handling in precision laboratories. For integration within modular test systems, explore the Precision Test Coaxial Cable Series including armored and ultra-low-loss configurations.

High-Frequency Applications and Calibration Use

The CFT240 low-loss coaxial cable is suited for VNA calibration, high-frequency component testing, and microwave measurement systems up to 67 GHz. Its excellent attenuation-to-flexibility ratio provides consistent accuracy across test cycles. The model serves as a versatile, lightweight solution for manual and semi-automated test environments. For connector compatibility, see our RF connector portfolio featuring precision 2.92 mm, 2.4 mm, and 1.85 mm interfaces designed for optimal impedance matching.

Manufactured by Mechanc Shanghai Information Technology Co., Ltd., the CFT240 low-loss & phase-stable precision test coaxial cable delivers long-term electrical consistency, flexible handling, and verified REACH and RoHS compliance—ensuring reliable measurement results for professional RF and microwave testing applications.
