Ultra-Flexible 26.5GHz Low-Loss RF Coaxial Cable – Model CSA600

Ultra-Flexible RF Cable with Stranded Core for Superior Bend Life

The CSA600 ultra-flexible low-loss coaxial cable is engineered for RF and microwave applications that demand outstanding flexibility, low attenuation, and stable electrical performance under repeated motion. Operating up to 26.5 GHz with a 50 Ω impedance, it ensures phase stability ≤ ±4° @ 18 GHz and amplitude variation within ± 0.1 dB @ 18 GHz. For other flexible models, explore the CSA Series – Ultra Flexible Low-Loss Coaxial Cables.

Stranded Inner Conductor for Maximum Flexibility and Durability

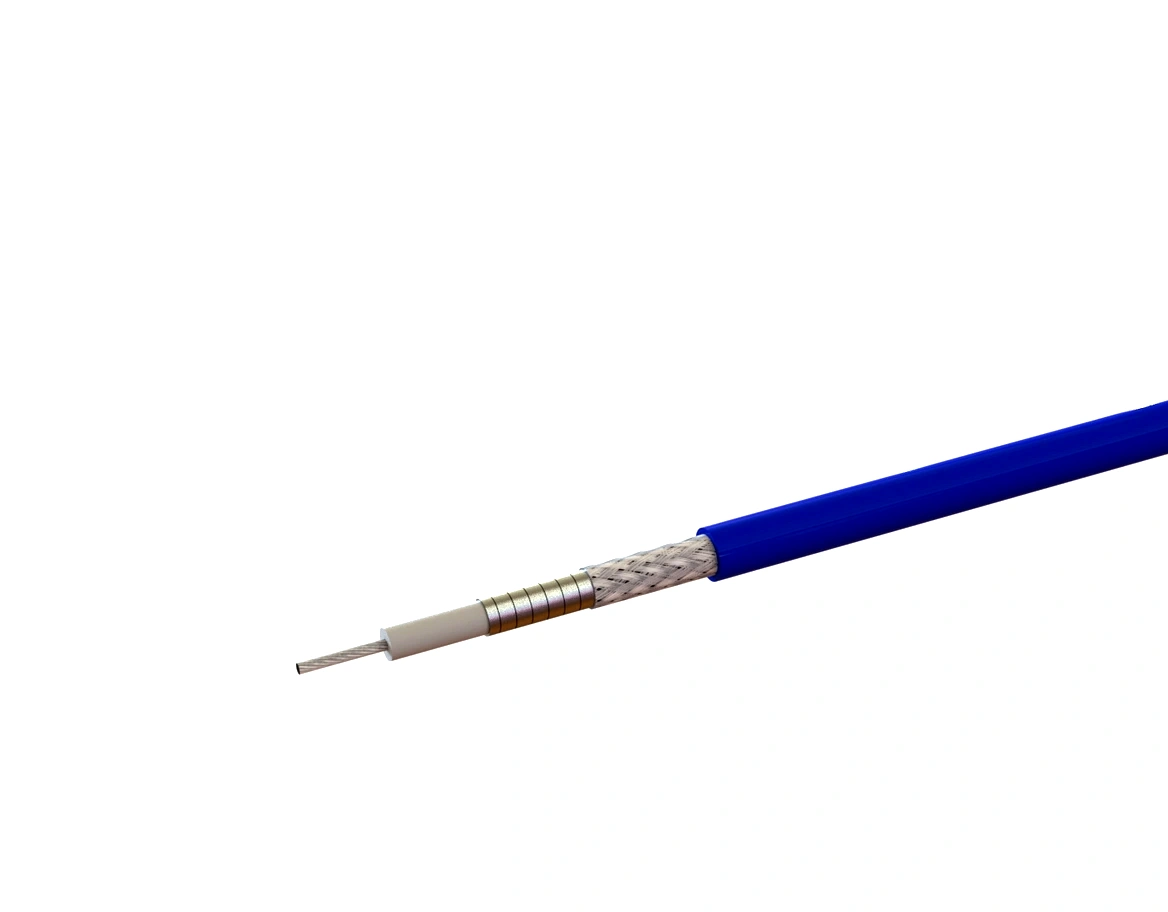

The CSA600 cable features a 1.44 mm stranded silver-plated copper inner conductor with a low-density PTFE dielectric and dual silver-plated copper shields. This multi-fiber construction ensures exceptional bending endurance and mechanical reliability while maintaining low attenuation (1.67 dB/m @ 26.5 GHz) and excellent impedance stability. The PUR jacket enhances flexibility and abrasion resistance for high-motion environments.

Consistent Electrical Stability in Harsh Conditions

Delivering attenuation as low as 0.29 dB/m @ 1 GHz and ≤ ±5° phase stability @ 26.5 GHz, the CSA600 low-loss coaxial cable provides reliable transmission in variable-temperature or vibration-prone systems. Its > 90 dB shielding effectiveness and thermal rating of –55 °C to +85 °C ensure long-term signal integrity. The 30 mm single-bend and 60 mm repeated-bend radii offer unmatched routing flexibility. For more low-loss solutions, visit the Low-Loss Coaxial Cable Series.

Manufactured by Mechanc Shanghai Information Technology Co., Ltd., the CSA600 ultra-flexible low-loss coaxial cable combines stranded-core flexibility, low attenuation, and verified REACH and RoHS compliance—ensuring reliable and durable performance for dynamic RF and microwave applications.
