Ultra Flexible and Ultra Low Loss 18 GHz Precision Test Coaxial Cable with PFA Jacket – Model CFS760M

Flexible High-Power Coaxial Cable for Precision RF and Microwave Testing

The CFS760M ultra-low-loss precision test coaxial cable delivers superior phase and amplitude stability with enhanced flexibility for high-power RF measurement systems. Designed to operate up to 18 GHz with a 50 Ω impedance, it combines mechanical resilience, low loss, and wide temperature tolerance for both laboratory and industrial test environments. Fully REACH and RoHS compliant, it ensures reliability, safety, and environmental responsibility for long-term professional use.

Stable Electrical Performance and High Power Capability

The CFS760M coaxial cable features a multi-fiber stranded silver-plated copper inner conductor combined with an LD-PTFE dielectric, providing enhanced flexibility without compromising phase stability or insertion loss. It achieves attenuation as low as 0.180 dB/m @ 1 GHz and 0.809 dB/m @ 18 GHz, with average power handling up to 1.6 kW @ 1 GHz. Phase deviation remains within ± 2° @ 10 GHz and ± 3° @ 18 GHz, while amplitude variation is limited to ≤ ± 0.1 dB @ 18 GHz. With phase drift < 750 PPM from –55 °C to +85 °C and an 83 % velocity of propagation, it guarantees precise signal transmission under varying thermal and power conditions.

Rugged Construction with Enhanced Flexibility

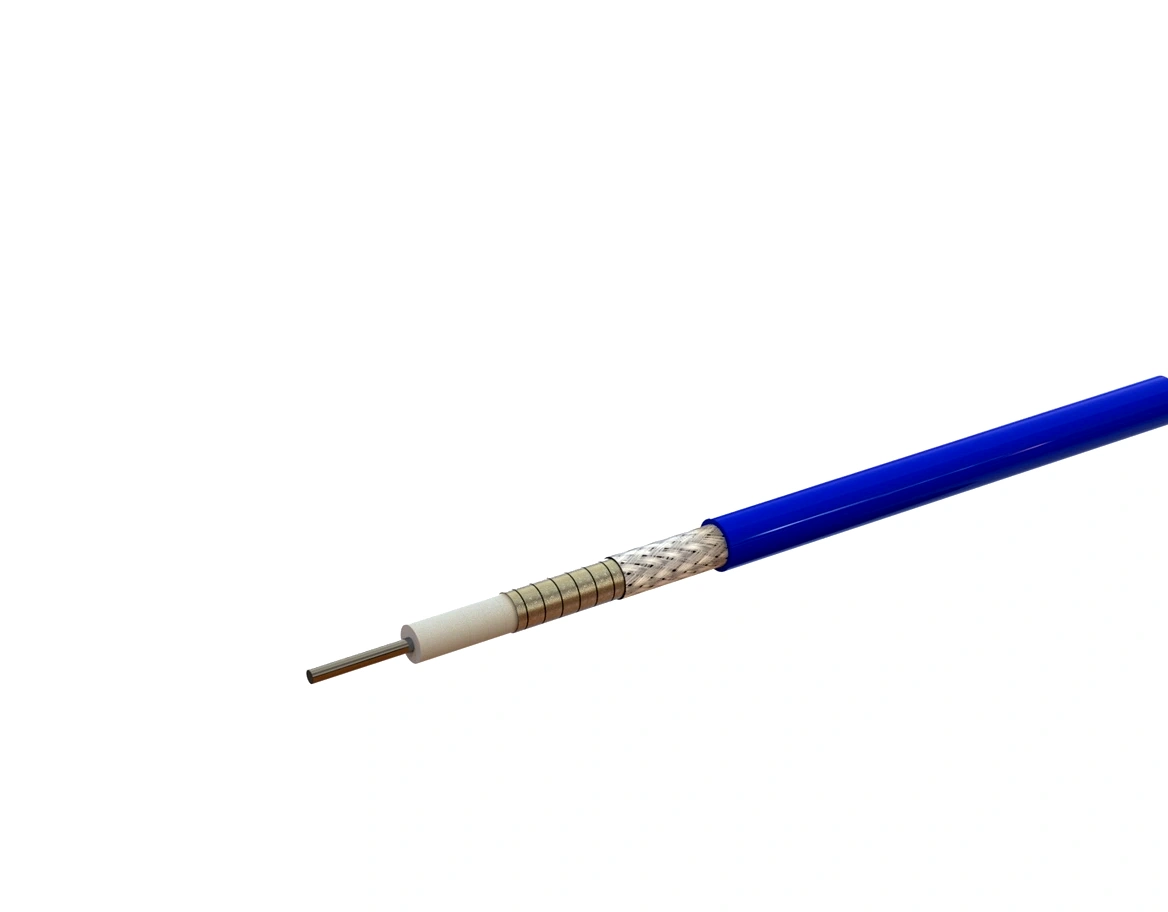

Encased in a 7.65 mm PFA jacket, the CFS760M cable offers superior chemical resistance, abrasion protection, and long-term flexibility. Its dual silver-plated copper shielding ensures > 90 dB shielding effectiveness, minimizing electromagnetic interference and maintaining consistent phase accuracy under movement. With a 38 mm single-bend radius, 76 mm repeated-bend radius, and 137 g/m weight, it provides optimal handling characteristics for dynamic test setups while maintaining electrical integrity at up to 2500 VDC voltage withstand.

Applications Requiring High Power and Mechanical Flexibility

The CFS760M ultra-low-loss coaxial cable is ideal for vector network analyzer (VNA) systems, radar validation, satellite component testing, and 5 G signal analysis requiring low attenuation and high phase stability. Its stranded conductor design provides added flexibility compared with solid-core cables of similar size, making it particularly suited for applications where cables undergo frequent repositioning. For additional models in various diameters and performance levels, see the Precision Test Coaxial Cable Series by Mechanc.

Manufactured by Mechanc Shanghai Information Technology Co., Ltd., the CFS760M ultra-low-loss precision test coaxial cable combines high power handling, flexible design, and verified REACH and RoHS compliance to deliver long-term precision and durability in advanced RF and microwave measurement applications.
