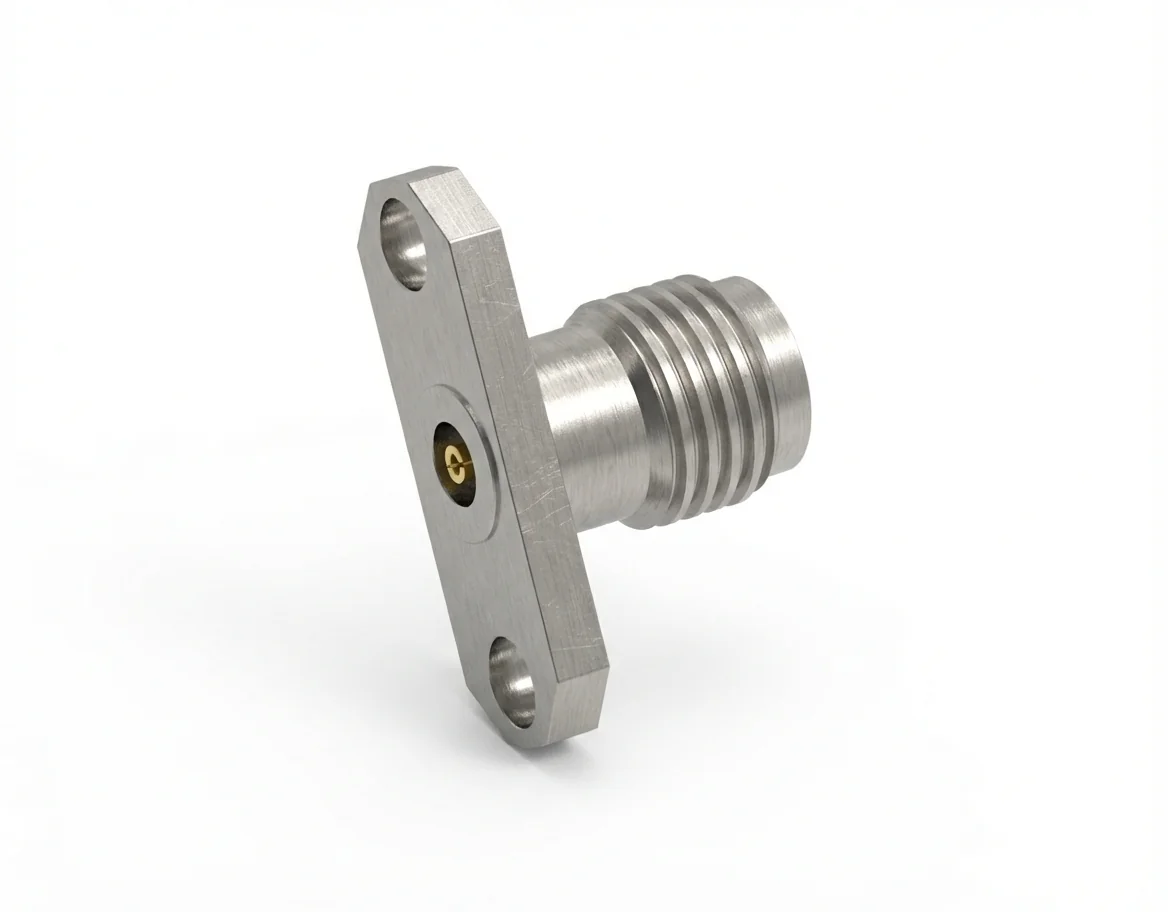

Connecteur RF 2,92 mm femelle à bride 2 trous – remplaçable sur site, entraxe 12,22 mm, diamètre de broche 0,51 mm

Part No.

2.92-KFD20

Also:

1,0 mm mâle

In Stock

Lead time: 3–5 days (standard) · Custom: on request

2.92mmFemaleStraight2 Hole Flange

Quantity

Add to quote

Electrical & Mechanical Specifications

Part Number	2.92-KFD20
Series	2.92mm
Gender	Female
Body Style	Straight
Mount Method	2 Hole Flange
Attachment Method	Field Replaceable
Termination Type	Field Replaceable
Frequency Max	40 GHz
Impedance	50 Ω
Max Operating Temperature	+165°C
Connector 1	1,0 mm mâle
Connector 2	1,0 mm mâle

Product Description

2.92mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD20

The 2.92 mm female 2-hole flange mount RF connector with a 0.51 mm pin and 12.22 mm hole spacing is built for heavy-duty testing applications up to 40 GHz where stability and repeatability are essential. This field-replaceable connector delivers durable mechanical retention and consistent broadband performance.

Electrical Performance and Repeatability

Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 2-hole flange mount RF connector offers low-loss transmission and exceptional return-loss control for high-power testing.

Construction and Compliance

Precision-machined from stainless steel with gold-plated beryllium copper contacts, the 2.92 mm female flange connector is fully REACH and RoHS certified for environmental compliance and long-term durability.

Applications

Perfect for RF analyzers, microwave modules, and 2-hole flange mount connectors used in precision measurement systems.

Complementary Male Version

Pair with the 2.92 mm male 2-hole flange mount RF connector – Model 2.92-JFD20. Explore the complete 2.92 mm RF connector series in our RF Connector Catalog.
