Connecteur RF 2,92 mm mâle à bride 2 trous – remplaçable sur site, entraxe 12,22 mm, diamètre de broche 0,38 mm

Part No.

2.92-JFD18

Also:

1,0 mm mâle

In Stock

Lead time: 3–5 days (standard) · Custom: on request

2.92mmMaleStraight2 Hole Flange

Quantity

Add to quote

Electrical & Mechanical Specifications

Part Number	2.92-JFD18
Series	2.92mm
Gender	Male
Body Style	Straight
Mount Method	2 Hole Flange
Attachment Method	Field Replaceable
Termination Type	Field Replaceable
Frequency Max	40 GHz
Impedance	50 Ω
Max Operating Temperature	+165°C
Connector 1	1,0 mm mâle
Connector 2	1,0 mm mâle
Insertion Loss	<0.06 √F(GHz) dB

Product Description

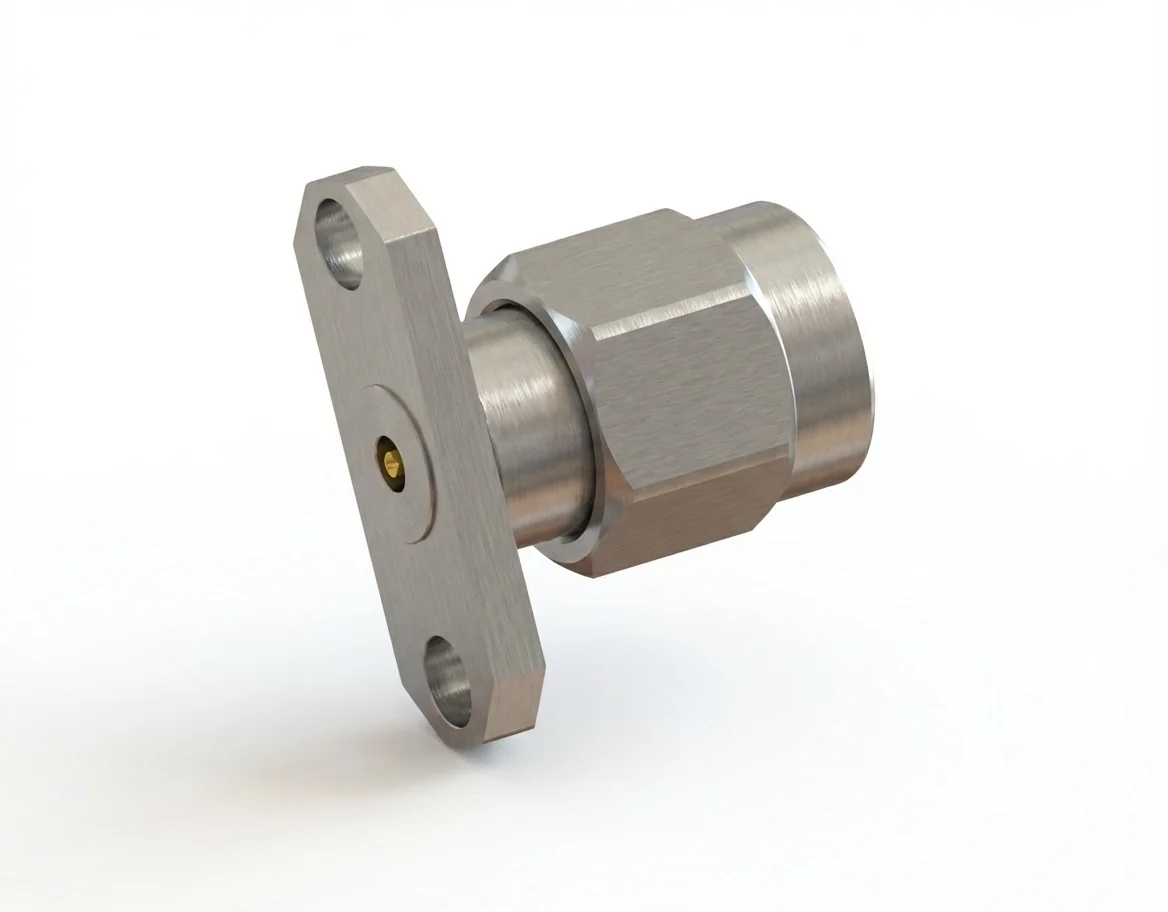

2.92mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-JFD18

The 2.92 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 12.22 mm hole spacing delivers high-stability connections for RF and microwave applications up to 40 GHz. This field-replaceable connector offers tight fit tolerances for precision test systems.

Broadband Signal Stability

Operating with VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm male 2-hole flange mount RF connector provides stable broadband transmission and low reflection even in compact mounts.

Durable Construction and Compliance

The 2.92 mm male flange connector is manufactured from stainless steel and beryllium copper with gold plating, and is fully REACH and RoHS compliant.

Applications and Integration

Perfect for miniaturized test adapters and 2-hole flange mount assemblies used in microwave analysis and measurement.

Mirror Female Connector

Pair with the 2.92 mm female 2-hole flange mount RF connector – Model 2.92-KFD18. Visit the 2.92 mm connector page in our RF Connector Catalog.
