3.5mm オス 4穴フランジマウント RF コネクタ – 現場交換可能、穴間隔 6.35mm、ピン径 0.38mm

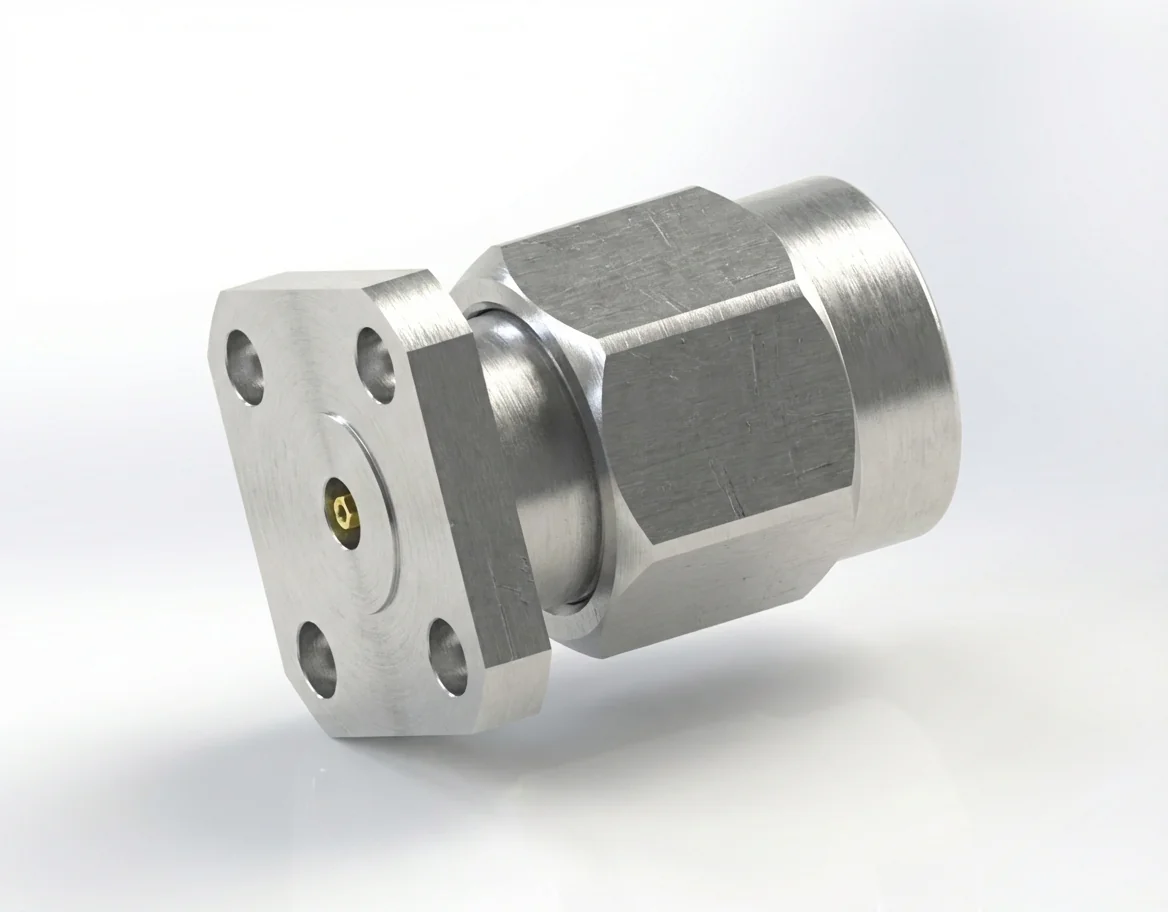

3.5mm Male 4-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD9

The 3.5 mm male 4-hole flange mount RF connector with a 0.38 mm pin and 6.35 mm hole spacing is precision-engineered for test systems requiring repeatable electrical interfaces. The field-replaceable construction simplifies maintenance while preserving mechanical integrity and phase stability.

Broadband Electrical Parameters

Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5 mm male connector ensures low return loss and high signal fidelity across DC to 26.5 GHz.

Durability and Compliance

Made from stainless steel with gold-plated beryllium copper contacts, it is corrosion-resistant and fully REACH and RoHS compliant.

Mechanical Integration

Optimized for 4-hole flange mount systems in laboratory analyzers and precision modules that require reliable re-mating capability.

Mirror Female Connector

Use alongside the 3.5 mm female 4-hole flange mount RF connector – Model 3.5-KFD9. Explore the 3.5 mm RF connector range in our RF Connector Catalog.
