SMA オス 2穴フランジマウント RF コネクタ – 現場交換可能、穴間隔 9mm、ピン径 0.51mm

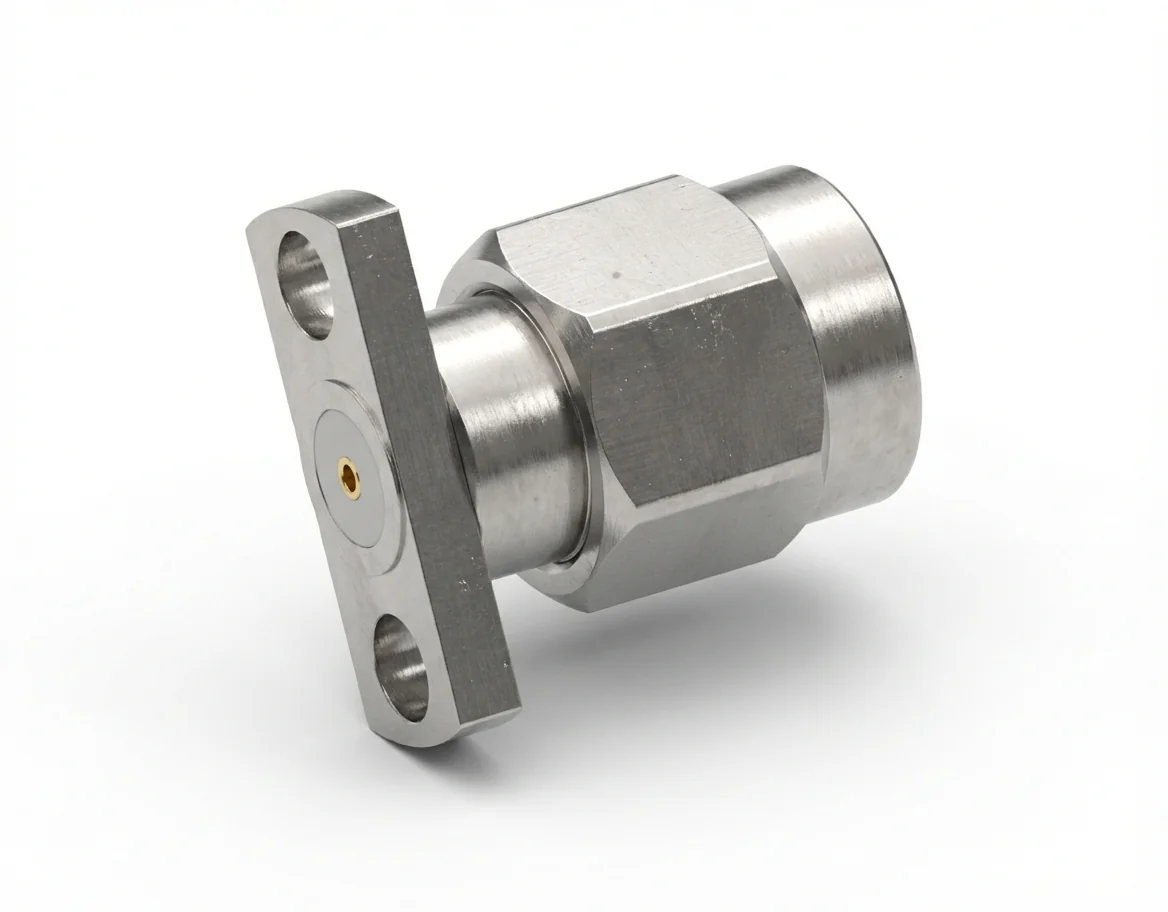

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD35

The SMA male 2-hole flange mount RF connector with a 0.51 mm pin and 9 mm hole spacing provides reliable broadband performance and robust mechanical stability for laboratory test modules. Its field-replaceable design ensures easy maintenance and long-term consistency.

Electrical Characteristics and Broadband Efficiency

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD35 connector supports accurate signal transmission up to 18 GHz. Find additional broadband models in our SMA connector catalog.

Material Quality and Compliance Certification

Made from stainless steel with gold-plated beryllium copper contacts, this connector provides outstanding electrical contact reliability. Fully REACH and RoHS compliant. See our flange-mount connector catalog for compatible designs.

Mechanical Form and Installation

The 2-hole flange mount layout (9 mm spacing) offers secure installation and reduced footprint, suitable for compact analyzers. Explore the RF connector catalog for matching SMA solutions.

Mirror Female Connector

Pair with the SMA female 2-hole flange mount RF connector – Model SMA-KFD35 for broadband matching and mechanical precision.
