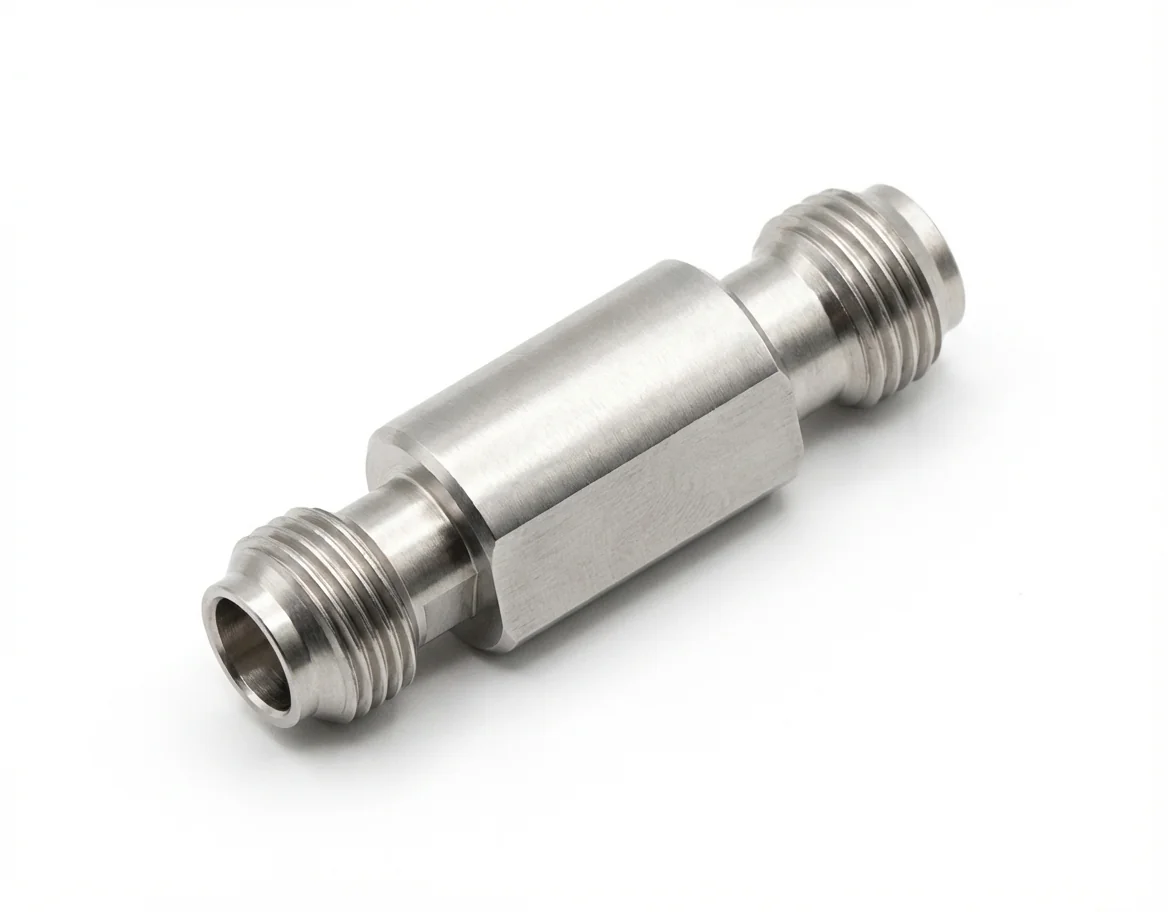

1.0mm Female to 1.0mm Female RF Adapter

The Mechanc 1.0mm Female to 1.0mm Female RF Adapter (Model 1.0-KK1) is engineered for precision performance in high-frequency signal environments. This straight in-series coaxial adapter connects two 1.0 mm male connectors, offering exceptional mechanical stability and electrical reliability. This adapter is ideal for use in vector network analyzer (VNA) calibration, 110 GHz metrology setups, and other precision RF test and measurement environments.

The 1.0-KK1 coaxial adapter supports frequencies up to 110 GHz and operates with a 50 Ohm impedance. It provides excellent RF performance, with a maximum VSWR of 1.3 and a maximum insertion loss of just 0.06 dB — ensuring minimal signal degradation even at the upper frequency range. Its straight structure allows for clean routing and consistent signal integrity across precision test benches and compact system designs.

Constructed from gold-plated beryllium copper, this 1.0mm to 1.0mm adapter ensures outstanding conductivity, wear resistance, and long-term reliability. The 1.0mm Female to 1.0mm Female RF adapter is insulated with PEI (Polyetherimide) for high thermal and dielectric strength. Fully RoHS and REACH compliant, Mechanc’s 1.0-KK1 coaxial adapter meets today’s strict environmental and safety standards.

As with all Mechanc RF components, this coaxial adapter can be fully customized to meet your project’s specific electrical, mechanical, or environmental requirements. Contact our engineering team to discuss tailored configurations for your application.
