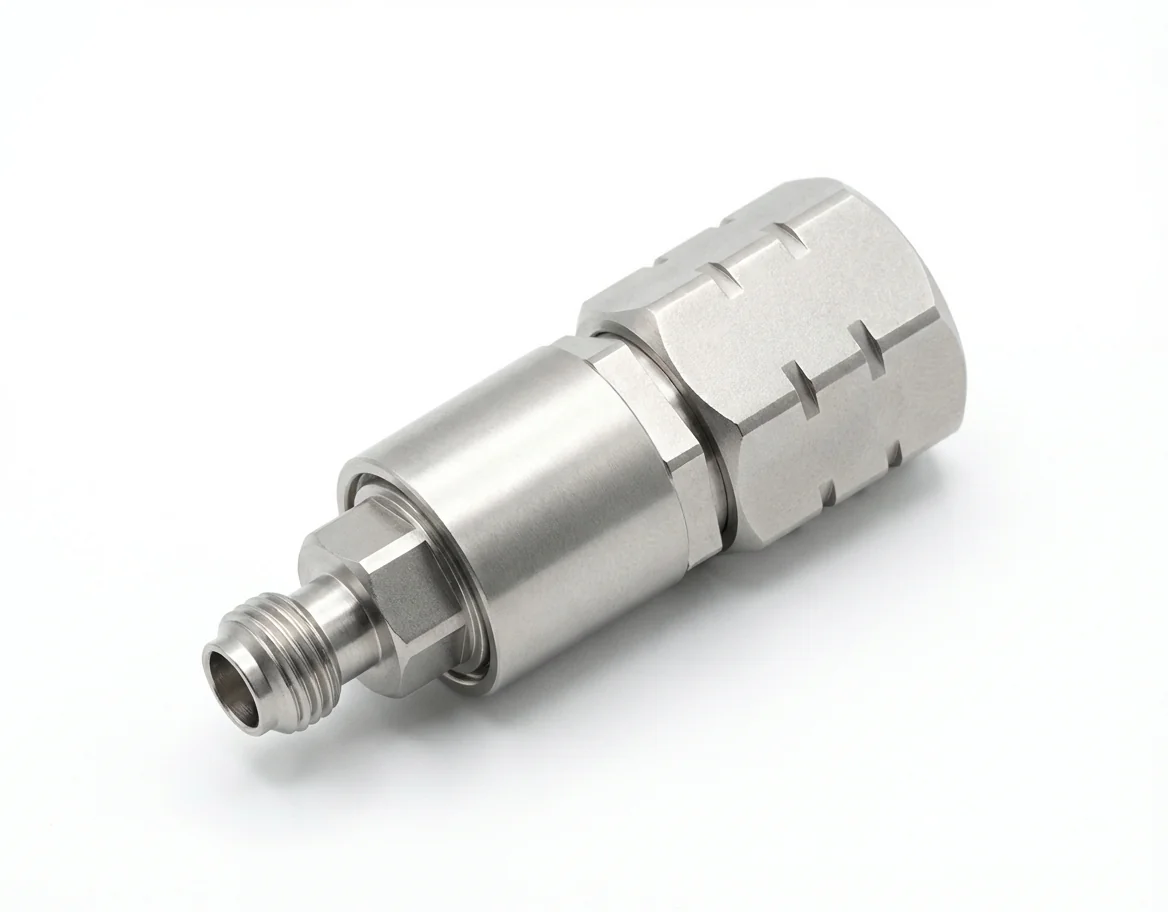

The 1.0mm Female to 1.85mm Male RF Adapter 1.0/1.85-KJ1 — also known as the 1.85mm Male to 1.0mm Female RF Adapter 1.85/1.0-JK1 — is engineered with precision to enable reliable connectivity in high-frequency RF systems. This between-series coaxial adapter offers a straight-body form factor, bridging 1.0mm female and 1.85mm male interfaces with excellent mechanical and electrical integrity.
Designed for use in environments where high-performance frequency transmission is critical, the 1.0/1.85-KJ1 coaxial adapter supports frequencies up to 67 GHz and maintains a standard 50 Ω impedance. This makes it ideal for both lab and field applications, including satellite-grade RF interconnects used in space launch systems, and 5G infrastructure testing and antenna module validation. The 1.0mm Female to 1.85mm Male RF Adapter is also perfectly suited for RF connectivity within telecom and next-gen wireless networks where low insertion loss and minimal signal reflection are essential.
The adapter boasts an insertion loss of less than 0.5 dB and a VSWR of less than 1.25 at 67 GHz, ensuring exceptional signal fidelity across the operating range. Its internal conductor is made of beryllium bronze with gold plating, while the outer conductor is stainless steel with passivation, offering excellent corrosion resistance and long-term durability.
The operating temperature range of -55°C to +165°C enables consistent performance in extreme environments, whether in high-altitude RF test benches, or rugged telecom deployments. Its robust construction also allows for easy installation in tightly packed assemblies or mobile testing kits.
In line with Mechanc’s commitment to quality and safety, the 1.0mm Female to 1.85mm Male RF Adapter 1.0/1.85-KJ1 adapter meets REACH and RoHS standards. This adapter is also available in customized configurations for integration into specialized RF systems. Choosing Mechanc means selecting industry-leading RF adapters designed for performance, reliability, and adaptability across aerospace, telecom, and test & measurement sectors.
