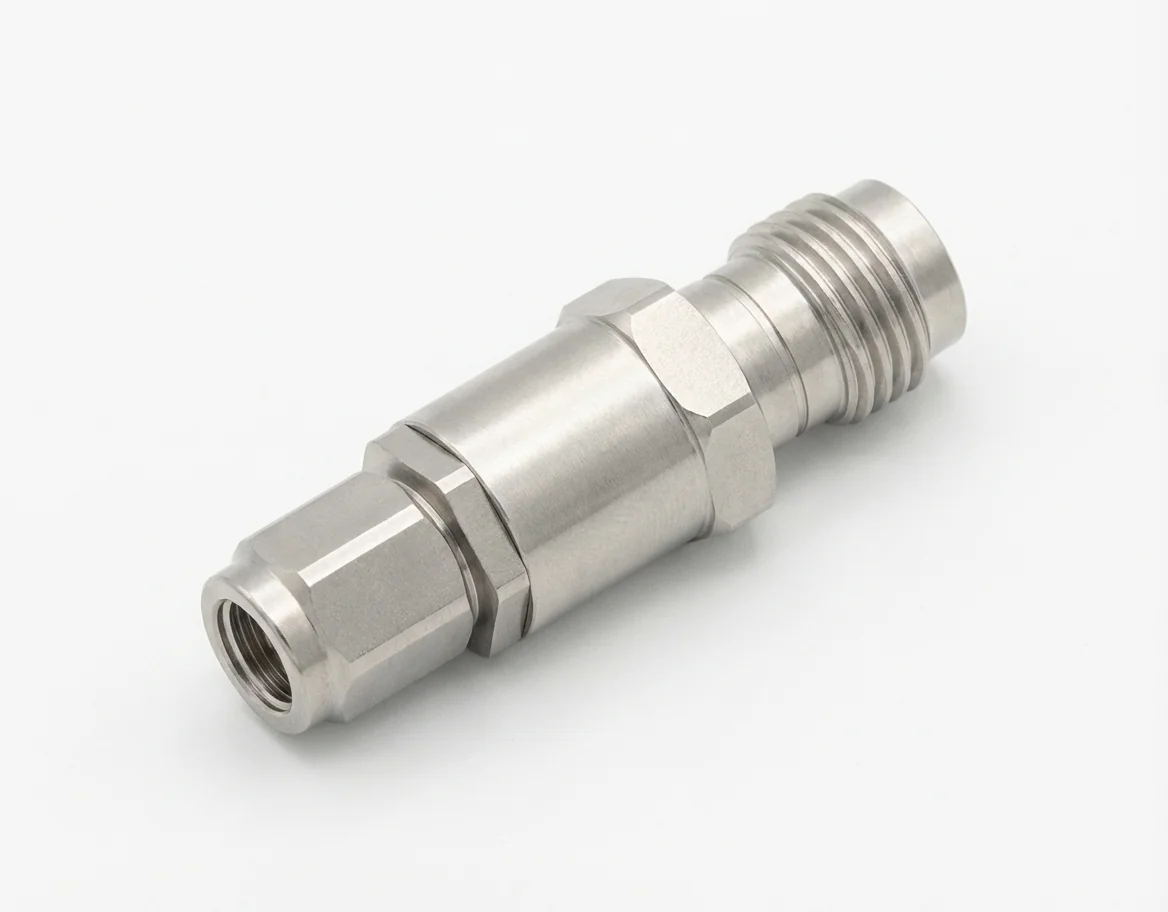

The 1.0mm Male to 2.4mm Female RF Adapter 1.0/2.4-JK1, also available as 2.4mm Female to 1.0mm Male RF Adapter 2.4/1.0-KJ1, is designed for high-frequency RF connectivity between 1.0mm male and 2.4mm female interfaces. This precision-engineered adapter is essential in systems that require minimal signal degradation while transitioning between connector types across multiple industry-grade RF platforms.
With an operational range reaching up to 50 GHz and a 50 Ω impedance, the 1.0/2.4-JK1 coaxial adapter is ideal for demanding applications such as RF interconnects for energy systems and industrial sensors. Its high durability and compact form factor also make it perfectly suited for use in ADAS testing systems, supporting automotive radar validation, signal transmission, and real-time response testing. Additionally, this between-series RF adapter is regularly deployed in end-of-line quality verification environments, where high-frequency continuity and performance metrics are critical for compliance and certification workflows.
The 1.0mm male to 2.4mm female RF adapter maintains an insertion loss of less than 0.5 dB and a VSWR below 1.25 at 50 GHz, delivering excellent signal integrity and system performance. Its gold-plated beryllium bronze inner conductor and passivated stainless steel housing ensure corrosion resistance and long-term mechanical reliability, even under harsh environmental or test conditions.
This 1.0mm Male to 2.4mm Female RF Adapter operates within a temperature range of -55°C to +165°C and complies fully with REACH and RoHS directives, aligning with Mechanc’s commitment to quality, safety, and sustainability.
As with all Mechanc RF solutions, custom versions of the 1.0mm to 2.4mm male-to-female coaxial adapters are available to meet specific project or system requirements, delivering uncompromising accuracy and performance.
