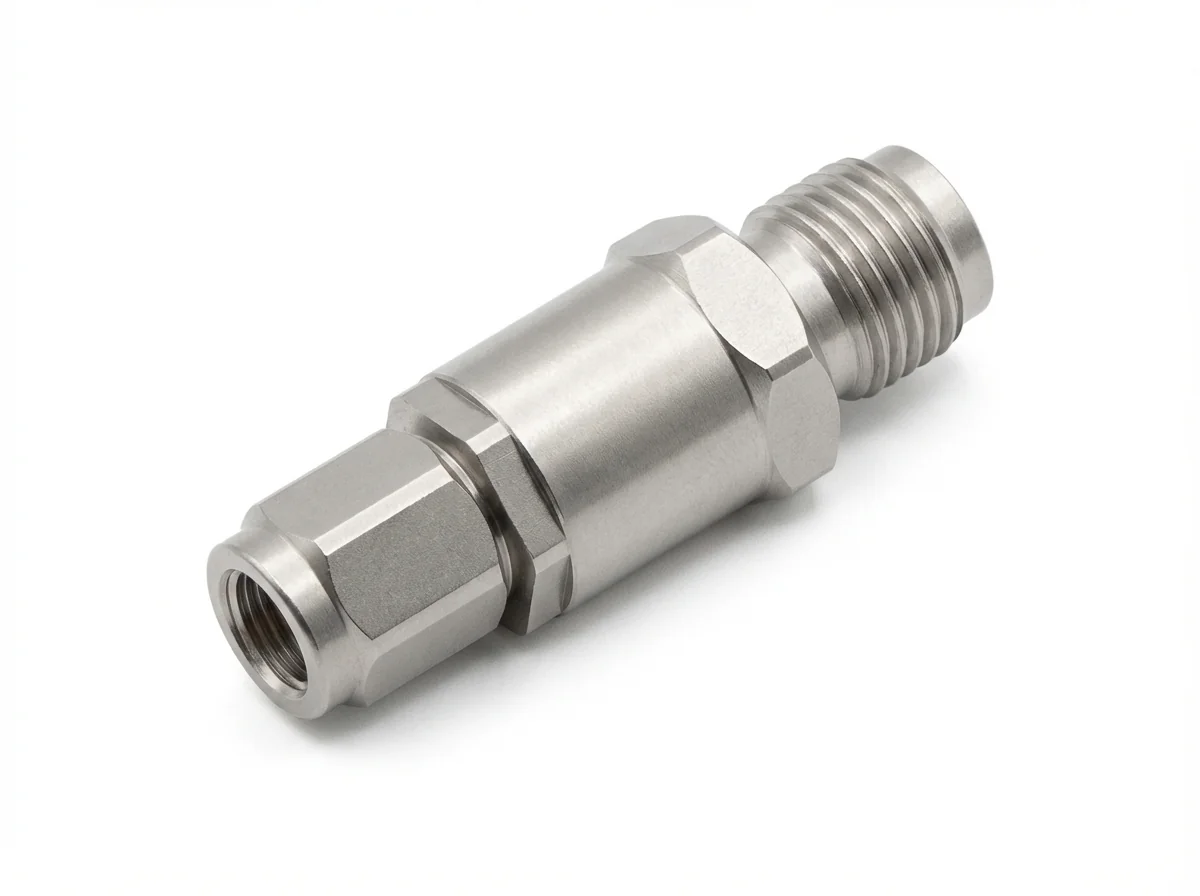

1.0mm Male to 2.92mm Female RF Adapter
| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Connection Type
Frequency Max
Connector 1
Connector 2
Body Style
VSWR Max
Insertion Loss Max
The 1.0mm Male to 2.92mm Female RF Adapter 1.0/2.92-JK1, also marketed as 2.92mm Female to 1.0mm Male RF Adapter 2.92/1.0-KJ1, is a high-performance between-series adapter engineered for high-frequency RF systems that require reliable transition from 1.0mm male to 2.92mm female interfaces. This precision adapter is a trusted component in metrology, satellite communications, and radar signal chains where signal fidelity and connector compatibility are critical.
Supporting frequencies up to 40 GHz with a 50 Ω impedance, the 1.0/2.92-JK1 coaxial adapter is widely used in high-frequency solutions for unmanned aircraft, where airborne RF modules demand ultra-compact, low-loss interconnection. The adapter is also key in microwave backhaul links within next-generation telecom infrastructure, where reliable transition between waveguides and RF chains supports long-distance, high-bandwidth communication. In the lab, it integrates seamlessly into end-of-line quality verification stations, where high-speed RF modules are tested for compliance and performance integrity before deployment.
This 1.0mm Male to 2.92mm Female RF Adapter delivers consistent performance with an insertion loss of less than 0.5 dB and a VSWR below 1.15 at 40 GHz. It features a gold-plated beryllium bronze inner conductor and a stainless steel outer housing with passivation, ensuring mechanical durability, corrosion resistance, and long-term RF stability.
With an operating temperature range from -55°C to +165°C, the 1.0mm male to 2.92mm female RF adapter is suitable for both field installations and precision lab environments. Its rugged construction and precise tolerances allow it to maintain performance under thermal, vibrational, and mechanical stress.
Fully REACH and RoHS compliant, this adapter reflects Mechanc’s commitment to environmental responsibility and global standards compliance. Custom versions of the 1.0/2.92-JK1 adapter are available to fit your specific design parameters, whether in aerospace, defense, or telecom innovation.
