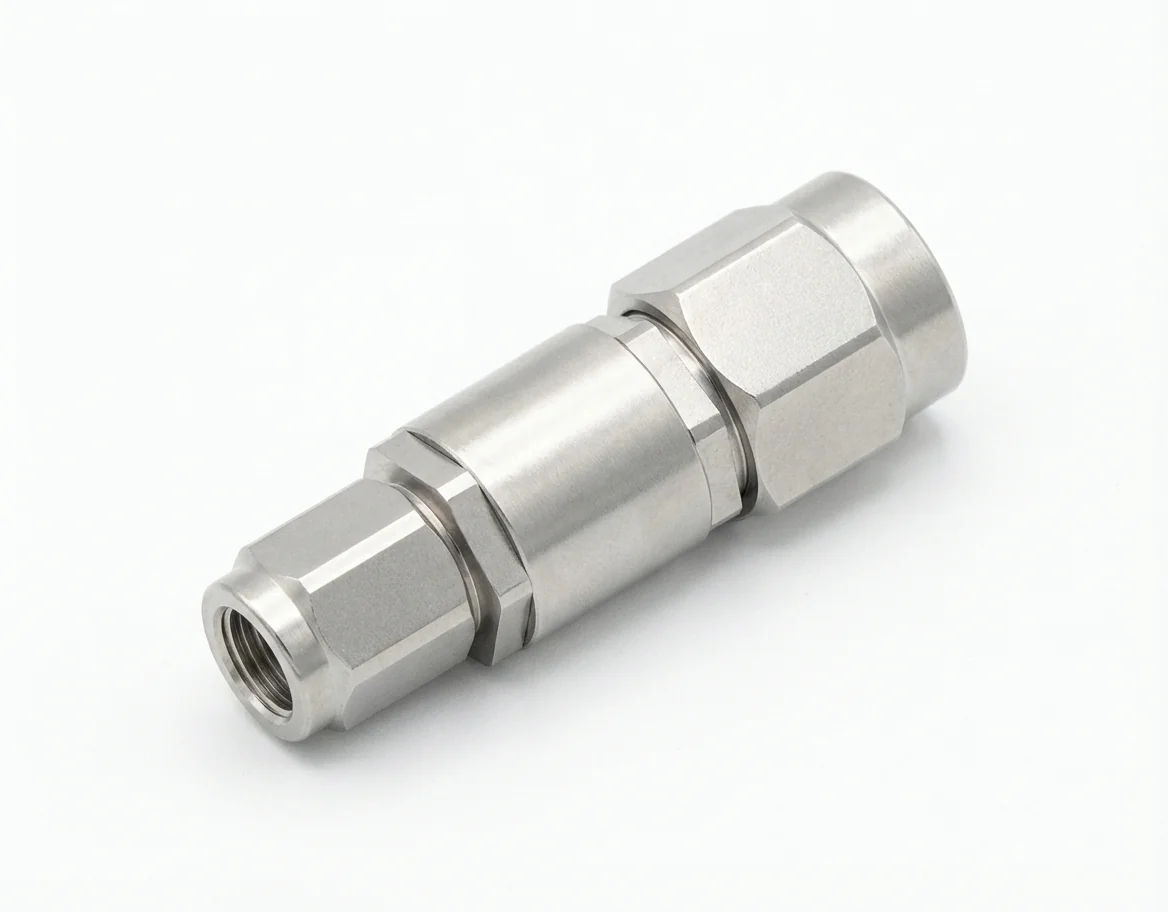

1.0mm Male to 2.92mm Male RF Adapter
| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Connection Type
Frequency Max
Connector 1
Connector 2
Body Style
VSWR Max
Insertion Loss Max
The 1.0mm Male to 2.92mm Male RF Adapter 1.0/2.92-JJ1, also referred to as 2.92mm Male to 1.0mm Male RF Adapter 2.92/1.0-JJ1, is precision-engineered for high-frequency applications requiring robust between-series connectivity. This male-to-male configuration is particularly well-suited for lab-grade testing setups and high-speed signal transmission systems where signal consistency and mechanical reliability are essential.
Operating efficiently up to 40 GHz with a characteristic impedance of 50 Ω, the 1.0/2.92-JJ1 coaxial adapter is a top choice for designers and engineers working on RF interconnects for energy systems and industrial sensors, where rugged build quality and high signal fidelity are mandatory. It is also widely utilized in satellite ground qualification testing, where component performance must be validated under highly controlled, simulated mission conditions. Additionally, it supports advanced component performance evaluation in RF labs, where accuracy and repeatability are non-negotiable.
The 1.0mm Male to 2.92mm Male RF Adapter offers outstanding electrical characteristics, including an insertion loss of less than 0.5 dB and a VSWR below 1.15 at 40 GHz. Its inner conductor is made from beryllium bronze with gold plating, and the outer conductor is passivated stainless steel, ensuring exceptional conductivity, corrosion resistance, and mechanical integrity over time.
Capable of performing reliably across a wide temperature range of -55°C to +165°C, the 1.0mm Male to 2.92mm Male Adapter 1.0/2.92-JJ1 is fit for deployment in both field and laboratory environments. Whether used in thermal stress testing setups or mission-critical systems, this adapter delivers consistent, uncompromised results.
Fully REACH and RoHS compliant, the 1.0mm Male to 2.92mm Male RF Adapter upholds Mechanc’s standards for sustainability, safety, and product reliability. Custom configurations are available on request, ensuring seamless integration into your specialized RF infrastructure projects.
