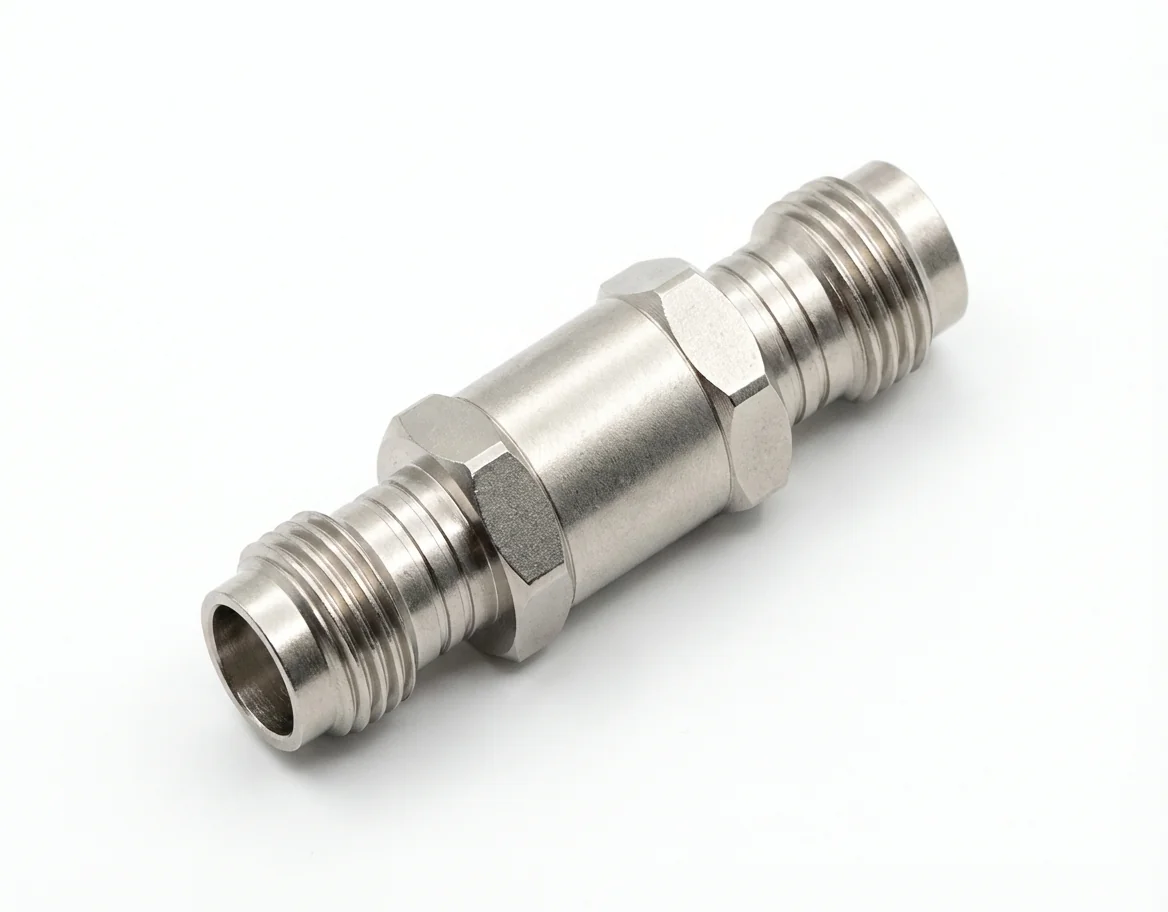

1.85mm Female to 1.85mm Female RF Adapter
| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Connection Type
Frequency Max
Connector 1
Connector 2
Body Style
VSWR Max
Insertion Loss Max
The 1.85mm Female to 1.85mm Female RF Adapter 1.85-KK1 is a precision-engineered straight adapter designed for seamless coupling between two 1.85mm female ports in ultra-high-frequency systems. Supporting frequencies up to 65 GHz with exceptional electrical stability, it is ideal for demanding test environments, advanced communication systems, and aerospace-grade RF interconnects.
Engineered for superior performance in mission-critical systems, the 1.85-KK1 coaxial adapter is frequently used in controlled lab testing environments, where signal fidelity is paramount during system benchmarking and qualification routines. Its high-frequency compatibility also supports advanced geosynchronous satellite interfaces, enabling stable and accurate signal paths in both payload testing and in-orbit systems. Additionally, the adapter plays a crucial role in 5G module interface development, ensuring dependable interconnection for signal routing at mmWave frequencies.
This 1.85mm straight coaxial adapter features a passivated stainless steel outer housing and a gold-plated beryllium copper center conductor, delivering robust mechanical strength and excellent conductivity. With a maximum VSWR of 1.25:1 and insertion loss under 0.4 dB, it ensures high signal purity and minimal degradation even under high-frequency load.
The 1.85mm Female to 1.85mm Female RF Adapter 1.85-KK1 is designed for durability, withstanding temperatures from -55 °C to +165 °C and repeated mating cycles without performance loss. Its low-profile form factor allows for easy integration into dense test environments, and it is fully compliant with RoHS and REACH standards to meet global safety and environmental regulations.
Mechanc offers the 1.85mm Female to 1.85mm Female RF Adapter in custom lengths and form factors to accommodate specialized systems. Whether applied in mmWave testbeds or spaceborne payloads, this adapter represents the reliability and engineering excellence that defines Mechanc’s full suite of RF interconnection solutions.
