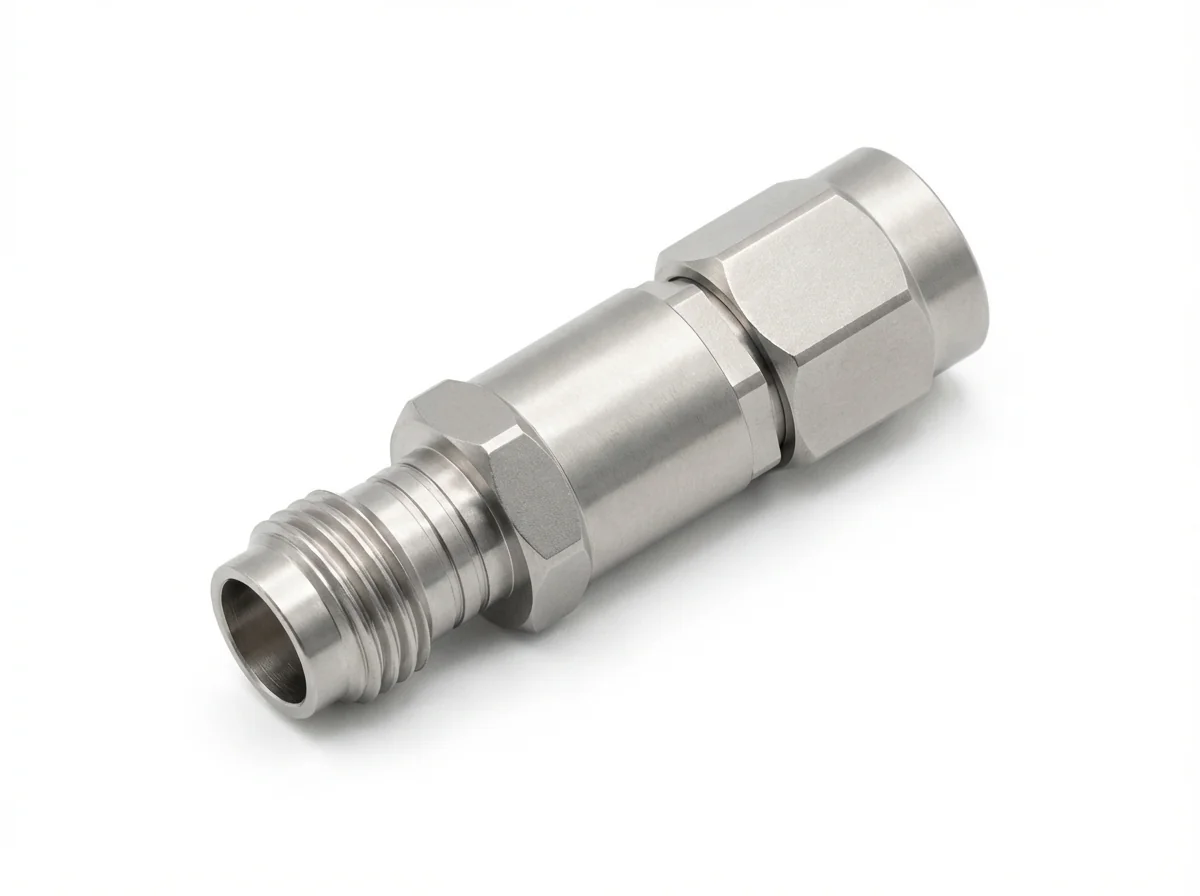

1.85mm Female to 2.92mm Male RF Adapter

The 1.85mm Female to 2.92mm Male RF Adapter 1.85/2.92-KJ1, also known as the 2.92mm Male to 1.85mm Female RF Adapter 2.92/1.85-JK1, offers a precision-engineered solution for seamless connectivity between 1.85mm and 2.92mm interfaces. Designed for high-frequency performance and mechanical robustness, this between-series adapter delivers reliable signal integrity in demanding RF systems.

With a maximum operating frequency of 40 GHz and a 50 Ω impedance, the 1.85/2.92-KJ1 coaxial adapter is tailored for use in environments that require excellent return loss and consistent signal transmission. It performs with a VSWR below 1.12 and insertion loss under 0.35 dB at 40 GHz. This adapter is ideal for a range of advanced systems, such as microwave backhaul links, low-intermodulation test setups, and combat aircraft RF networks.

The adapter features a beryllium copper inner conductor with gold plating for superior conductivity and a passivated stainless steel outer shell that ensures corrosion resistance and mechanical durability. Engineered to function reliably across a wide temperature range of -55°C to +165°C, the 1.85mm Female to 2.92mm Male RF Adapter is built to perform in harsh environments and temperature-sensitive applications.

Fully compliant with REACH and RoHS regulations, the 1.85/2.92-KJ1 between-series adapter supports responsible manufacturing practices while delivering superior electrical performance. Each unit undergoes stringent quality control to meet Mechanc’s high standards in precision RF connectivity.

Mechanc also provides customizable versions of the 1.85mm Female to 2.92mm Male RF Adapter, with options for special mechanical tolerances, custom plating, and performance enhancements to meet your specific integration requirements in aerospace, telecom, defense, and lab testing systems.
