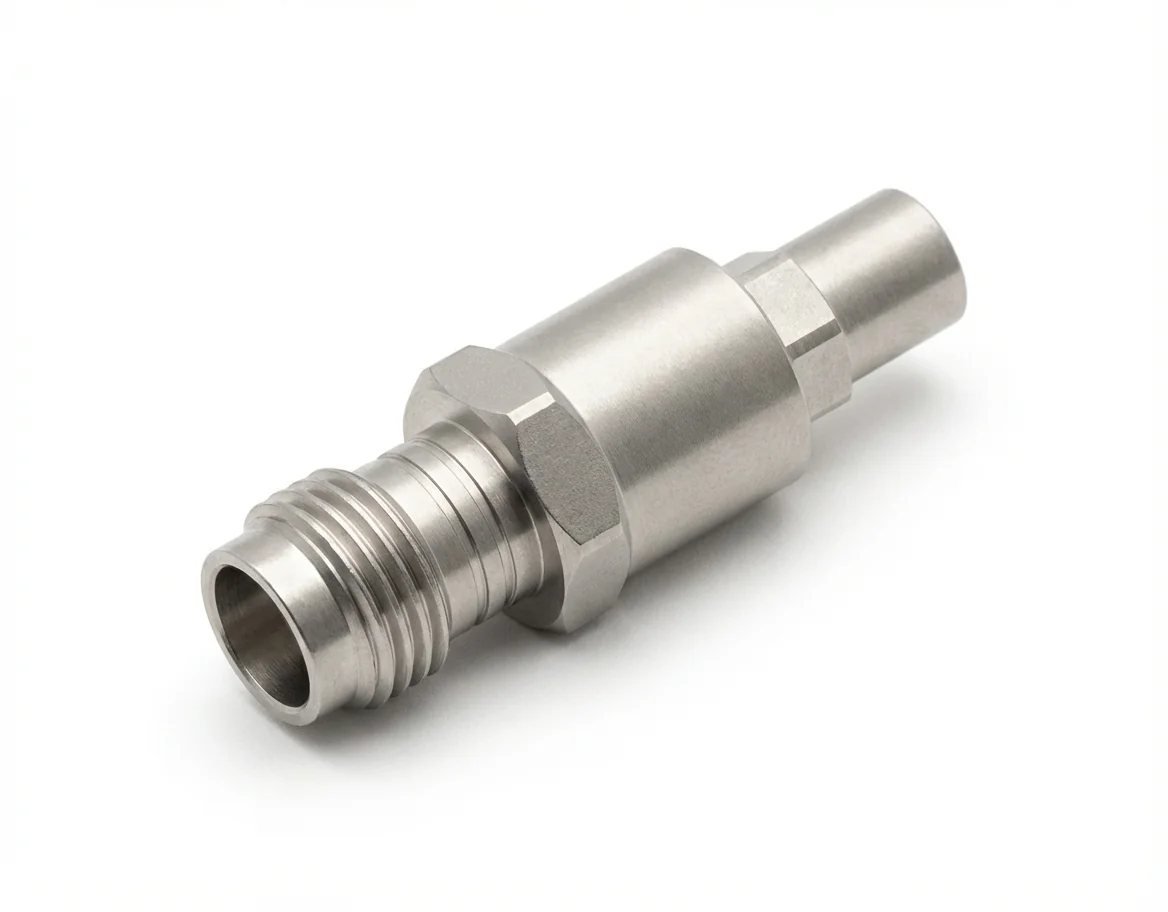

1.85mm Female to SSMP Male RF Adapter

The 1.85mm Female to SSMP Male RF Adapter – 1.85/SSMP-KJ1, also referred to as SSMP Male to 1.85mm Female RF Adapter – SSMP/1.85-JK1 is precision-engineered to address the stringent requirements of high-frequency RF systems. This 1.85mm straight adapter excels in ensuring a secure and reliable connection between 1.85mm female and SSMP male interfaces.

Ideal for applications demanding high signal integrity, this 1.85mm female to SSMP male RF adapter boasts a robust mechanical build and provides superior electrical performance across a frequency range of up to 67 GHz, with an inherent 50 Ω impedance, making it versatile for a wide range of sophisticated RF systems.

Key features of this 1.85mm female to SSMP male coaxial adapter also include an insertion loss of less than 0.5 dB at 67 GHz and a VSWR of less than 1.35 at the same frequency, ensuring minimal signal degradation.

Constructed from high-quality materials, including beryllium bronze/gold plated contacts and a stainless steel body with passivation, the 1.85mm female to SSMP male RF adapter – 1.85/SSMP-KJ1 is built to withstand challenging environmental conditions, operating reliably within a temperature range of -55°C to +165°C.

Its compact SSMP interface makes this adapter particularly well suited for use in space-constrained RF modules and densely integrated testing setups such as those found in controlled lab testing and component performance evaluation. It is also increasingly used in high-frequency subsystems supporting LEO payload RF interconnects, where both miniaturization and performance are critical.

Fully compliant with REACH and RoHS environmental standards, the 1.85mm female to SSMP male adapter 1.85/SSMP-KJ1 demonstrates Mechanc’s commitment to sustainability and user safety. Mechanc also offers this 1.85mm to SSMP adapter in various configurations, enabling customization to meet specific operational requirements.
