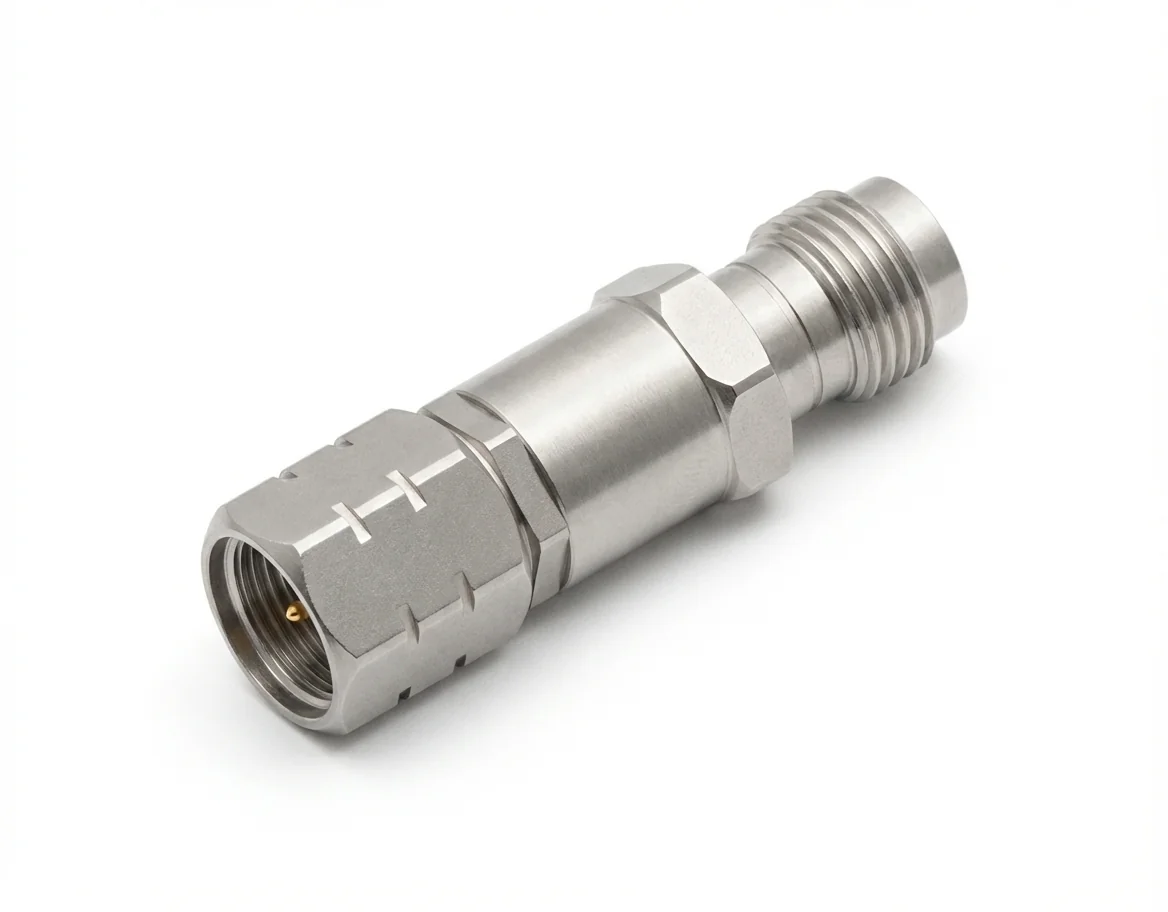

1.85mm Male to 2.4mm Female RF Adapter

The 1.85mm Male to 2.4mm Female RF Adapter 1.85/2.4-JK1 – also referred to as 2.4mm Female to 1.85mm Male RF Adapter 2.4/1.85-KJ1 designed to deliver seamless and precise connectivity between 1.85mm male and 2.4mm female interfaces. With its high-frequency performance and rugged construction, this between-series adapter is a reliable solution for RF engineers operating in challenging test and measurement or field environments.

Rated for up to 50 GHz and supporting 50 Ω impedance, this 1.85mm to 2.4mm adapter ensures optimal signal transmission across a wide range of high-frequency systems. It is ideally suited for use in microwave backhaul links, component evaluation setups, and end-of-line RF quality verification stations. With an insertion loss typically under 0.45 dB and a VSWR of less than 1.25 at 50 GHz, the 1.85/2.4-JK1 offers robust performance in applications where precision and repeatability are essential.

This 1.85mm Male to 2.4mm Female RF Adapter is constructed using premium materials: a gold-plated beryllium copper inner conductor and passivated stainless steel outer conductor provide mechanical durability, excellent conductivity, and superior resistance to corrosion and thermal stress. The design supports an extended operating temperature range of -55°C to +165°C, meeting the demands of both lab and outdoor deployments.

Fully compliant with REACH and RoHS directives, the 1.85mm Male to 2.4mm Female RF Adapter reflects Mechanc’s commitment to sustainability and high safety standards in all its precision RF components. Each adapter is tested to meet stringent performance criteria and ensure long-term stability in demanding environments.

Mechanc also offers custom solutions for the 1.85/2.4-JK1 straight coaxial adapter and other 1.85mm to 2.4mm between-series adapters, allowing RF professionals to specify mechanical tolerances and electrical performance based on specific system requirements.
