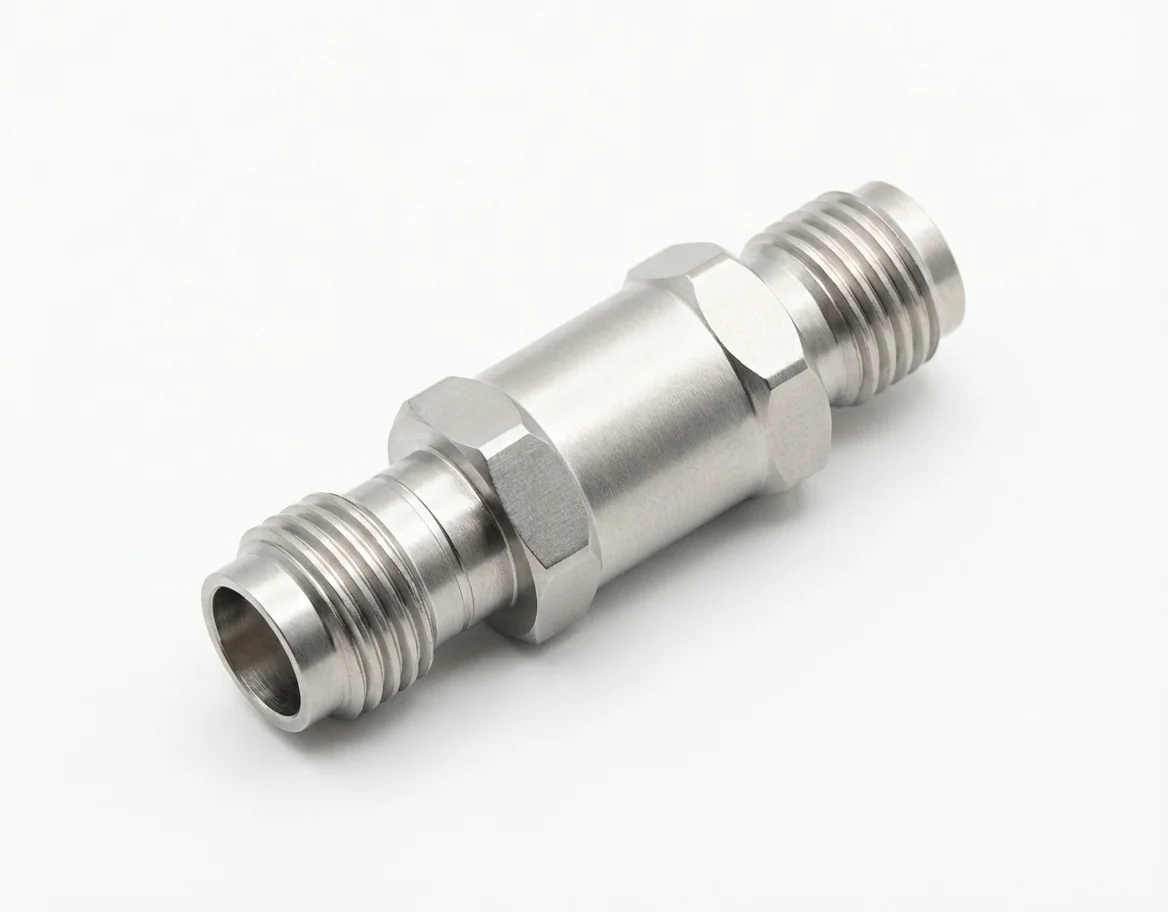

2.4mm Female to 3.5mm Female RF Adapter

The 2.4mm Female to 3.5mm Female RF Adapter – 2.4/3.5-KK1, also referred to as 3.5mm Female to 2.4mm Female RF Adapter – 3.5/2.4-KK1, is a precision coaxial adapter designed to support seamless connectivity between 2.4mm and 3.5mm female interfaces. This straight adapter enables signal compatibility across legacy and precision-grade RF systems while ensuring low signal degradation in high-frequency environments.

Capable of operating up to 26.5 GHz with a stable 50 Ω impedance, the 2.4mm Female to 3.5mm Female RF Adapter is well suited for RF component validation, lab test setups, and low-loss signal routing in mixed-connector systems. Its durable and compact design makes it ideal for integration into component performance evaluation environments, automotive radar validation labs, and satellite ground qualification testing platforms.

With insertion loss ≤0.3 dB and VSWR ≤1.12 at 26.5 GHz, this adapter ensures excellent electrical performance, supporting stable signal transmission and minimal reflection across a wide frequency range. The 2.4mm Female to 3.5mm Female RF Adapter is especially valuable for bridging high-frequency precision instruments with widely used 3.5mm connector systems.

Constructed with a robust passivated stainless steel body and gold-plated beryllium copper contacts, this 2.4mm between-series adapter provides reliable long-term performance under mechanical stress and frequent mating cycles. It operates within a wide temperature range of -55°C to +165°C, making it suitable for both laboratory and industrial use.

Fully compliant with RoHS and REACH standards, Mechanc’s 2.4mm to 3.5mm coaxial adapter – 2.4/3.5-KK1 – is a trusted solution for telecom, aerospace, automotive, and RF test environments. Custom variants are available to support specific connector configurations and system requirements.
