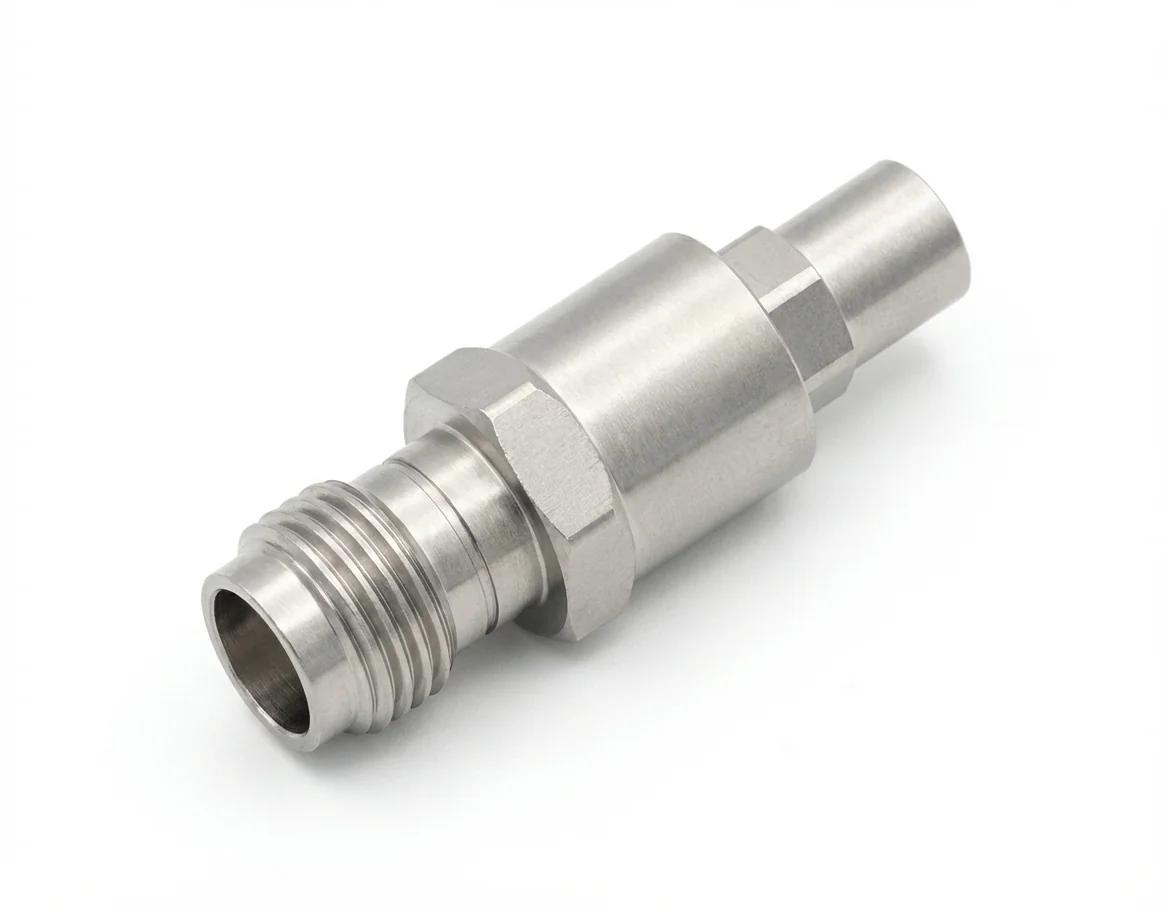

2.4mm Female to SSMP Male RF Adapter

The 2.4mm Female to SSMP Male RF Adapter – 2.4/SSMP-KJ1, also referred to as SSMP Male to 2.4mm Female RF Adapter – SSMP/2.4-JK1, is a high-frequency coaxial adapter designed for secure, compact interconnection between a 2.4mm female and an SSMP male interface. This straight-body adapter enables high-performance signal transitions in tightly integrated RF modules and mmWave systems.

With a maximum operating frequency of 50 GHz and a precise 50-ohm impedance, the 2.4mm Female to SSMP Male RF Adapter is ideally suited for applications requiring low-loss, high-density connectivity. It performs reliably in 5G mmWave module interfaces, satellite ground systems, and thermal stress simulation labs where compactness and signal integrity are critical.

Delivering VSWR ≤1.25 and insertion loss ≤0.5 dB at 50 GHz, this 2.4mm between-series adapter maintains signal quality and minimizes reflections across its full frequency range. The 2.4mm Female to SSMP Male RF Adapter is a practical choice for engineers requiring robust, miniaturized connectivity between instrumentation-grade and board-level RF components.

Built from high-grade passivated stainless steel and featuring gold-plated beryllium copper contacts, this 2.4mm to SSMP coaxial adapter ensures excellent electrical contact, mechanical durability, and corrosion resistance. With a wide operating temperature range from -55°C to +165°C, it meets the demands of both lab-based and mobile field systems.

RoHS and REACH compliant, the 2.4mm Female to SSMP Male coaxial adapter offers precision performance for compact RF and microwave applications. Custom versions of the 2.4mm Female to SSMP Male RF Adapter can be provided upon request to meet the specific mechanical or electrical requirements of your system integration.
