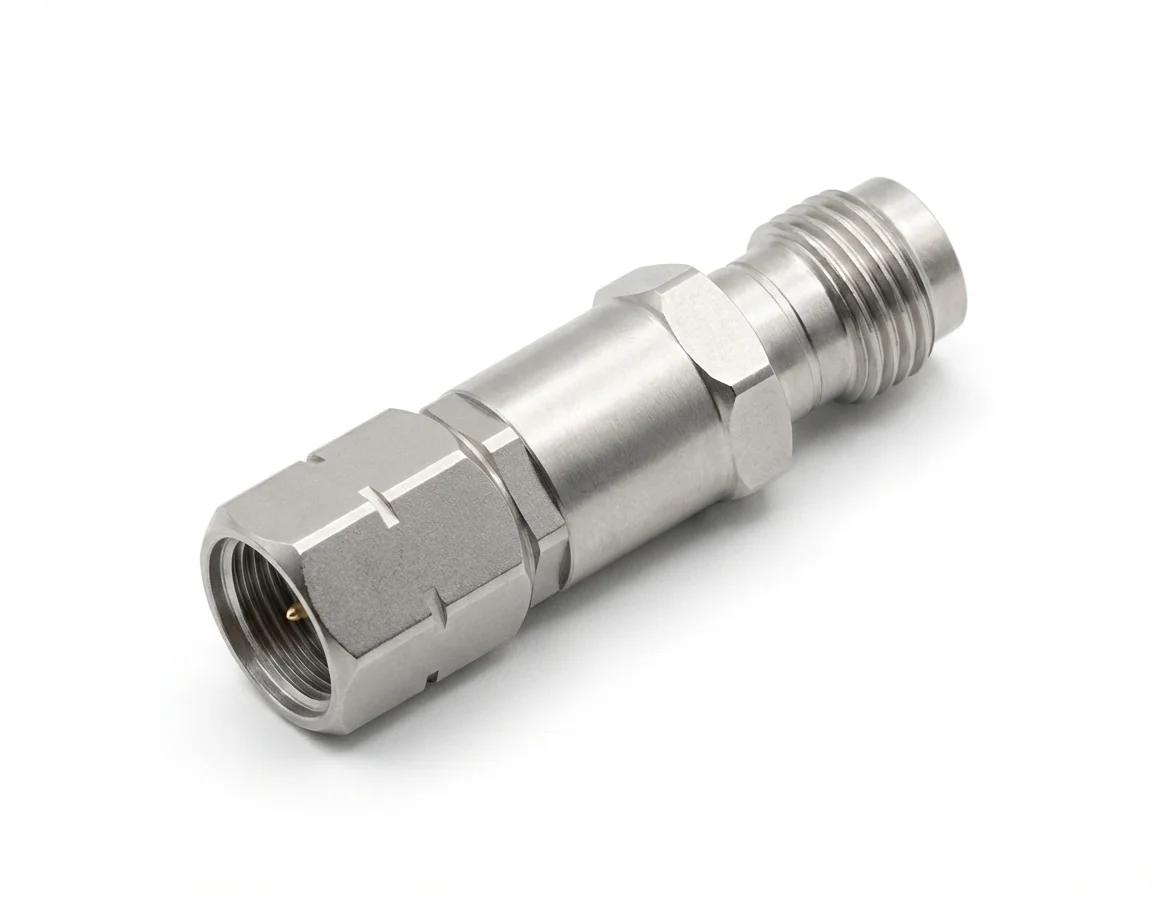

2.4mm Male to 2.4mm Female RF Adapter

The 2.4mm Male to 2.4mm Female RF Adapter – 2.4-JK1 is a precision coaxial RF adapter engineered for high-frequency signal transmission where seamless interface conversion between male and female 2.4mm connectors is required. Its straight design and rugged construction make it ideal for use in demanding RF testing, prototyping, and signal routing environments.

With a wide operational bandwidth up to 50 GHz and a standard 50 Ω impedance, the 2.4mm Male to 2.4mm Female RF Adapter is designed to ensure excellent signal integrity in high-performance applications. It is especially suited for sectors such as ADAS testing systems and non-contact RF interface solutions, where robust connectivity and minimal signal loss are essential.

The 2.4mm Male to 2.4mm Female RF Adapter delivers outstanding electrical performance with VSWR ≤1.215 and insertion loss ≤0.4 dB at 50 GHz, making it highly effective for use in high-frequency setups and lab testing conditions such as end-of-line quality verification.

Constructed with a corrosion-resistant passivated stainless steel body and gold-plated beryllium copper contacts, the 2.4mm male to 2.4mm female RF adapter is built for durability and consistent performance under extreme operating conditions ranging from -55°C to +165°C. Its compact footprint also makes it suitable for use in tightly integrated RF assemblies and instrumentation modules.

Fully compliant with RoHS and REACH regulations, Mechanc’s 2.4-JK1 male to female coaxial adapter reflects our dedication to sustainable and reliable engineering. Available with custom configurations upon request, this 2.4mm in-series adapter supports seamless integration into advanced RF systems across industries including automotive, aerospace, telecom, and test & measurement environments.
