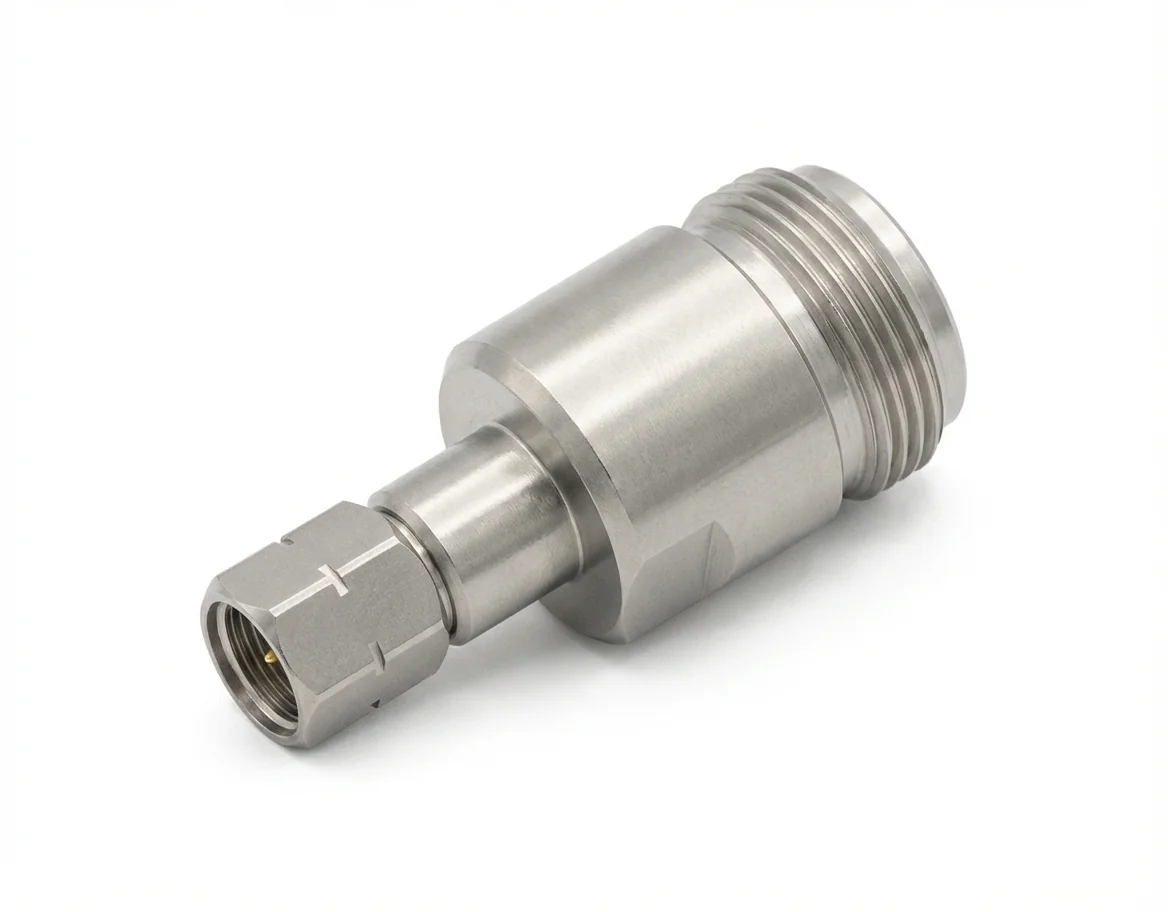

2.4mm Male to N Female RF Adapter

The 2.4mm Male to N Female RF Adapter – 2.4/N-JK1, also referred to as N Female to 2.4mm Male RF Adapter – N/2.4-KJ1, is a precision-engineered coaxial adapter designed to connect 2.4mm male and N-type female interfaces. This straight-body adapter ensures stable electrical performance while allowing interoperability between millimeter-wave components and standard RF infrastructure.

Operating up to 18 GHz with a characteristic 50-ohm impedance, the 2.4mm Male to N Female RF Adapter is ideal for hybrid test systems, antenna measurements, and signal routing applications where rugged N-type connectors are still in use. Common application areas include VNA calibration environments, 5G radio unit testing, and unmanned aerial RF systems.

This adapter offers excellent RF characteristics with a VSWR ≤1.09 and insertion loss ≤0.25 dB, ensuring clean signal transmission with minimal reflection or mismatch. The 2.4mm Male to N Female RF Adapter is a reliable tool for engineers working across mixed-frequency environments and legacy-compatible measurement systems.

Manufactured from rugged passivated stainless steel and equipped with gold-plated beryllium copper contacts, this 2.4mm between-series adapter delivers long-lasting mechanical and electrical reliability. It performs consistently over a wide temperature range of -55°C to +165°C, making it suitable for use in demanding lab and field conditions.

RoHS and REACH compliant, this 2.4mm to N Female adapter is engineered for high-performance integration in aerospace, telecom, defense, and metrology applications. Custom versions of the 2.4mm Male to N Female RF Adapter can be provided upon request to meet the specific mechanical or electrical requirements of your project or platform.
