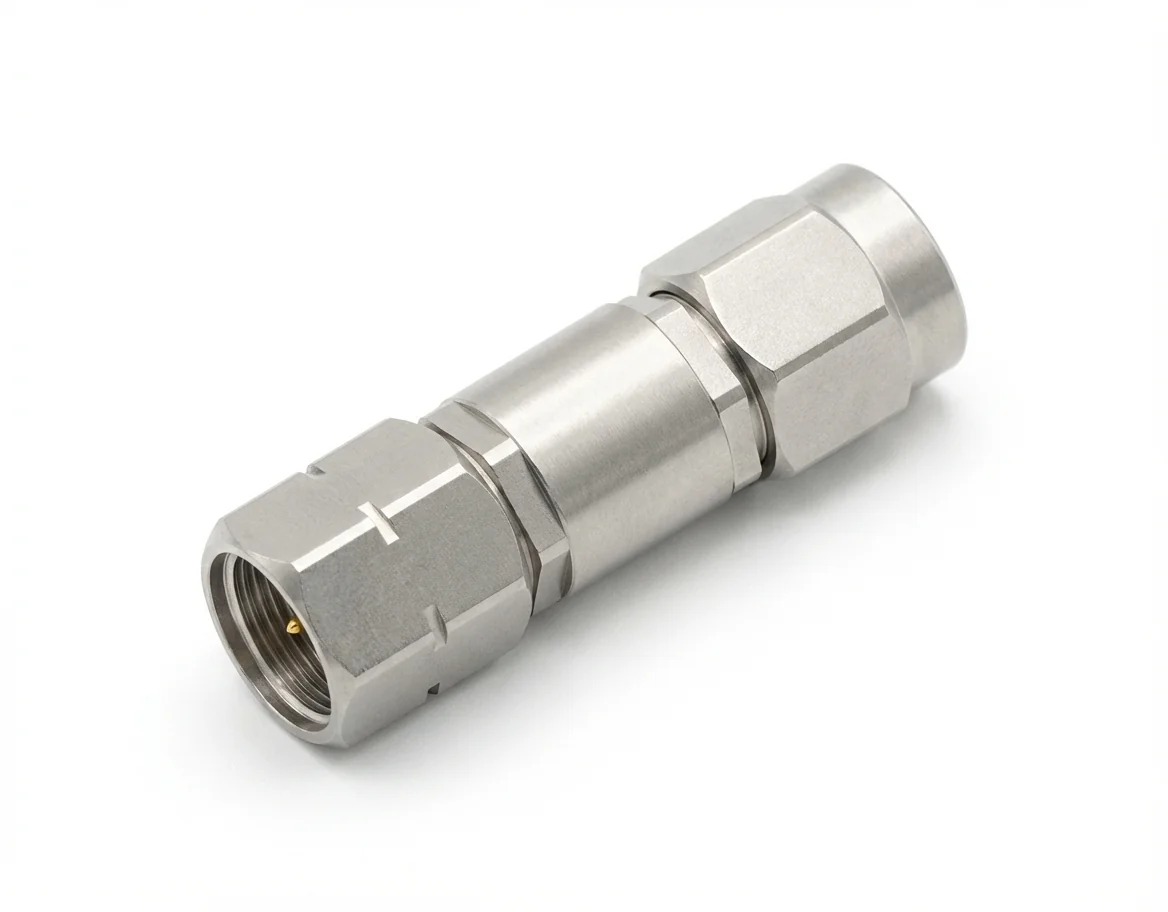

2.4mm Male to SMA Male RF Adapter

The 2.4mm Male to SMA Male RF Adapter – 2.4/SMA-JJ1, also referred to as SMA Male to 2.4mm Male RF Adapter – SMA/2.4-JJ1, is a precision-engineered coaxial adapter designed for seamless interconnection between 2.4mm male and SMA male interfaces. This straight adapter provides reliable, high-frequency performance across a broad range of RF applications, from modern test benches to legacy SMA-based systems.

Operating up to 26.5 GHz with a tightly controlled 50-ohm impedance, the 2.4mm Male to SMA Male RF Adapter supports signal integrity in demanding environments. It is widely used in modular test systems and compact devices within sectors like microwave backhaul networks, low intermodulation analysis, and unmanned aircraft systems where cross-interface compatibility is essential.

This 2.4mm straight adapter delivers excellent electrical performance with an insertion loss of ≤0.25 dB and a VSWR ≤1.20, ensuring minimal signal degradation during high-frequency transmission. The 2.4mm Male to SMA Male RF Adapter allows integration of advanced 2.4mm components with SMA-equipped instruments for precise measurement and signal routing in lab and field scenarios.

Constructed with a passivated stainless steel body and gold-plated beryllium copper contacts, the 2.4mm Male to SMA Male RF Adapter offers excellent durability, long-term stability, and corrosion resistance. It functions reliably across an extended temperature range from -55°C to +165°C, making it suitable for diverse environmental conditions.

Compliant with RoHS and REACH regulations, the 2.4/SMA-JJ1 between-series coaxial adapter embodies Mechanc’s commitment to environmentally responsible and precision RF manufacturing. Its versatility, performance, and rugged build make the 2.4mm Male to SMA Male RF Adapter an ideal component in any RF test and measurement system requiring cross-compatibility between modern and legacy RF interfaces.
