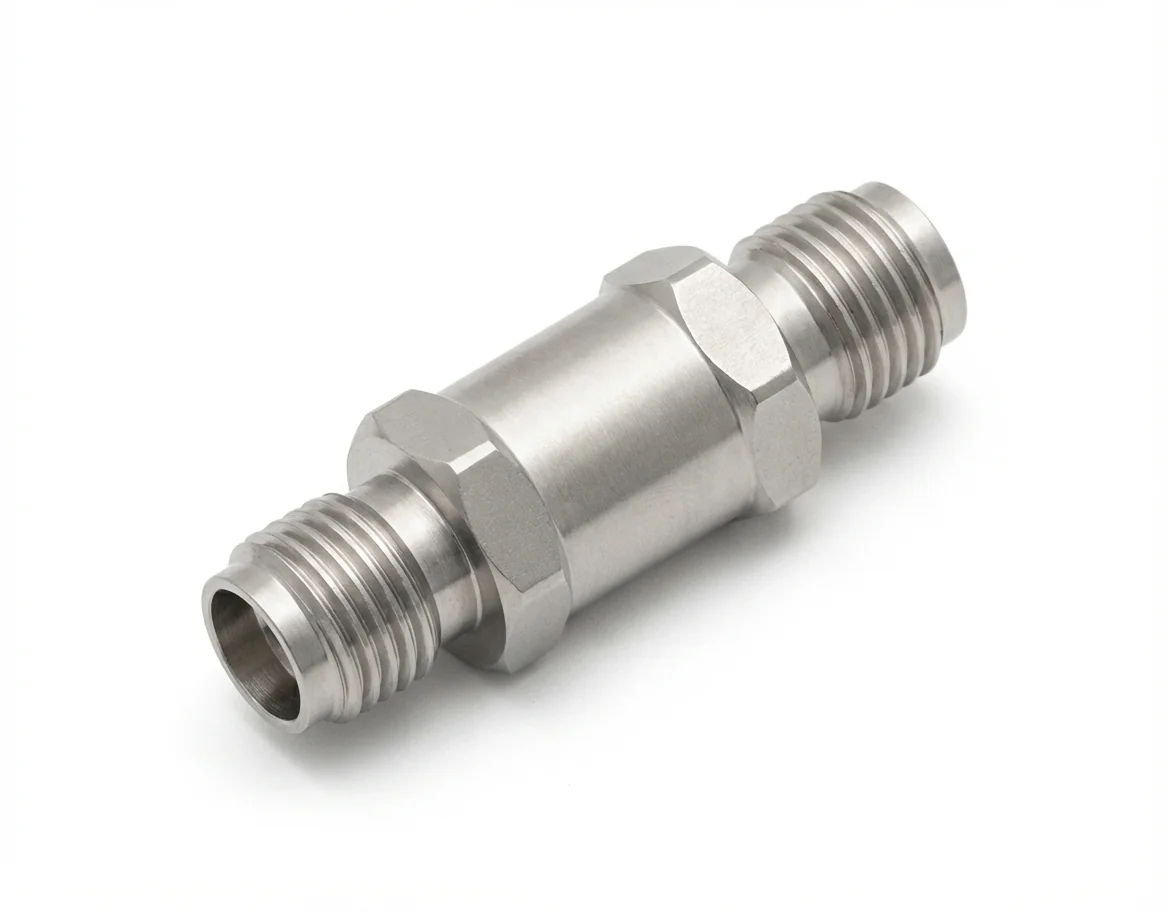

2.92mm Female to SMA Female RF Adapter

The 2.92mm Female to SMA Female RF Adapter – 2.92/SMA-KK1, also referred to as SMA Female to 2.92mm Female RF Adapter – SMA/2.92-KK1, is a precision RF coaxial adapter designed to facilitate stable interconnection between 2.92mm (K) and SMA female interfaces. This straight adapter offers compatibility between high-frequency laboratory equipment and widely used SMA-based infrastructure in various RF systems.

With performance up to 26.5 GHz and a consistent 50-ohm impedance, the 2.92mm Female to SMA Female RF Adapter is ideal for hybrid test setups across VNA calibration environments, microwave backhaul infrastructure, and military-grade RF networks.

Engineered for low insertion loss ≤0.25 dB and a maximum VSWR of 1.15, this K-type adapter ensures signal integrity and minimal reflection for measurement accuracy and system efficiency. The 2.92mm Female to SMA Female RF Adapter is frequently chosen by engineers needing to bridge high-frequency vector network analyzers or RF modules with robust SMA-based installations.

This 2.92mm between-series adapter is constructed from passivated stainless steel and features gold-plated beryllium copper contacts for superior electrical and mechanical performance. This coaxial adapter supports long-term reliability under environmental extremes, with an operating temperature range of -55°C to +165°C and consistent durability under repeated mating cycles.

RoHS and REACH compliant, the 2.92mm Female to SMA Female RF Adapter delivers dependable high-frequency performance for demanding test, telecom, aerospace, and defense applications. Custom versions tailored to your interface or mechanical integration requirements are available upon request.
