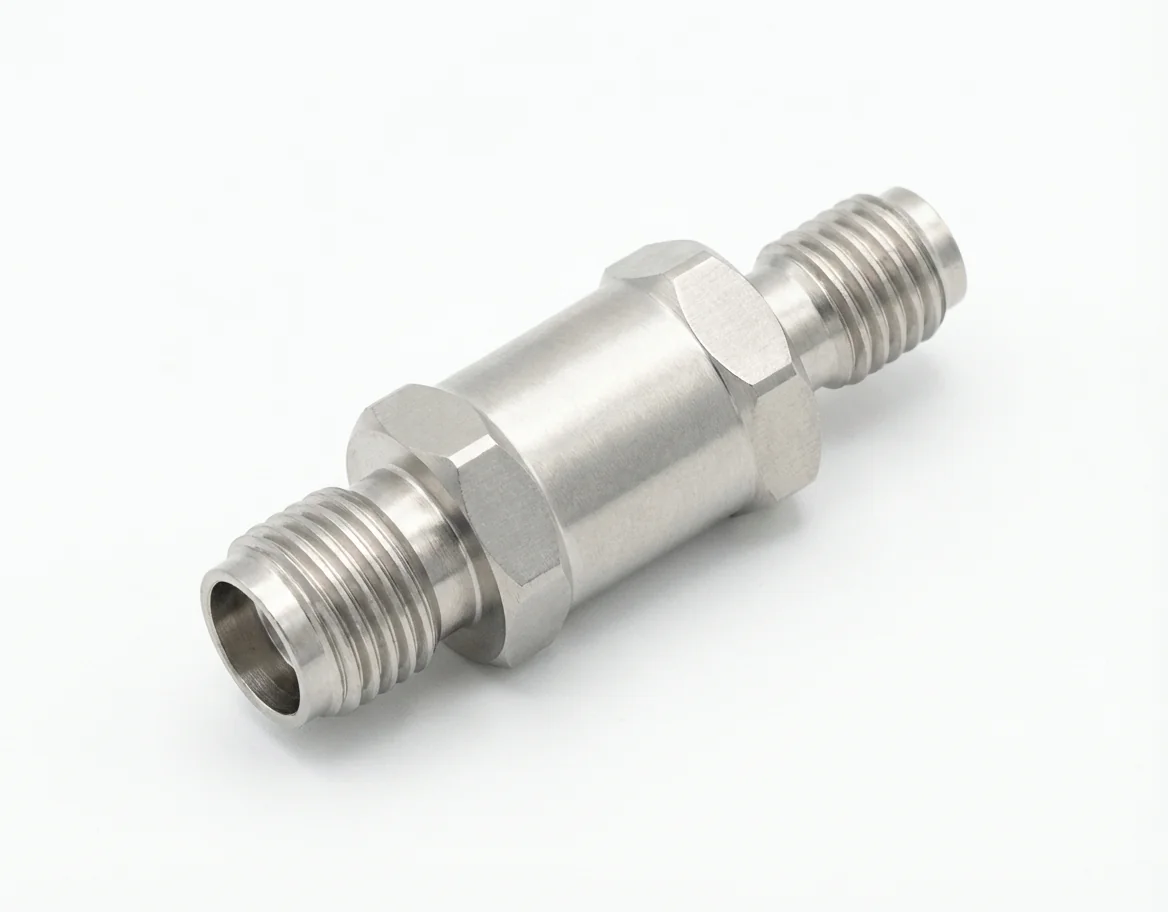

2.92mm Female to SSMA Female RF Adapter

The 2.92mm Female to SSMA Female RF Adapter – 2.92/SSMA-KK1, also referred to as SSMA Female to 2.92mm Female RF Adapter – SSMA/2.92-KK1, is a precision coaxial adapter designed to connect 2.92mm and SSMA female interfaces. This straight coaxial adapter enables high-frequency signal continuity between legacy SSMA systems and modern K-type networks without compromising mechanical integrity or performance.

Engineered for operation up to 26.5 GHz with a 50-ohm impedance, the 2.92mm Female to SSMA Female RF Adapter is ideal for use in component performance evaluation, aerospace RF systems, and electronic warfare testing platforms, where connector compatibility is critical for equipment interoperability.

Delivering a typical insertion loss of ≤0.3 dB and VSWR ≤1.25, this 2.92mm between-series adapter ensures excellent electrical performance with minimal reflection and signal degradation. The 2.92mm Female to SSMA Female RF Adapter is especially valuable for system engineers requiring secure, low-loss RF coupling in compact assemblies.

Constructed from passivated stainless steel for rugged performance and featuring gold-plated beryllium copper contacts for superior conductivity, this 2.92mm coaxial adapter performs consistently across an extended temperature range of -55°C to +165°C. It is built to endure repeated mating cycles in demanding lab and field environments.

RoHS and REACH compliant, the 2.92mm Female to SSMA Female RF Adapter provides a reliable interface solution across defense, telecom, and aerospace sectors. Custom variants can be offered upon request to support specific mechanical or electrical integration requirements.
