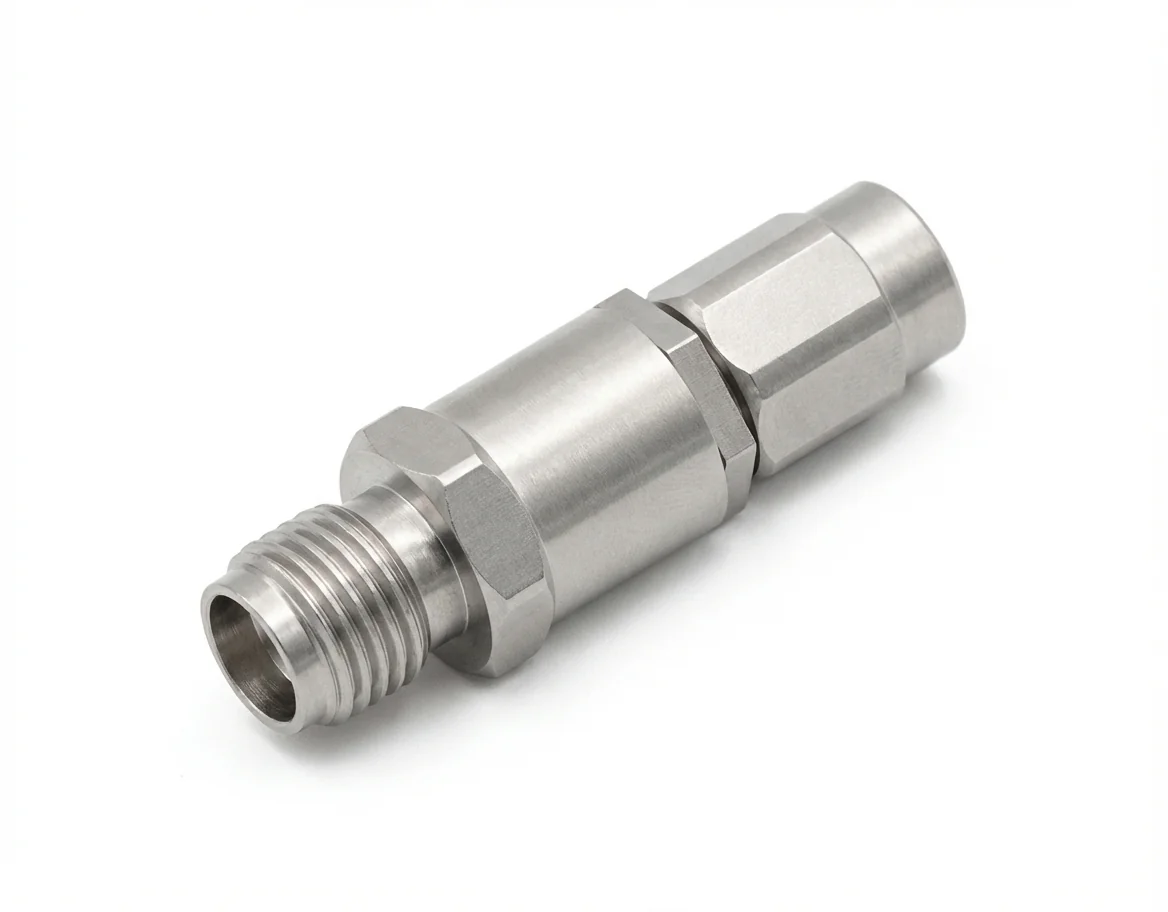

2.92mm Female to SSMA Male RF Adapter

The 2.92mm Female to SSMA Male RF Adapter – 2.92/SSMA-KJ1, also referred to as SSMA Male to 2.92mm Female RF Adapter – SSMA/2.92-JK1, is a precision coaxial adapter engineered to connect 2.92mm female and SSMA male interfaces with minimal signal degradation. This straight coaxial adapter facilitates high-frequency transitions between K-type and SSMA systems in compact RF environments.

Operating up to 40 GHz with a stable 50-ohm impedance, the 2.92mm Female to SSMA Male RF Adapter is ideally suited for applications in electronic warfare and radar systems, controlled lab test benches, and aerospace RF interconnects where size constraints and performance are equally critical.

With a VSWR of ≤1.2 and insertion loss ≤0.25 dB, this adapter maintains signal integrity across its full bandwidth. The 2.92mm Female to SSMA Male RF Adapter ensures reliable low-loss transmission for measurement systems and compact assemblies requiring tight mechanical tolerances.

Built from passivated stainless steel and equipped with gold-plated beryllium copper contacts, this K adapter is designed for long-term performance in demanding conditions. Its robust construction enables operation in environments ranging from -55°C to +165°C, suitable for both indoor test labs and outdoor field systems.

Fully compliant with RoHS and REACH directives, the 2.92mm Female to SSMA Male RF Adapter offers reliable performance and mechanical resilience. Custom versions can be provided upon request to match specific project requirements in the defense, aerospace, telecom, and precision test sectors.
