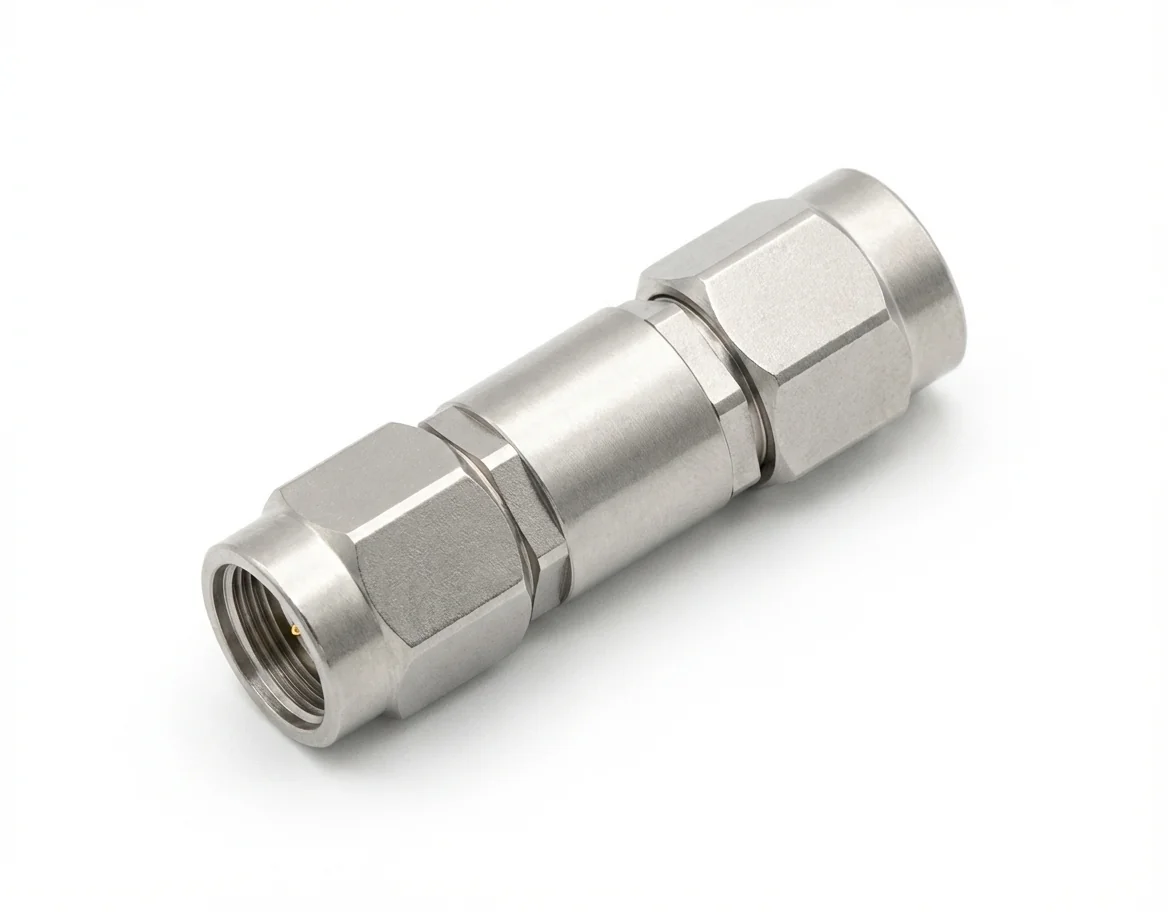

2.92mm Male to 3.5mm Male RF Adapter

The 2.92mm Male to 3.5mm Male RF Adapter – 2.92/3.5-JJ1, also referred to as 3.5mm Male to 2.92mm Male RF Adapter – 3.5/2.92-JJ1, is a high-frequency coaxial adapter engineered for precision signal transitions between 2.92mm and 3.5mm male interfaces. This straight adapter supports seamless connectivity between metrology-grade components and general-purpose RF systems.

Operating efficiently up to 26.5 GHz with a consistent 50-ohm impedance, the 2.92mm Male to 3.5mm Male RF Adapter is ideally suited for controlled lab testing, industrial RF systems, and next-generation 5G module development. This coaxial adapter provides optimal performance where precision and reliability are key.

This K-type adapter features excellent electrical characteristics, including a VSWR of ≤1.1 and an insertion loss of ≤0.2 dB. The 2.92mm Male to 3.5mm Male RF Adapter ensures minimal signal degradation and high repeatability across demanding test and deployment environments.

Constructed from passivated stainless steel with gold-plated beryllium copper contacts, this 2.92mm straight RF adapter is built for durability, corrosion resistance, and superior signal integrity. Its operating temperature range of -55°C to +165°C makes it dependable in both lab and field conditions.

Compliant with RoHS and REACH standards, the 2.92mm Male to 3.5mm Male RF Adapter offers a sustainable solution for modern RF infrastructures. Custom versions are available upon request to meet specialized mechanical or electrical requirements in aerospace, defense, and telecom applications.
