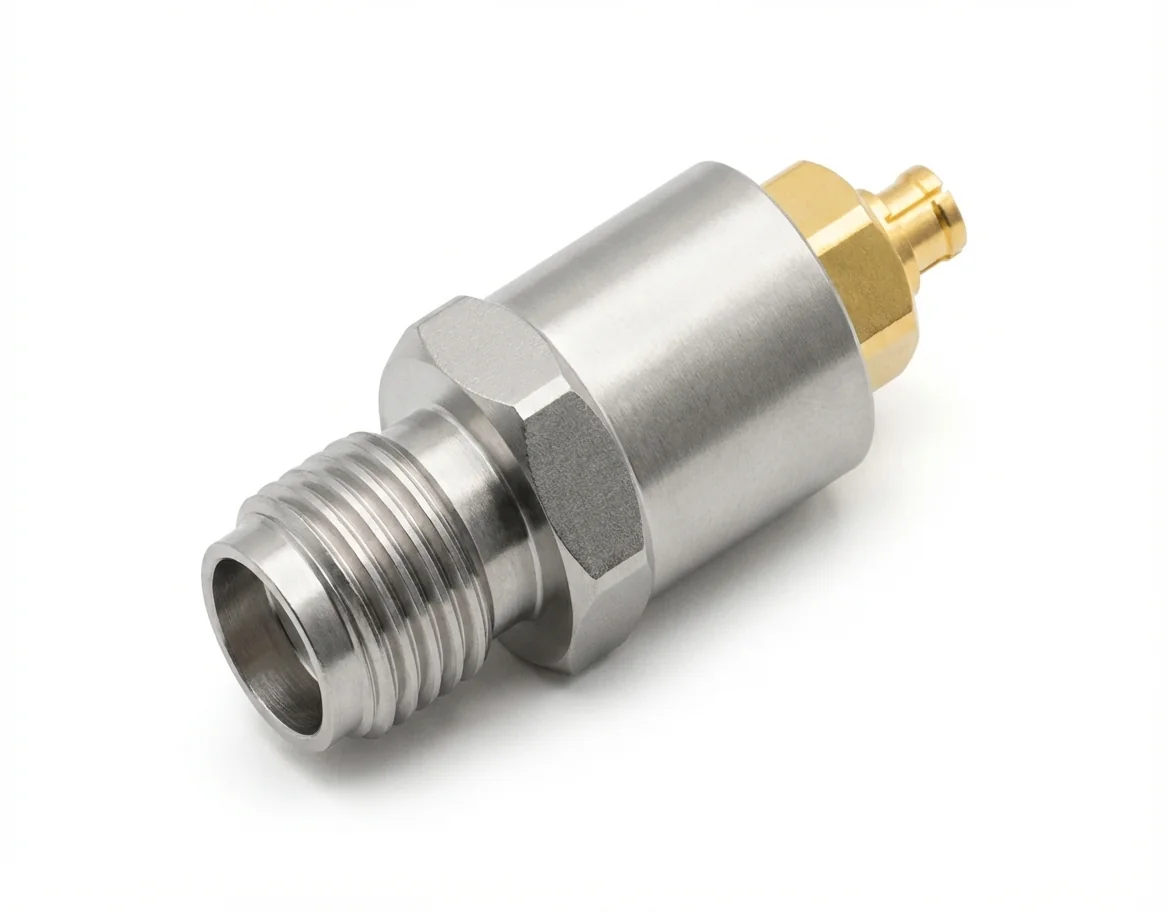

3.5mm Female to SSMP Female RF Adapter

The 3.5mm Female to SSMP Female RF Adapter – 3.5/SSMP-KK1, also referred to as SSMP Female to 3.5mm Female RF Adapter – SSMP/3.5-KK1, is a high-frequency coaxial adapter engineered for seamless integration between precision-grade 3.5mm and miniaturized SSMP interfaces. This straight adapter supports ultra-compact connectivity in dense assemblies where size constraints and performance are both critical.

With an operating frequency up to 26.5 GHz and a controlled 50-ohm impedance, the 3.5mm Female to SSMP Female RF Adapter enables efficient signal transfer in applications such as high-frequency 5G module interfaces, microwave subassemblies, and compact RF test boards.

This 3.5mm between-series adapter ensures signal integrity across tight frequency tolerances, maintaining VSWR ≤1.15 and insertion loss ≤0.25 dB. This straight coaxial adapter is optimized for use in precision modules and RF testing setups requiring high-density connections with minimal signal degradation.

Manufactured using passivated stainless steel with gold-plated beryllium copper contacts, the 3.5/SSMP-KK1 straight RF adapter offers robust performance under mechanical stress and harsh environmental conditions. The adapter operates reliably from -55°C to +165°C, making it suitable for both lab environments and embedded system deployments.

Fully RoHS and REACH compliant, the 3.5mm Female to SSMP Female RF Adapter is a compact, high-performance solution tailored for applications in aerospace systems, next-generation telecom, and high-density RF circuit integration. Custom configurations can be supplied upon request to meet specific system architecture or mechanical requirements.
