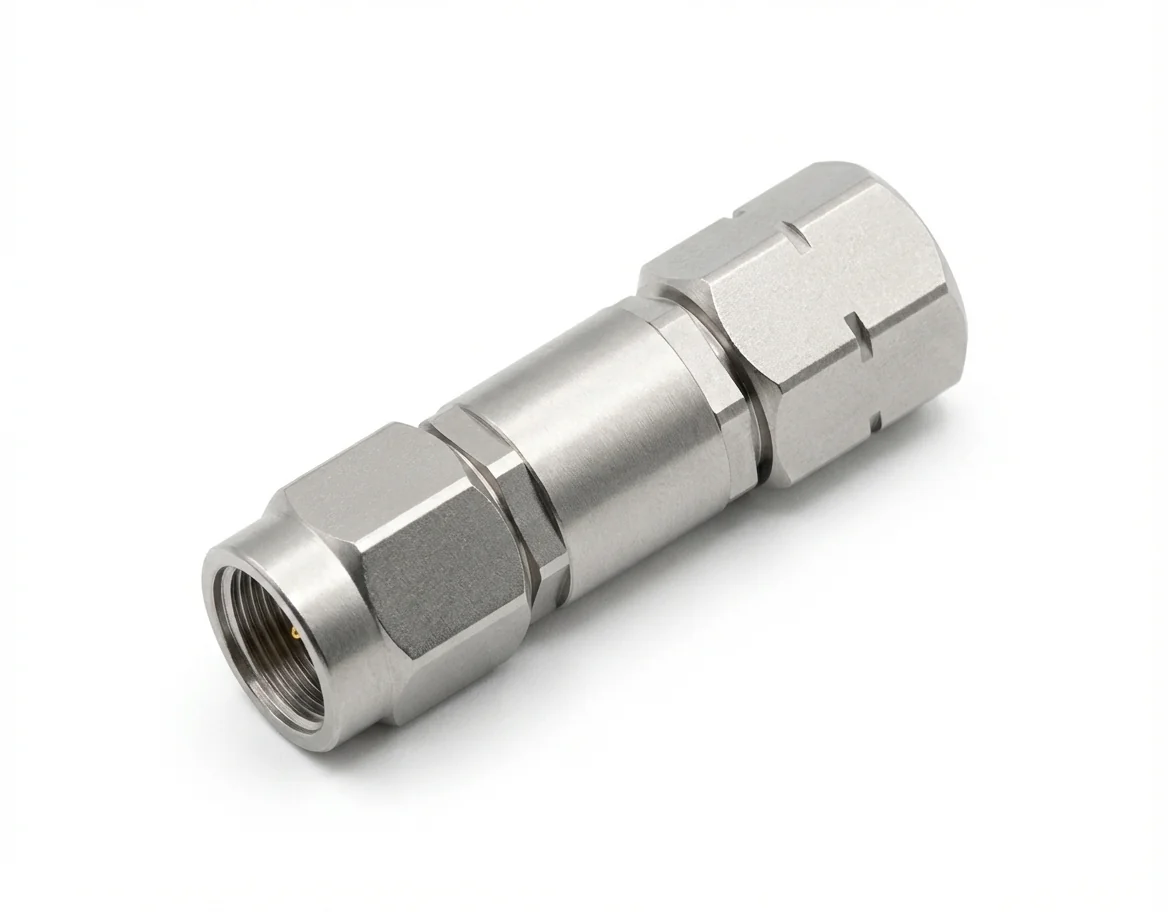

3.5mm Male to 2.4mm Male RF Adapter

The 3.5mm Male to 2.4mm Male RF Adapter – 3.5/2.4-JJ1, also referred to as 2.4mm Male to 3.5mm Male RF Adapter – 2.4/3.5-JJ1, is a precision coaxial adapter designed to enable low-loss, stable interconnection between 3.5mm male and 2.4mm male interfaces. This straight configuration is engineered for high-frequency applications where signal integrity and mechanical robustness are paramount.

With an operational frequency range up to 26.5 GHz and a standardized 50-ohm impedance, the 3.5mm Male to 2.4mm Male RF Adapter is ideal for a range of advanced applications, including controlled lab testing environments, aerospace and defense communication systems, and 5G module interface testing. This 3.5mm between-series adapter ensures compatibility between metrology-grade test equipment and high-frequency components.

This male to male straight coaxial adapter features a low VSWR of ≤1.12 and insertion loss ≤0.25 dB, ensuring excellent electrical performance. The 3.5mm Male to 2.4mm Male RF Adapter offers consistent signal transmission, making it a reliable solution for frequency-critical environments and RF test benches.

Constructed with a passivated stainless steel body and gold-plated beryllium copper contacts, this 3.5mm to 2.4mm adapter is built for repeated use and long-term stability. The RF adapter performs reliably across a broad temperature range from -55°C to +165°C, making it suitable for both indoor labs and rugged field operations.

The 3.5mm Male to 2.4mm Male RF Adapter is fully RoHS and REACH compliant, meeting international standards for safety and environmental responsibility. Customized variants are available upon request to fulfill specific mechanical constraints or performance criteria in specialized RF systems.
