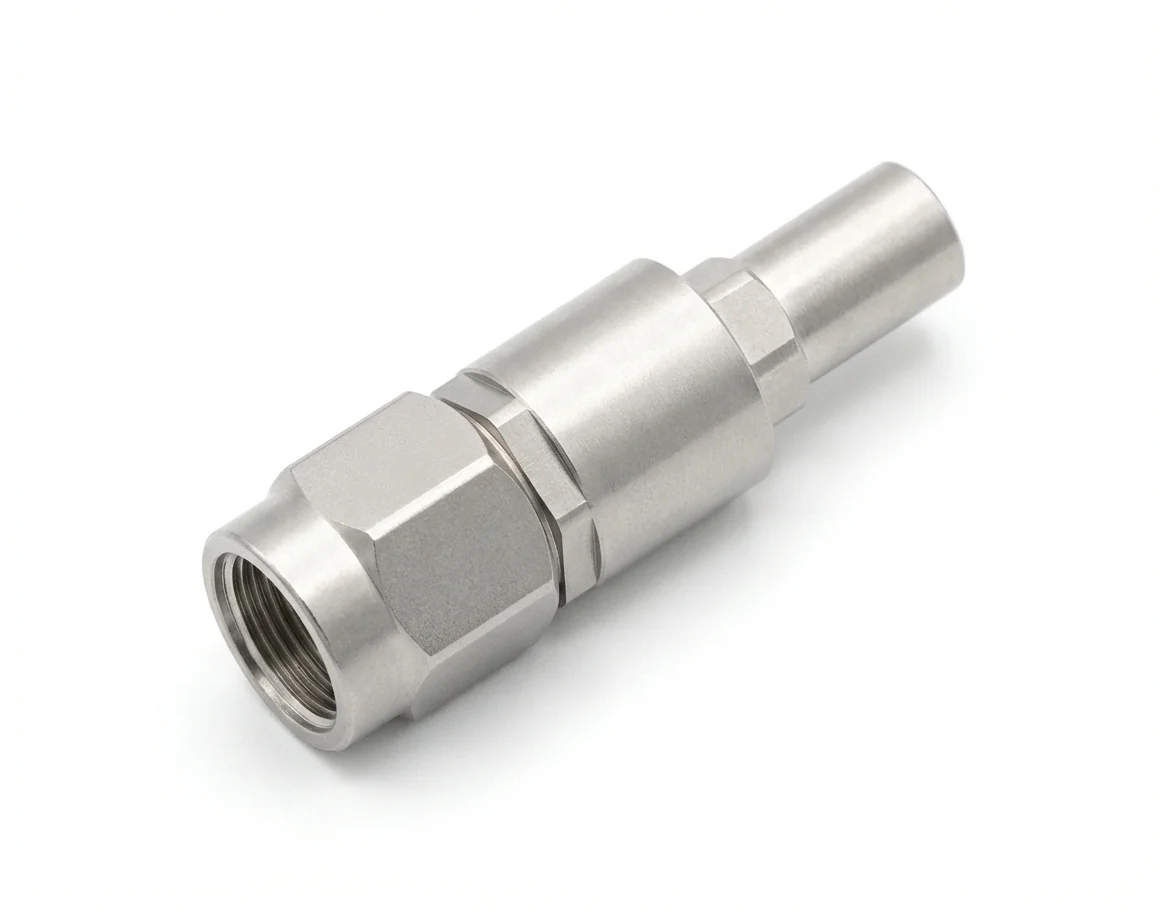

3.5mm Male to SMP Male RF Adapter

The 3.5mm Male to SMP Male RF Adapter – 3.5/SMP-JJ1, also referred to as SMP Male to 3.5mm Male RF Adapter – SMP/3.5-JJ1, is a precision coaxial adapter designed for high-frequency signal transitions between 3.5mm and SMP male connectors. This straight adapter provides engineers with a reliable interconnection solution for dense, modular RF assemblies and precision testing setups.

Engineered for performance up to 26.5 GHz with a consistent 50-ohm impedance, the 3.5mm Male to SMP Male RF Adapter is ideal for modern RF communication platforms. This 3.5mm between-series adapter plays a critical role in systems such as end-of-line quality verification, 5G module interfaces, and aerospace-grade compact RF systems.

With a low insertion loss of ≤0.25 dB and VSWR ≤1.1, the 3.5mm Male to SMP Male RF Adapter ensures excellent RF performance, minimal signal degradation, and strong return loss control. The push-on SMP male interface offers fast, repeatable connections ideal for high-density and miniaturized applications.

Constructed from passivated stainless steel with gold-plated beryllium copper contacts, the 3.5mm Male to SMP Male RF Adapter offers mechanical resilience and long-term stability, even under frequent mating cycles. This 3.5mm to SMP adapter performs reliably within an extended operating temperature range from -55°C to +165°C.

RoHS and REACH compliant, the 3.5mm Male to SMP Male RF Adapter supports environmentally responsible engineering and integration into complex RF assemblies. Custom versions are available on request to address specific mechanical layouts or performance requirements.
