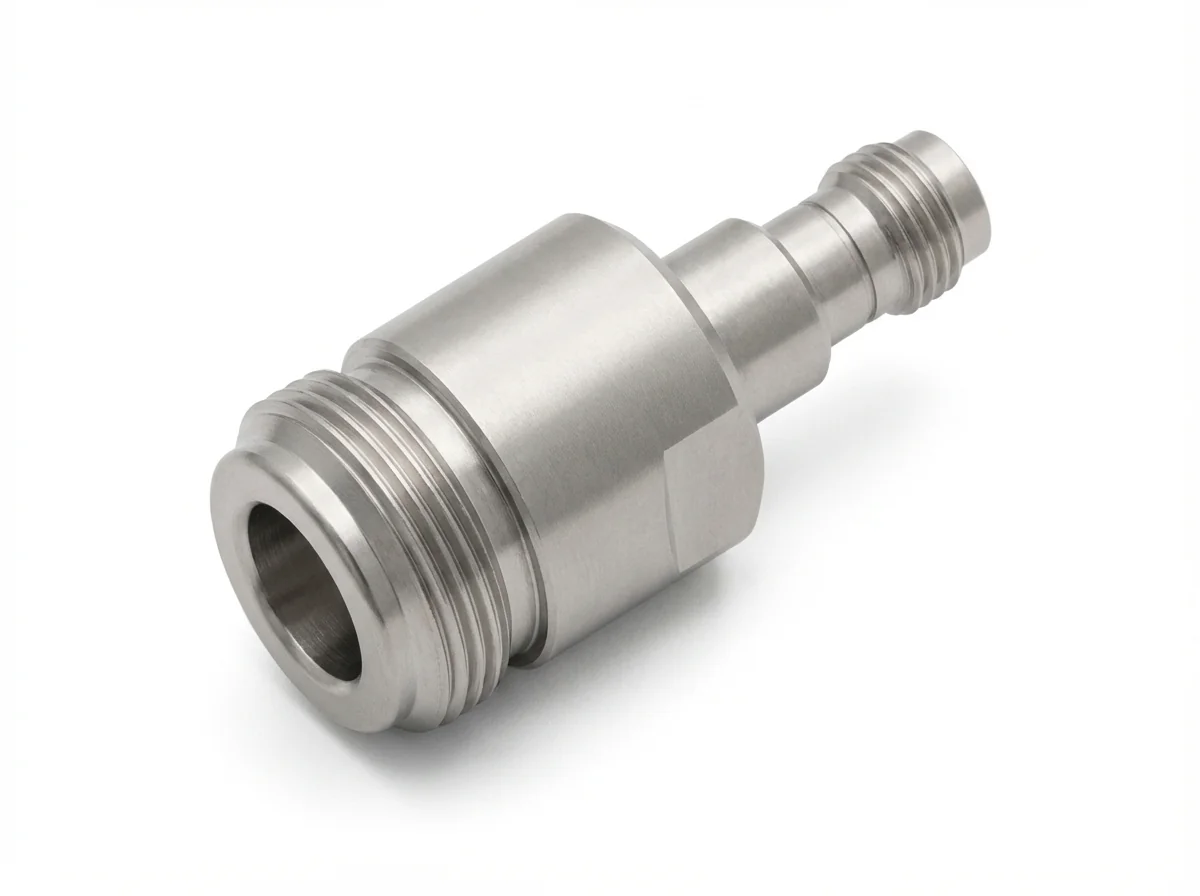

N Female to 2.4mm Female RF Adapter

The N Female to 2.4mm Female RF Adapter – N/2.4-KK1, also known as a 2.4mm Female to N Female RF Adapter – 2.4/N-KK1 provides a dependable interface solution for bridging legacy N-type systems with precision-grade 2.4mm instrumentation. Designed as a straight, high-frequency adapter, it supports signal transmission up to 18 GHz while maintaining a 50-ohm impedance, making it ideal for RF testing and calibration.

Engineered for high-frequency measurement environments and secure field operations, the N Female to 2.4mm Female RF Adapter is a trusted component in applications such as controlled RF lab testing, satellite ground qualification procedures, and industrial sensor interface systems. This N-type between-series adapter enables accurate signal transmission between rugged N-type setups and compact high-frequency assemblies that utilize 2.4mm interfaces.

This N to 2.4mm adapter is performance-optimized with a VSWR ≤1.09 and an insertion loss ≤0.25 dB, ensuring minimal signal degradation and stable phase performance. Whether deployed in aerospace testing, high-frequency telecom validation, or automated production benches, the N Female to 2.4mm Female RF Adapter delivers reliable results across demanding RF platforms.

Built with passivated stainless steel bodies and beryllium copper contacts with gold plating, the N Female to 2.4mm Female Adapter ensures long-term mechanical integrity, excellent conductivity, and corrosion resistance. This N female adapter supports operating temperatures from -55°C to +165°C, making it suitable for both field and lab conditions.

Fully RoHS and REACH compliant, this N straight adapter aligns with global environmental and material safety standards. The N Female to 2.4mm Female Adapter model can also be customized upon request to support unique assembly layouts, connector footprints, or mounting configurations.
