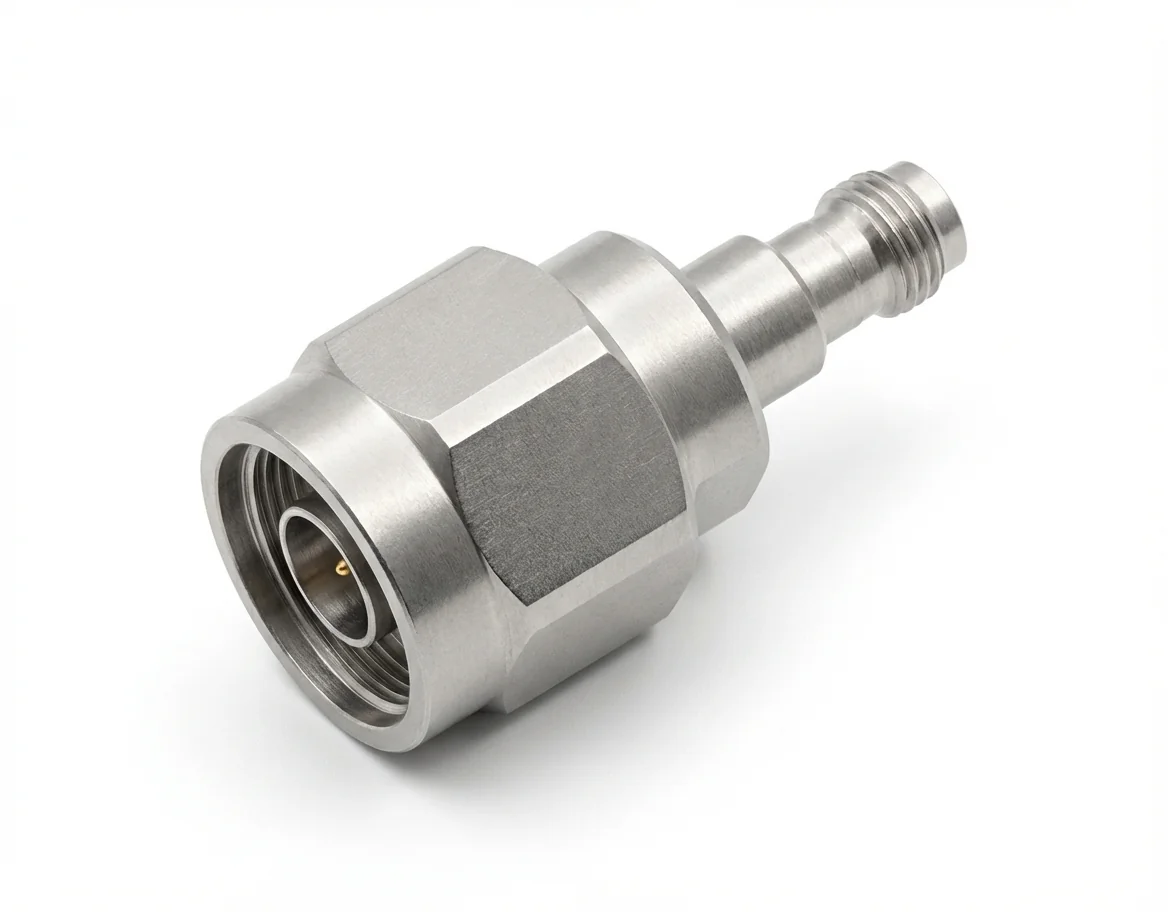

N Male to 2.4mm Female RF Adapter

The N Male to 2.4mm Female RF Adapter – N/2.4-JK1, also referred to as 2.4mm Female to N Male RF Adapter – 2.4/N-KJ1, is a high-precision coaxial adapter designed to connect rugged N-type male connectors with compact, high-frequency 2.4mm female interfaces. This straight coaxial adapter supports robust integration between field-deployable RF infrastructure and precision test systems operating up to 18 GHz.

Engineered with a 50-ohm impedance and minimal signal reflection, the N Male to 2.4mm Female RF Adapter is a dependable solution for hybrid RF test setups, advanced measurement labs, and industrial systems where rugged and millimeter-wave components must coexist. This N between-series adapter is commonly used in controlled laboratory testing, satellite and space launch systems, and industrial RF networks requiring accurate, stable performance across wide frequency ranges.

This N Male to 2.4mm Female RF Adapter ensures reliable RF performance, offering a typical VSWR of ≤1.09 and insertion loss of ≤0.25 dB. These characteristics help preserve signal integrity in sensitive measurement and calibration applications while ensuring low-loss transitions between connector types.

Built with a corrosion-resistant passivated stainless steel body and featuring gold-plated beryllium copper contacts, the N Male to 2.4mm Female RF Adapter delivers exceptional mechanical durability and consistent electrical conductivity. This N-type coaxial adapter performs reliably across a broad temperature spectrum from -55°C to +165°C, making it ideal for both field and laboratory use.

Fully compliant with RoHS and REACH directives, the N Male to 2.4mm Female RF Adapter offers long-term compatibility with global regulatory standards. Customized versions of this RF adapter can be provided upon request to meet specific mechanical constraints or frequency performance requirements for defense, aerospace, telecom, and high-frequency electronic systems.
