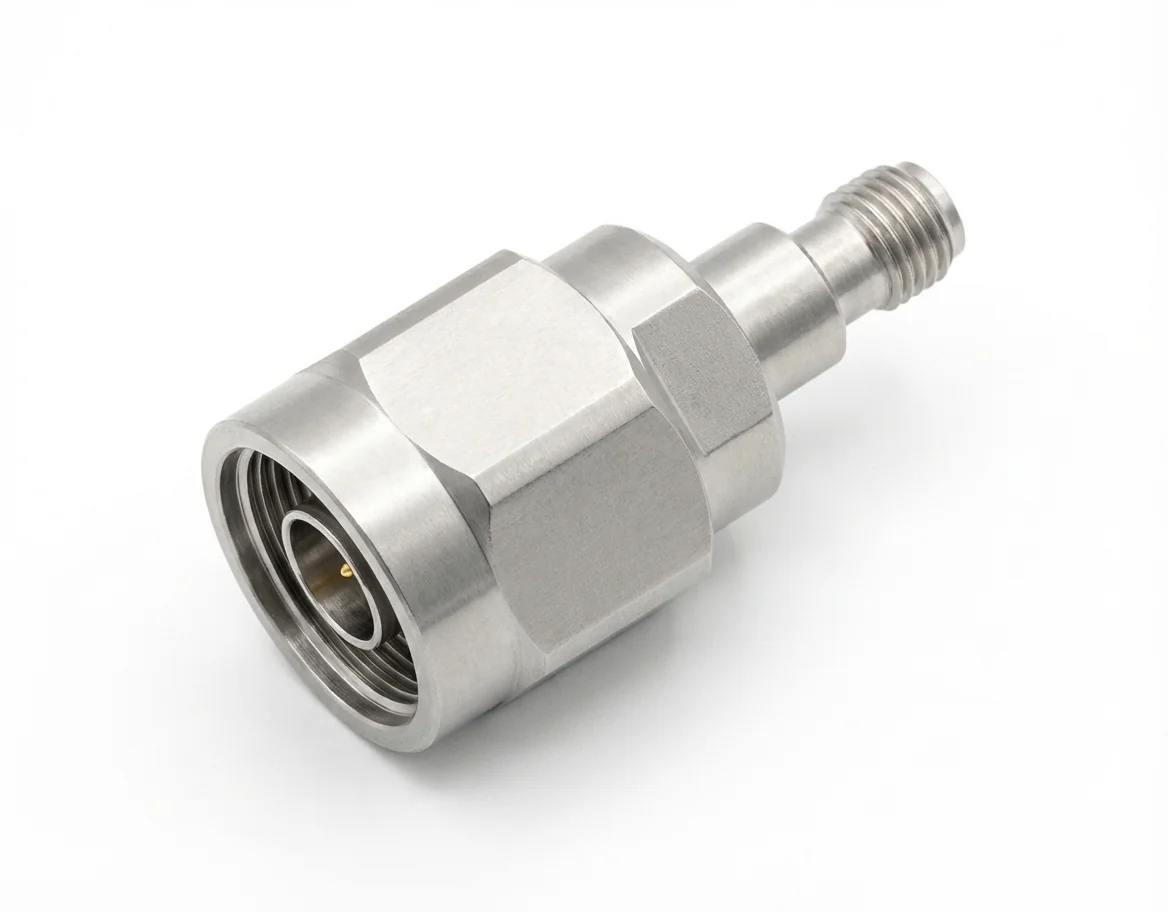

N Male to SMA Female RF Adapter

The N Male to SMA Female RF Adapter – N/SMA-JK1, also referred to as SMA Female to N Male RF Adapter – SMA/N-KJ1, is a high-frequency straight coaxial adapter designed to connect durable N-type male interfaces with compact SMA female connectors. This N between-series adapter enables seamless integration between legacy RF systems and high-performance modular instruments.

Rated up to 18 GHz and built with a controlled 50-ohm impedance, the N Male to SMA Female RF Adapter is ideal for use in multi-frequency systems requiring reliable signal routing between rugged and precision-grade connectors. Common applications include end-of-line RF testing setups, 5G module interface environments, and harsh industrial RF networks where robust connectivity and signal clarity are essential.

The N Male to SMA Female RF Adapter delivers outstanding electrical performance, including VSWR ≤1.1 and insertion loss ≤0.25 dB, ensuring minimal signal reflection and maintaining transmission quality throughout the entire operating range. The N male straight coaxial adapter is especially useful in scenarios where space, performance, and mechanical reliability must be balanced.

Crafted from passivated stainless steel and equipped with gold-plated beryllium copper contacts, the N Male to SMA Female RF Adapter provides superior corrosion resistance, conductivity, and mating durability. Its wide operating temperature range of -55°C to +165°C supports consistent performance in both laboratory and rugged field environments.

RoHS and REACH compliant, the N Male to SMA Female RF Adapter is a reliable choice for professionals in aerospace, telecommunications, and RF testing sectors. Custom versions of this N to SMA adapter can be developed upon request to meet unique system configurations or stringent application demands.
