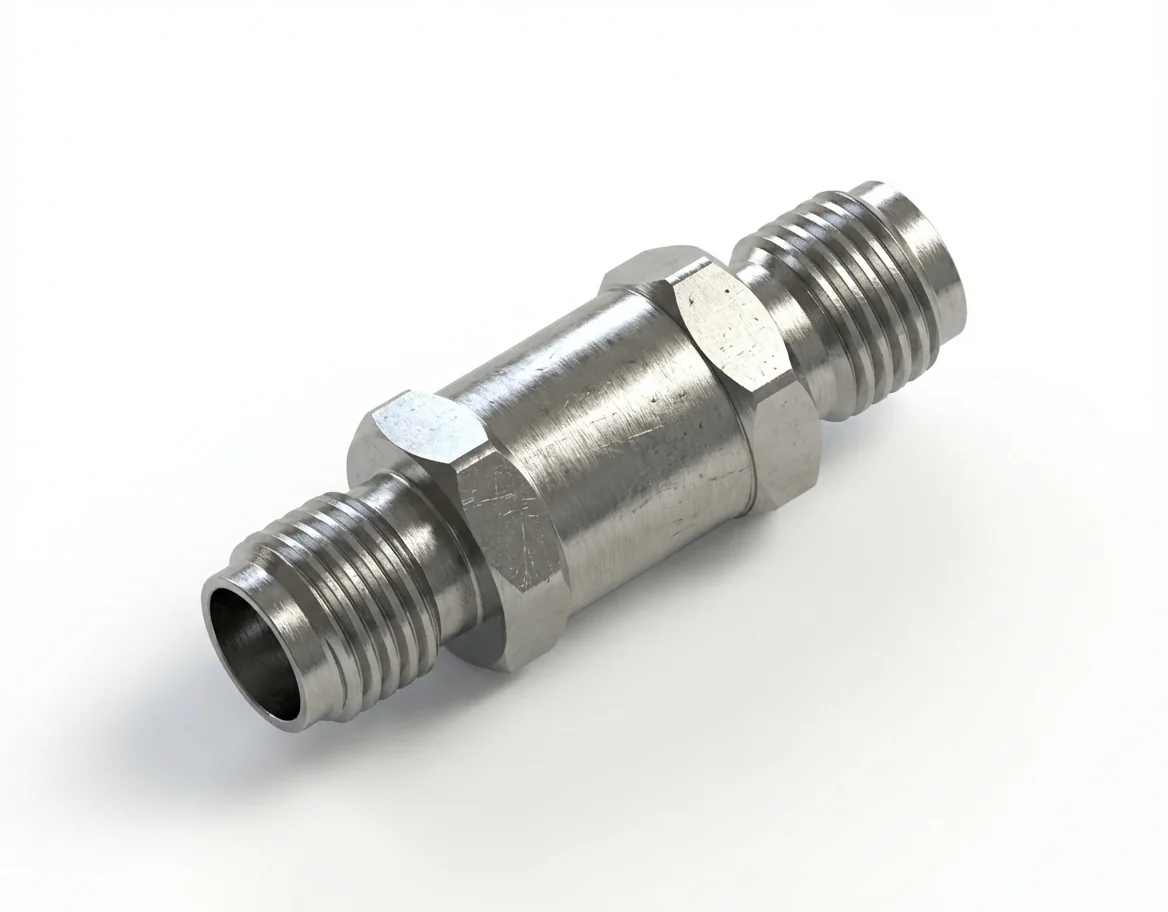

SMA Female to 2.92mm Female RF Adapter

The SMA Female to 2.92mm Female RF Adapter – SMA/2.92-KK1, also referred to as 2.92mm Female to SMA Female RF Adapter – 2.92/SMA-KK1, is a high-precision coaxial adapter engineered to connect SMA female interfaces with 2.92mm female connectors. This straight adapter ensures a reliable, low-loss transition between standard SMA-based systems and millimeter-wave 2.92mm components.

Supporting frequencies up to 40 GHz with a 50-ohm impedance, the SMA Female to 2.92mm Female RF Adapter is widely used in advanced telecommunications, RF testing, and aerospace applications. This SMA between-series adapter is particularly valuable for systems requiring high-frequency signal integrity, such as 5G module interfaces, VNA calibration setups, and satellite subsystem testing.

The SMA Female to 2.92mm Female RF Adapter offers excellent RF performance, with a typical VSWR ≤1.2 and insertion loss ≤0.3 dB, enabling accurate signal transmission with minimal reflection or degradation. Its straight configuration allows for easy integration into both laboratory setups and compact, high-density RF modules.

Constructed from passivated stainless steel with gold-plated beryllium copper contacts, the SMA to 2.92mm RF adapter delivers superior durability, corrosion resistance, and consistent electrical performance across multiple mating cycles. This SMA straight female adapter operates reliably across a temperature range of -55°C to +165°C, making it suitable for rugged field and controlled lab environments.

RoHS and REACH compliant, the SMA Female to 2.92mm Female RF Adapter is an essential component for engineers integrating SMA connectors with high-frequency 2.92mm interfaces. Customized designs and alternative configurations of our SMA adapters are available upon request for specialized RF system requirements.
