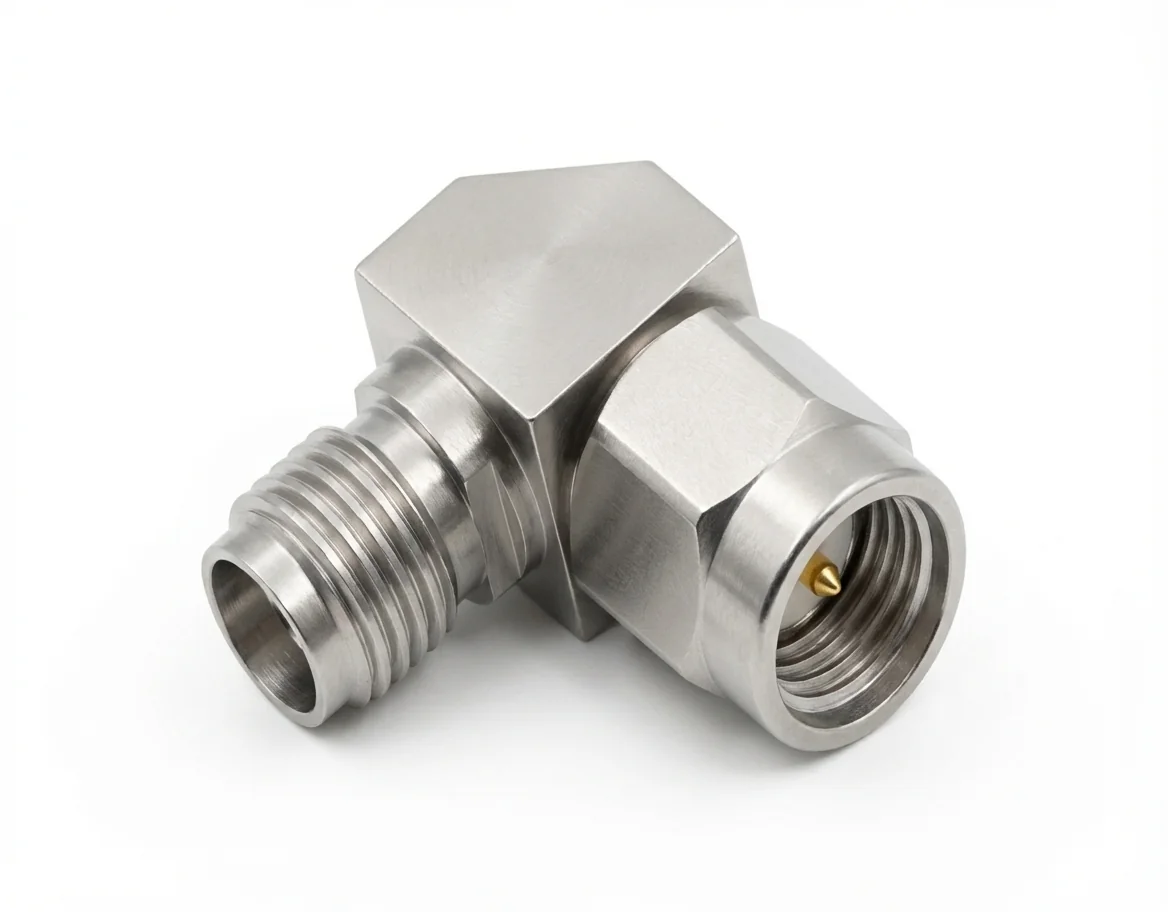

SMA Female to SMA Male Right Angle RF Adapter

The SMA Female to SMA Male Right Angle RF Adapter – SMA-KWJ1, also referred to as the SMA Male to SMA Female Right Angle RF Adapter – SMA-JWK1, is a compact and rugged coaxial adapter designed to facilitate 90-degree interconnections between SMA interfaces. This right angle adapter provides an efficient solution for RF routing challenges where space constraints, angular transitions, or cable strain relief are critical design considerations.

Operating up to 18 GHz with a 50-ohm impedance, the SMA Female to SMA Male Right Angle RF Adapter ensures reliable performance in high-frequency RF assemblies, test systems, and wireless infrastructure installations. Its precision right-angle geometry enables engineers to adapt SMA connectivity within limited footprints without compromising signal integrity. This SMA female to male right angle adapter is widely used in component performance test setups, ADAS test platforms, and 5G radio unit interfaces.

Engineered for low reflection and high precision, this SMA Female to SMA Male Right Angle RF Adapter maintains a typical VSWR of ≤1.25 and an insertion loss of ≤0.25 dB across its operating band. These electrical characteristics make this SMA right in-series adapter ideal for demanding applications involving modulated RF signals, real-time measurement equipment, and mobile RF system designs.

The SMA Female to SMA Male Right Angle RF Adapter is constructed using passivated stainless steel bodies and gold-plated beryllium copper contacts to ensure excellent conductivity, corrosion resistance, and durability. This SMA female right angle adapter is designed to operate reliably from -55°C to +165°C, withstanding thermal cycling and mechanical vibration common in aerospace, defense, and telecom environments.

Fully compliant with RoHS and REACH regulations, the SMA Female to SMA Male Right Angle RF Adapter is an essential tool for any RF lab, integration team, or system architect working with SMA connectors. Custom options such as panel mount or extended leg variants are available on request.
