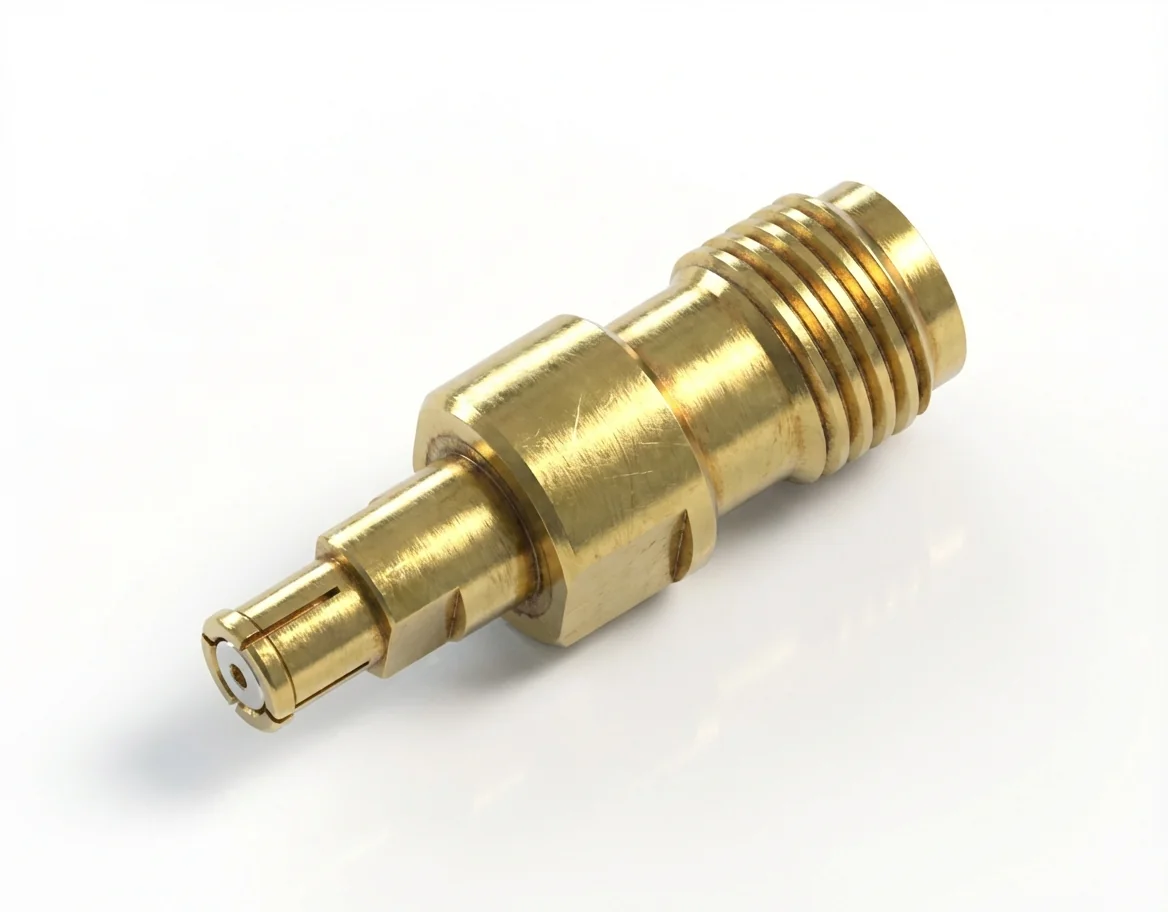

SMA Female to SMP Female Straight RF Adapter

The SMA Female to SMP Female Straight RF Adapter – SMA/SMP-KK2, also referred to as SMP Female to SMA Female Straight RF Adapter – SMP/SMA-KK2, is a precision RF interconnect solution designed for secure transitions between SMA and SMP female interfaces. This SMA adapter distinguishes itself by its compact profile and alternate flange configuration, meeting the mechanical integration needs of densely packaged RF assemblies.

Engineered for high-frequency performance up to 18 GHz with 50-ohm impedance, the SMA Female to SMP Female Straight RF Adapter is ideal for demanding RF environments including avionics and miniaturized defense systems, compact RF test instruments, and 5G RF front-end modules.

With a typical VSWR ≤1.15 and insertion loss ≤0.3 dB, this SMA to SMP coaxial adapter ensures minimal signal degradation while maintaining high signal integrity across its operating bandwidth. The SMA Female to SMP Female Straight RF Adapter is particularly well-suited for embedded modules and modular assemblies where spatial constraints are critical.

This SMA between-series adapter is constructed with a passivated stainless steel body and features gold-plated beryllium copper contacts for enhanced conductivity and corrosion resistance. Its mechanical durability supports a wide operational temperature range from -55°C to +165°C, ensuring performance in both controlled environments and rugged deployments.

RoHS and REACH compliant, the SMA Female to SMP Female Straight RF Adapter offers a space-efficient and performance-optimized solution for modern RF systems. Custom versions of this SMA adapter can be supplied upon request to accommodate unique system architectures or mechanical layouts.
