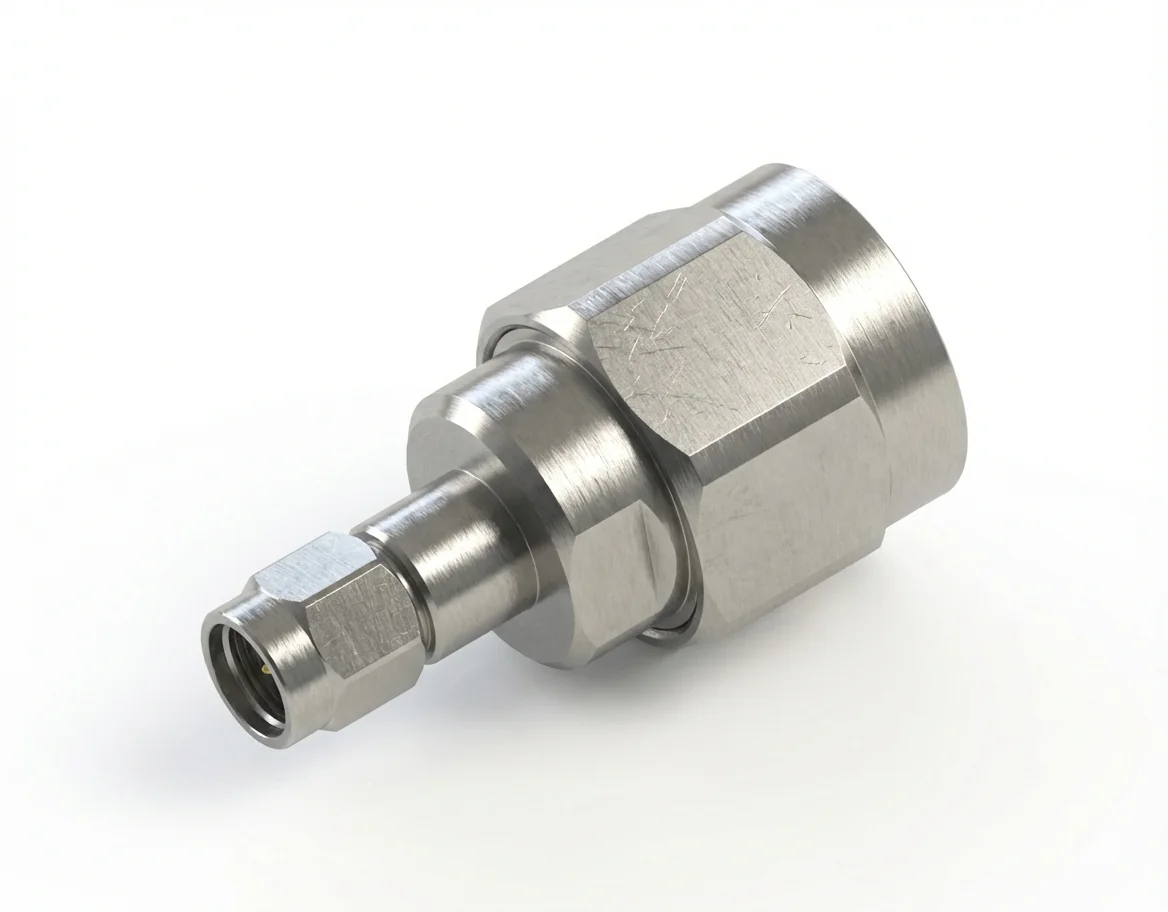

SMA Male to N Male RF Adapter

The SMA Male to N Male RF Adapter – SMA/N-JJ1, also referred to as N Male to SMA Male RF Adapter – N/SMA-JJ1, is a high-frequency coaxial adapter engineered to connect SMA male interfaces with N-type male connectors. Designed to ensure stable signal transmission in challenging RF environments, this SMA between-series adapter provides a direct male-to-male interconnect between compact SMA systems and ruggedized N-type networks.

With a frequency range up to 18 GHz and a 50-ohm impedance, the SMA Male to N Male RF Adapter is perfectly suited for a broad spectrum of RF applications, including microwave backhaul links, military and aerospace UAV platforms, and controlled RF lab testing.

Engineered for excellent RF performance, the SMA Male to N Male RF Adapter maintains a VSWR ≤1.2 and an insertion loss of ≤0.25 dB across its frequency range, ensuring clean and efficient transmission of high-frequency signals. Its robust straight design ensures reliable connections even in mobile or semi-permanent installations.

This SMA to N-type adapter is built with passivated stainless steel bodies and gold-plated beryllium copper contacts, delivering excellent durability, corrosion resistance, and electrical performance. This SMA straight coaxial adapter performs reliably across an operating temperature range from -55°C to +165°C, making it ideal for use in both lab-grade equipment and field-deployed systems.

RoHS and REACH compliant, the SMA Male to N Male RF Adapter is an indispensable solution for telecom engineers, test equipment designers, and aerospace system integrators. Custom modifications and adapter variants are available on request for integration into specialized RF assemblies.
