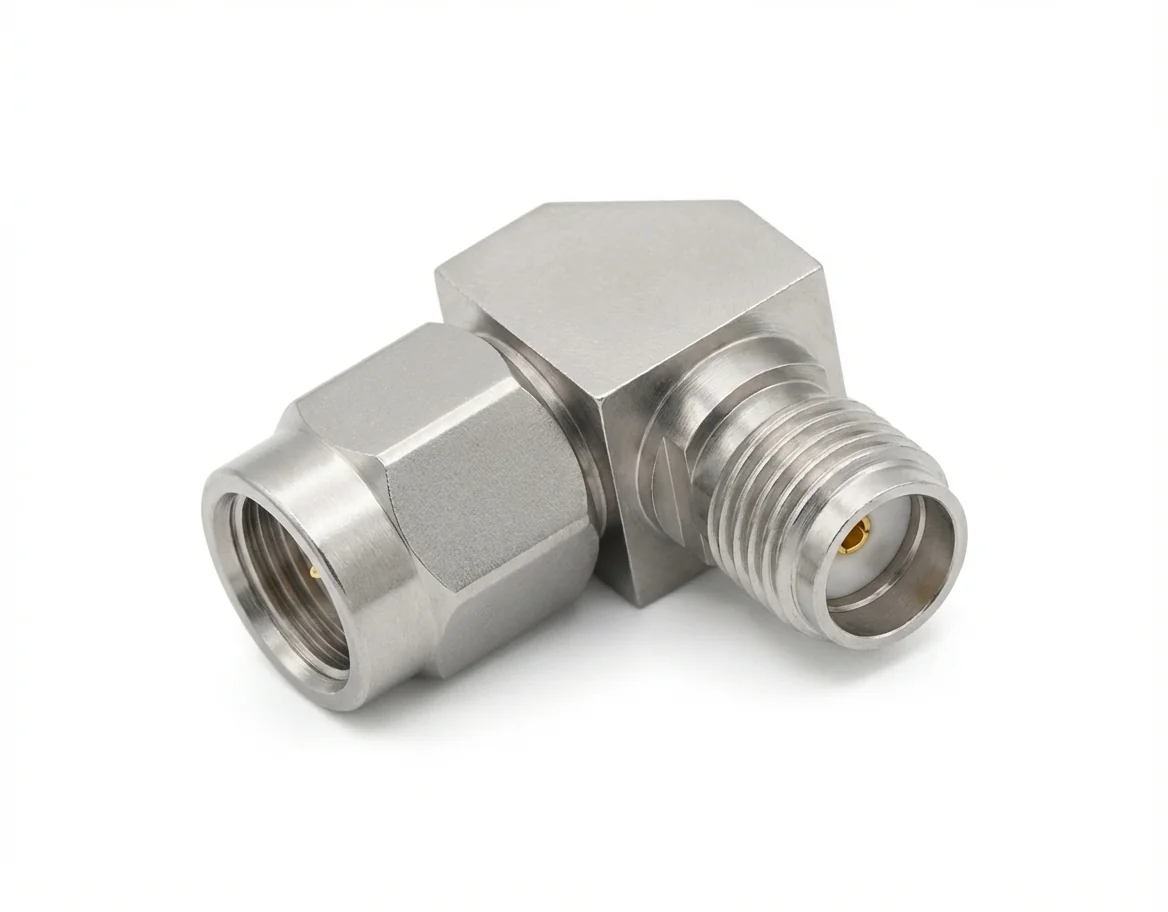

SMA Male to SMA Female Right Angle RF Adapter

The SMA Male to SMA Female Right Angle RF Adapter – SMA-JWK1, also referred to as SMA Female to SMA Male Right Angle RF Adapter – SMA-KWJ1, is a compact coaxial adapter engineered to enable 90-degree transitions between SMA male and SMA female interfaces. Its right-angle configuration supports space-saving routing in confined RF assemblies and enclosures.

With a frequency range up to 18 GHz and 50-ohm impedance, the SMA Male to SMA Female Right Angle RF Adapter is ideal for applications requiring angular flexibility without compromising performance. Common use cases include lab bench signal routing, RF front-end optimization for 5G modules, and compact electronic warfare platforms.

Despite its right-angle geometry, this adapter maintains a VSWR of ≤1.25 and insertion loss ≤0.3 dB, ensuring minimal reflection and consistent signal quality even in space-constrained conditions. Its design allows for efficient cable routing and mechanical stress relief on connected interfaces.

Constructed with a rugged passivated stainless steel housing and gold-plated beryllium copper contacts, the SMA Male to SMA Female Right Angle RF Adapter adapter offers exceptional durability and electrical reliability. The SMA male to female right angle adapter performs reliably across a temperature range from -55°C to +165°C, making it suitable for both indoor lab use and harsh field environments.

RoHS and REACH compliant, the SMA Male to SMA Female Right Angle RF Adapter is the perfect solution for engineers looking to optimize layout in high-density RF designs. Custom right-angle configurations and mounting options are available on request to meet specific application requirements.
