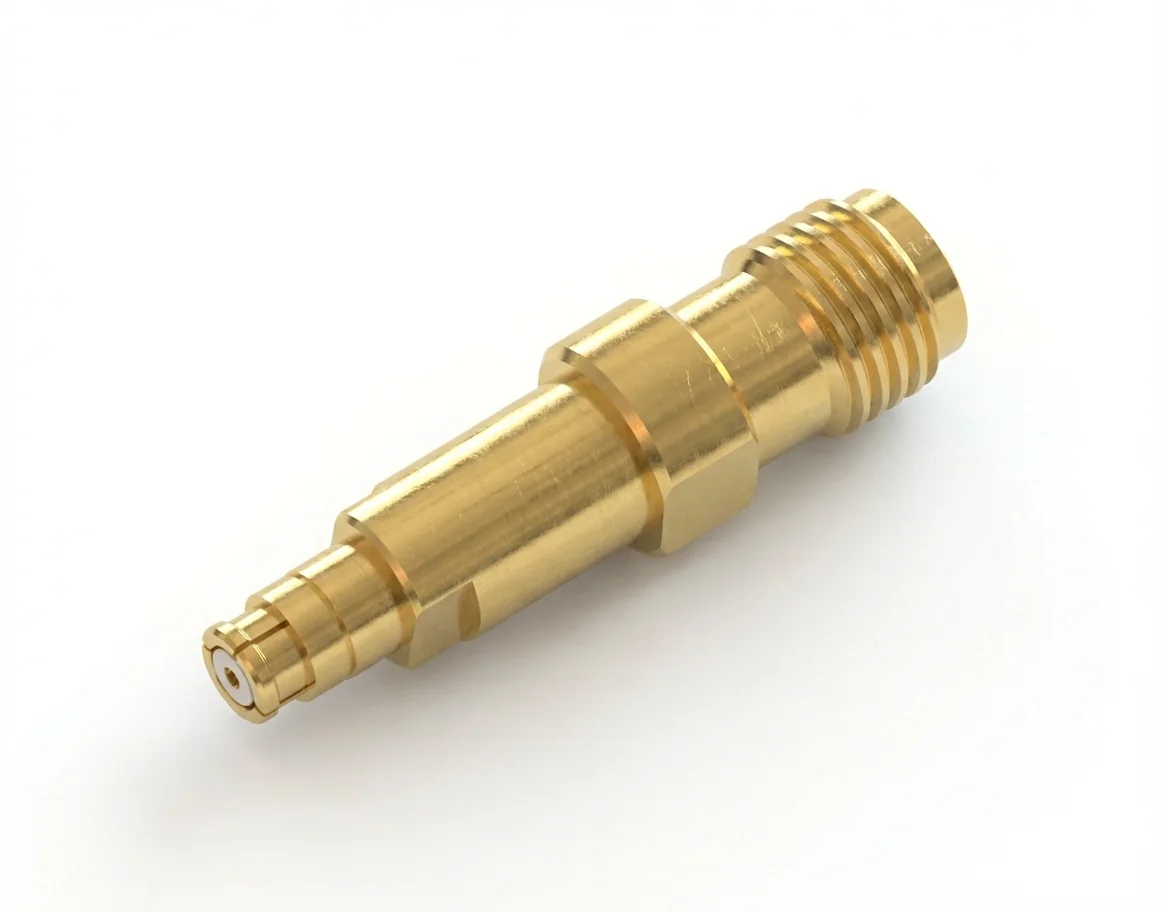

SMP Female to SMA Female RF Adapter

The SMP Female to SMA Female RF Adapter – SMP/SMA-KK1, also referred to as SMA Female to SMP Female Adapter – SMA/SMP-KK1, is a compact and high-performance RF adapter designed to connect SMP female interfaces with SMA female connectors. This straight coaxial adapter ensures secure signal continuity between dense modular systems and standard coaxial networks, making it an essential component in modern RF engineering.

With a frequency range extending up to 26.5 GHz and a 50-ohm impedance, the SMP Female to SMA Female RF Adapter is ideal for use in a wide variety of systems including unmanned aerial vehicle RF platforms, external 5G radio unit interfaces, and RF component performance testing. This SMP between-series adapter bridges miniature SMP module designs with more accessible SMA test or signal paths.

Engineered for precision, this SMP Female to SMA Female RF Adapter delivers a maximum VSWR of ≤1.15 and an insertion loss of ≤0.25 dB, supporting accurate signal transmission with minimal degradation. Its straight form factor promotes signal continuity in tight setups or when transitioning between test systems and embedded modules.

Constructed from rugged passivated stainless steel with gold-plated beryllium copper contacts, this SMP to SMA coaxial adapter ensures excellent durability, electrical performance, and corrosion resistance. This female to female adapter operates reliably in environments ranging from -55°C to +165°C, meeting the demands of aerospace, telecom, and defense sectors.

RoHS and REACH compliant, the SMP Female to SMA Female RF Adapter is a trusted choice for engineers building, testing, or deploying modular RF systems. Custom configurations and low-profile versions of this SMP adapter can be provided to meet specific project needs.
