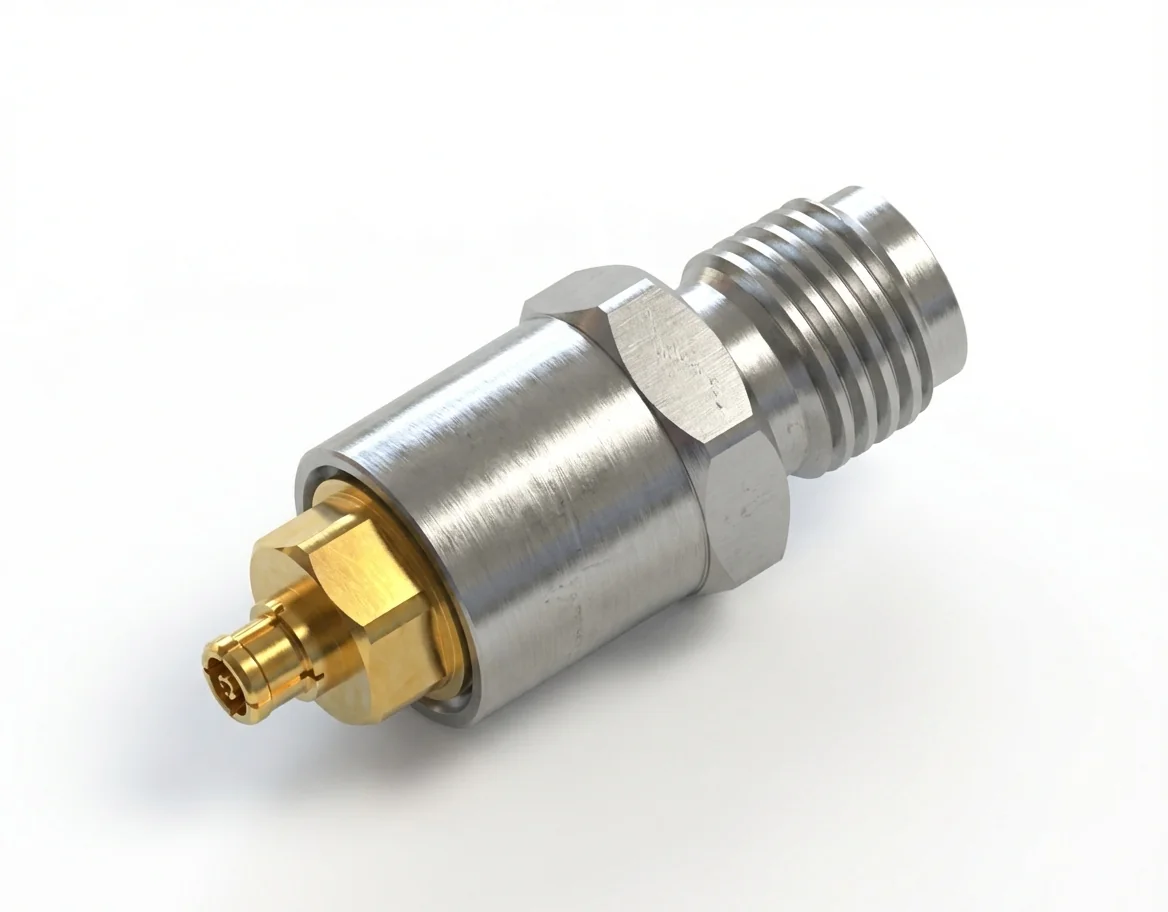

SSMP Female to 3.5mm Female RF Adapter

The SSMP Female to 3.5mm Female RF Adapter – SSMP/3.5-KK1, also referred to as 3.5mm Female to SSMP Female RF Adapter – 3.5/SSMP-KK1, is a high-performance coaxial adapter designed to facilitate signal transmission between miniature SSMP and precision 3.5mm systems. This straight adapter provides a compact and reliable solution for connecting high-frequency test modules with miniaturized onboard components.

Rated up to 26.5 GHz with a controlled 50-ohm impedance, the SSMP Female to 3.5mm Female RF Adapter is well suited for dense modular assemblies and RF test fixtures where space and performance are both critical. This SSMP between-series adapter supports advanced applications including component performance evaluation, 5G module interfaces, and satellite and aerospace RF modules.

The SSMP Female to 3.5mm Female RF Adapter ensures excellent RF integrity, with a typical VSWR of ≤1.1 and an insertion loss of ≤0.3 dB. Its straight design enables low-reflection, high-stability connections in precision lab setups and in-field systems requiring modular RF adaptation between compact and general-purpose connectors.

Engineered with passivated stainless steel housing and gold-plated beryllium copper contacts, this SSMP to 3.5mm female adapter offers long-term reliability even in harsh environments. The SSMP Female to 3.5mm Female RF Adapter from Mechanc performs over a broad operating temperature range of -55°C to +165°C, making it ideal for both indoor labs and mobile RF systems.

Compliant with RoHS and REACH standards, the SSMP Female to 3.5mm Female RF Adapter – SSMP/3.5-KK1 delivers dependable performance for engineers working in telecom, aerospace, and millimeter-wave R&D. Custom designs and alternate interface variants are available upon request for specialized requirements.
