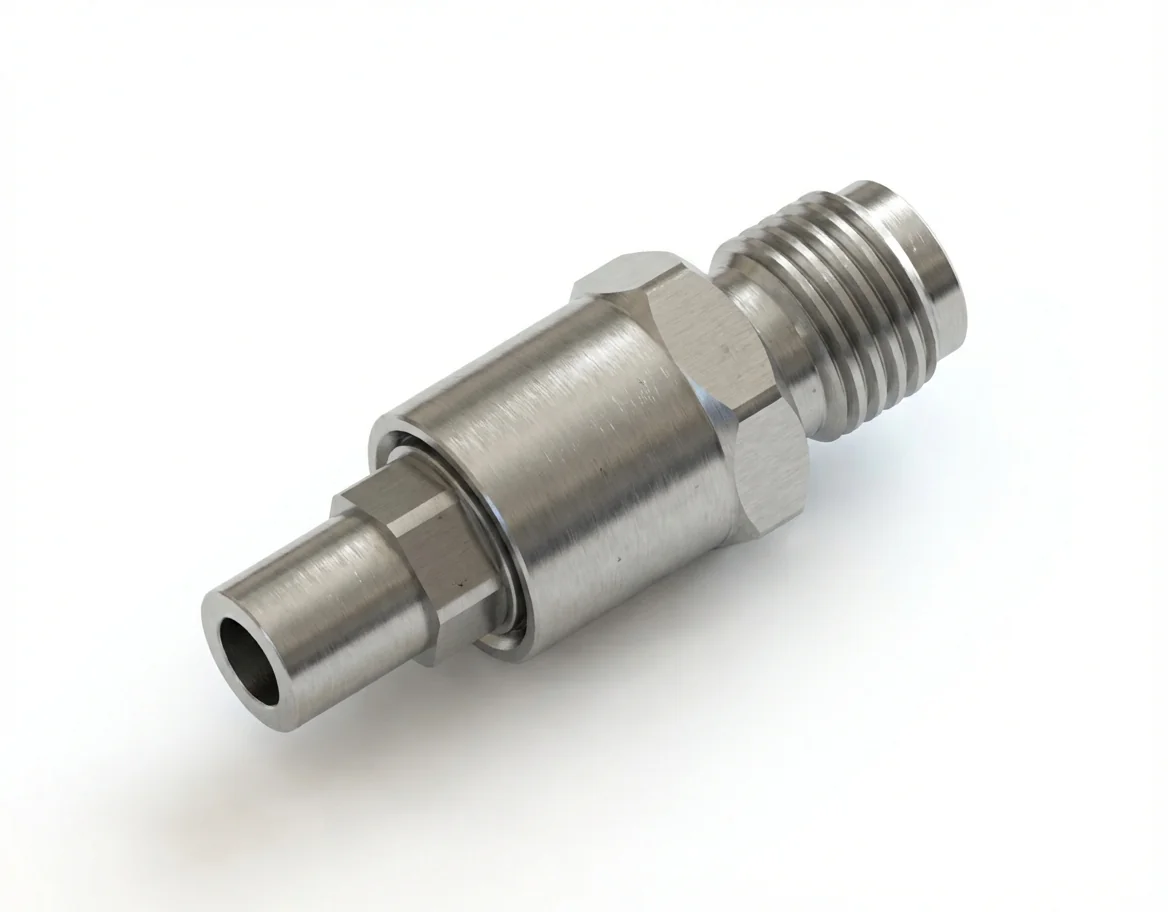

SSMP Male to 3.5mm Female RF Adapter

The SSMP Male to 3.5mm Female RF Adapter – SSMP/3.5-JK1, also referred to as 3.5mm Female to SSMP Male RF Adapter – 3.5/SSMP-KJ1, is a compact high-frequency coaxial adapter engineered to interconnect SSMP male interfaces with standard 3.5mm female connectors. This straight adapter is designed for applications requiring precision signal integrity between miniaturized subsystems and high-performance RF instruments.

Operating up to 26.5 GHz with a 50-ohm impedance, the SSMP Male to 3.5mm Female RF Adapter enables seamless integration of compact modules into broader RF test environments and signal paths. It is frequently deployed in 5G module testing setups, controlled laboratory testing environments, and military-grade unmanned platforms where space savings and high fidelity are essential.

This adapter offers excellent RF performance with VSWR ≤1.1 and insertion loss ≤0.3 dB, making This SSMP to 3.5mm adapter ideal for critical measurement, validation, and data acquisition scenarios. The SSMP interface features a snap-on blind-mate design, providing rapid, secure connections in dense electronic systems or modular test fixtures.

The SSMP Male to 3.5mm Female RF Adapter is manufactured using passivated stainless steel for mechanical strength and corrosion resistance, with gold-plated beryllium copper inner contacts to ensure stable signal conductivity. The operational range of this SSMP between-series adapter spans from -55°C to +165°C, ensuring long-term reliability even under thermally demanding or mobile RF system conditions.

Fully RoHS and REACH compliant, the SSMP Male to 3.5mm Female RF Adapter is a trusted choice for telecom test benches, aerospace integrations, and precision RF measurement setups. Custom modifications, including mounting features or mechanical variations of our SSMP adapters are available upon request.
