1.0mm Male to 1.0mm Male System Interconnect Low-Loss RF Cable Assembly – Use CFS150AUH Coax

1.0mm Male to 1.0mm Male Low-Loss RF Cable Assembly – Built with CFS150AUH Coaxial Cable

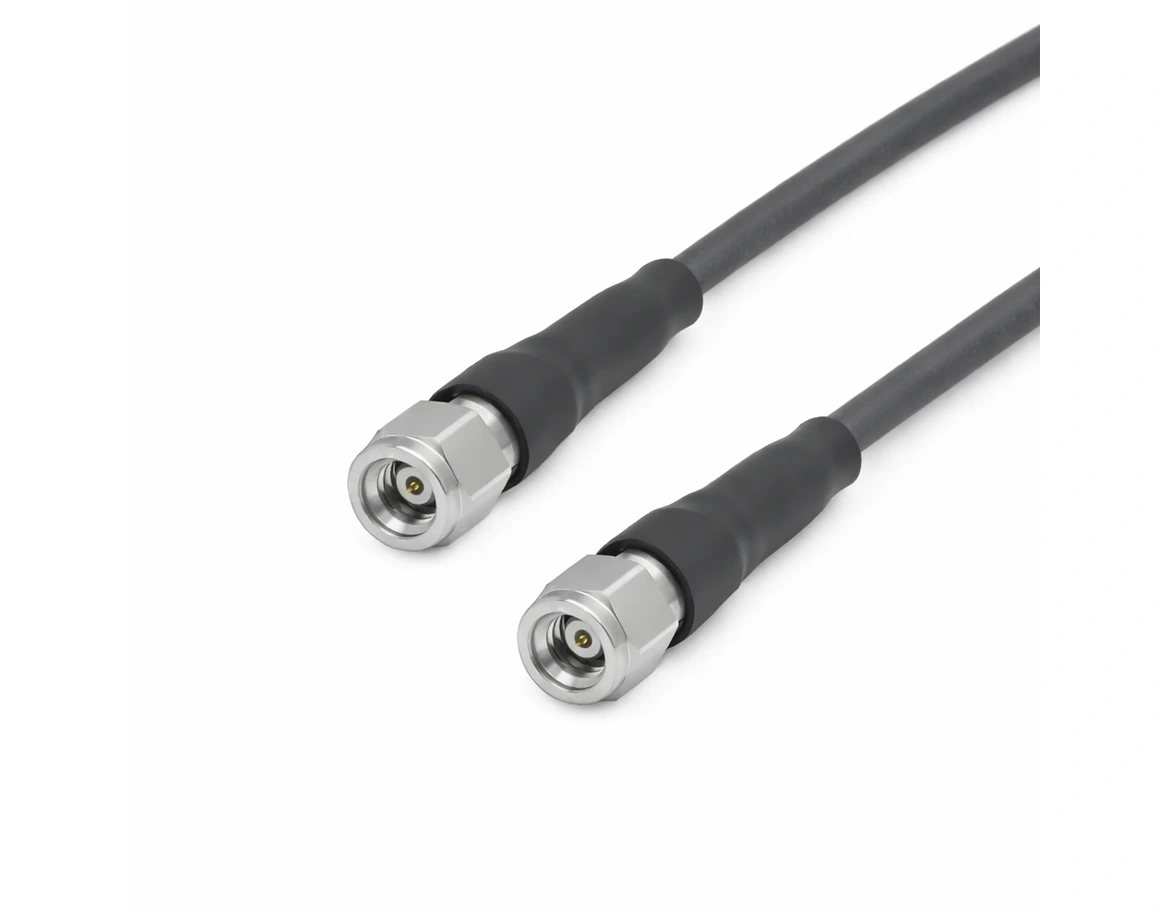

The 1.0mm Male to 1.0mm Male Low-Loss RF Cable Assembly — model IFC10-1.0M1.0M-1M — is designed for ultra-high-frequency measurement systems that require outstanding signal stability and repeatability. It is built with Mechanc’s CFS150AUH coaxial cable, a variation of the CFS150U ultra-low-loss 110 GHz precision test coaxial cable with FEP jacket, and terminated with precision 1.0 mm male connectors (reference 1.0-JCFS150AUH-1). With a frequency range extending up to 110 GHz, a maximum VSWR of 1.35, an insertion loss of 2.3 dB per meter, and a compact 1.5 mm outer diameter, it delivers excellent electrical performance and mechanical flexibility for demanding RF test environments.

High-Frequency Stability and Precision Performance

Optimized for ultra-broadband operation, the IFC10-1.0M1.0M-1M maintains phase and amplitude consistency across the entire operating band. The precision-machined 1.0 mm male terminations ensure low reflection and stable impedance matching, making this assembly ideal for vector network analyzer (VNA) setups, calibration kits, and high-frequency signal interconnections requiring maximum repeatability.

For more interconnect options in this frequency range, explore the complete selection of 1.0 mm RF Cable Assemblies from Mechanc, designed for precise, low-loss performance in ultra-high-frequency testing environments.

Low Insertion Loss and Robust Mechanical Design

The CFS150AUH coaxial structure provides exceptional low-loss transmission of 2.3 dB/m while preserving mechanical durability. Its 1.5 mm-diameter construction allows smooth routing in compact setups and minimizes stress during repeated movements, ensuring long-term reliability in precision laboratory and production testing environments.

Reliable System Interconnect for Advanced Test Applications

Part of the System Interconnect RF Cable Assemblies – IFC Series, this cable assembly combines rugged mechanical design with the electrical accuracy required for mission-critical RF measurements. All Mechanc IFC Series assemblies are individually tested and fully compliant with REACH and RoHS standards.
