2.4mm Male to 2.4mm Male High-Performance RF Test & Measurement Cable Assembly – Use CFT360H Coax

2.4mm Male to 2.4mm Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT360H Coaxial Cable

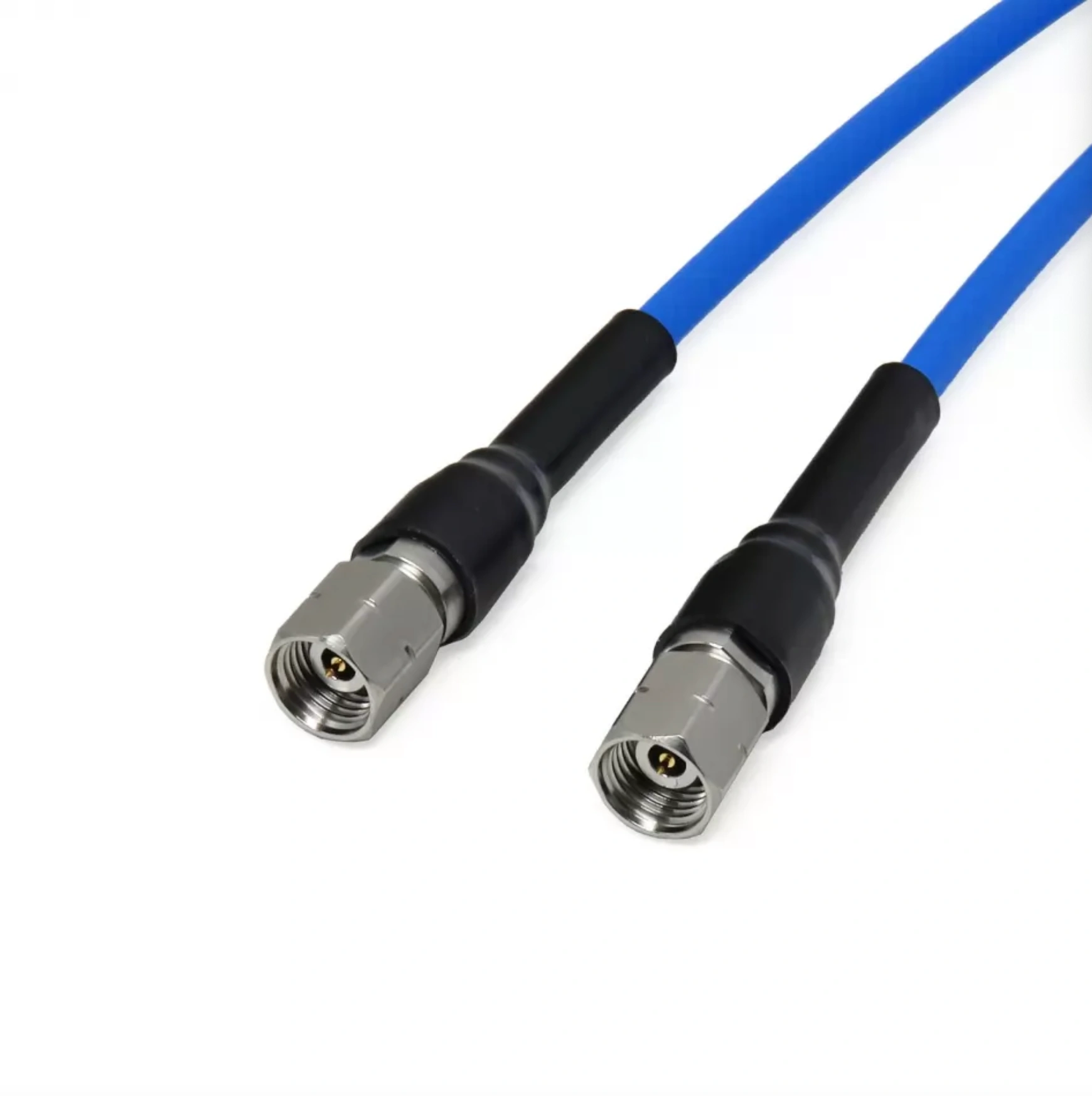

The 2.4mm Male to 2.4mm Male High-Performance RF Test & Measurement Cable Assembly — model TCA24-2.4M2.4M-1M — is engineered for advanced microwave characterization up to 50 GHz. This precision assembly is built using Mechanc’s CFT360H coaxial cable, a high-stability performance variation of the CFT360 Phase-Stable 50 GHz Ruggedized Precision Test Coaxial Cable. The cable is terminated on both ends with accurate 2.4 mm male connectors (reference 2.4-JCFT360H-1), ensuring low-reflection, repeatable electrical performance for high-frequency laboratory systems.

Stable High-Frequency Performance up to 50 GHz

Designed for demanding RF and microwave measurement applications, the TCA24-2.4M2.4M-1M provides reliable performance from DC to 50 GHz. It delivers a 1.25 typical VSWR and an excellent 3.94 dB typical insertion loss per meter, supporting accurate S-parameter characterization, VNA calibration routines, and broadband component evaluation. Its controlled impedance and stable return-loss behavior enable precise and repeatable test results in R&D and production environments.

Rugged, Phase-Stable Construction for Repeatable Measurements

The CFT360H coaxial cable offers superior electrical stability under bending, thermal changes, and repeated handling. With ±8° mechanical phase stability and ±0.07 dB amplitude stability, the assembly consistently maintains its electrical performance during repositioning or frequent connector engagement. The compact 3.6 mm outer diameter and 36 mm minimum bend radius allow for efficient installation in space-constrained test setups, while a 10,000-cycle bend life ensures robust long-term operation.

The TCA24-2.4M2.4M-1M achieves a 74% velocity of propagation, supporting accurate time-domain analysis and phase-dependent measurements across a wide −55 °C to +165 °C operating temperature range.

Precision 2.4mm Male Connectors for High-Frequency Accuracy

Each end of the assembly is fitted with precision 2.4-JCFT360H-1 connectors optimized for 50 GHz operation. These interfaces ensure secure, low-reflection mating suitable for high-density test setups, automated test fixtures, and VNA-based characterization. For additional assemblies in this interface range, browse the full 2.4mm RF Cable Assemblies series.

Qualified for Professional Microwave Test Systems

Every TCA-series assembly is fully tested for VSWR, insertion loss, phase stability, amplitude stability, and mechanical endurance. The TCA24-2.4M2.4M-1M meets REACH and RoHS standards and is designed for long-term reliability in advanced RF and microwave laboratory environments.
