2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Use CFT420MWH Coax

2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT420MWH Coaxial Cable

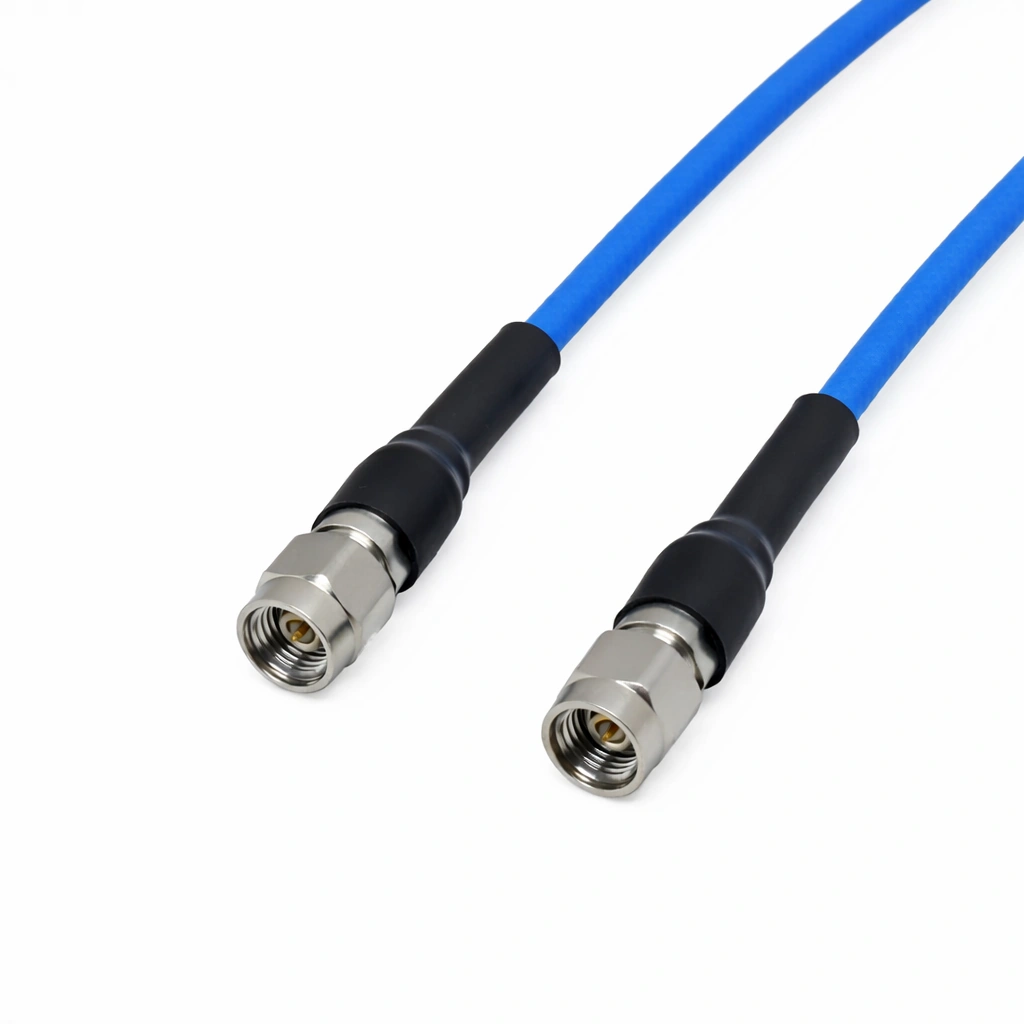

The 2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly — model TCA292-2.92M2.92M-1M — is designed for advanced microwave laboratories and instrumentation platforms requiring stable performance across the full DC–40 GHz range. This precision assembly is manufactured using Mechanc’s CFT420MWH high-frequency coaxial cable, a rugged, phase-stable variation of the CFT420M phase-stable 40 GHz precision test coaxial cable. Both cable ends are terminated with high-accuracy 2.92 mm male connectors (reference 2.92-JCFT420MWH-1), ensuring low-reflection, repeatable performance suitable for high-end measurement systems.

Engineered for Precision Microwave Measurement

Designed specifically for vector network analyzer (VNA) measurements, high-frequency module characterization, and broadband component evaluation, the TCA292-2.92M2.92M-1M provides clean impedance behavior and excellent repeatability across its operating range. With a 1.25 typical VSWR and 3.21 dB typical insertion loss, the assembly ensures highly accurate signal transmission for demanding test and verification tasks. Its ±8° mechanical phase stability and ±0.07 dB amplitude stability help maintain measurement integrity during cable movement, routing, and repeated laboratory use.

High-Performance Construction with Enhanced Stability

The CFT420MWH coaxial cable offers a high-stability architecture optimized for 40 GHz microwave work, featuring a durable mechanical structure and enhanced flexibility. With a compact 4.2 mm outer diameter, 42 mm minimum bend radius, and an impressive 50,000-cycle bend life, the assembly provides consistent, repeatable results in environments where cables are frequently repositioned. The wide –55 °C to +165 °C temperature range supports stable performance under demanding thermal conditions.

Reliable Interconnect for High-Frequency Test Platforms

Part of Mechanc’s TCA Series of high-performance microwave test cables, the TCA292-2.92M2.92M-1M is built for reliability in precision measurement applications. Each assembly is fully tested for VSWR, phase stability, insertion-loss performance, and mechanical endurance, ensuring dependable operation across long-term laboratory and production test environments.
