2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Use CFT360H40 Coax

2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT360H40 Coaxial Cable

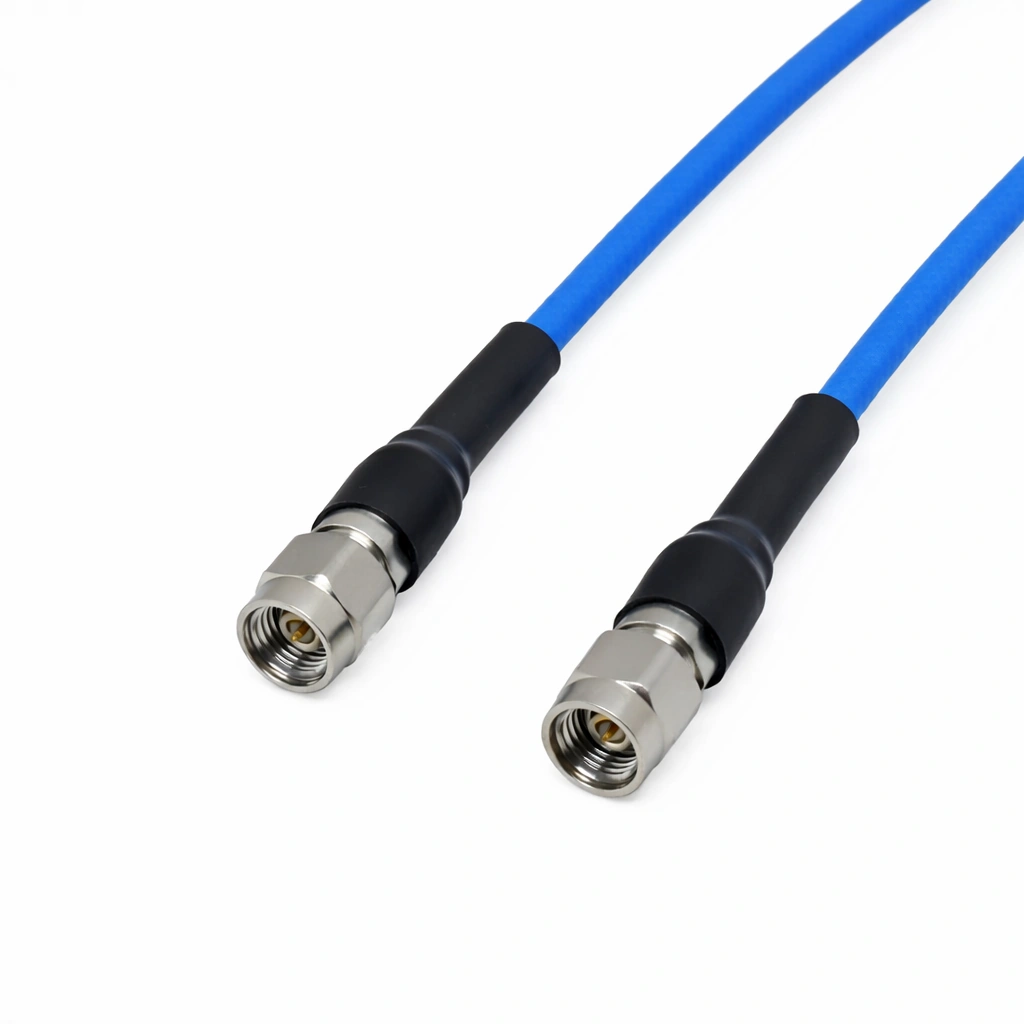

The 2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly — model TCB292-2.92M2.92M-1M — is engineered for broadband microwave measurement systems requiring stable electrical performance up to 40 GHz. This assembly features Mechanc’s CFT360H40 coaxial cable, a rugged, phase-stable variation of the CFT360 Phase-Stable 50 GHz Ruggedized Precision Test Coaxial Cable. The cable is terminated on both ends with precision 2.92 mm male connectors (reference 2.92-JCFT360H40-1), ensuring low-reflection, repeatable connections for high-frequency laboratory environments.

Stable Microwave Performance from DC to 40 GHz

Optimized for accurate high-frequency measurement, the TCB292-2.92M2.92M-1M delivers consistent impedance and low reflection across the DC–40 GHz range. The assembly achieves a 1.25 typical VSWR and 1.35 maximum VSWR with a 4.33 dB typical insertion loss, enabling clean transmission paths for VNA calibration, S-parameter analysis, broadband component testing, and RF signal verification in demanding R&D environments.

Rugged, Phase-Stable Construction for Reliable Measurements

The CFT360H40 coaxial cable is designed for mechanical stability and robust electrical performance under bending, motion, and repeated handling. With ±8° mechanical phase stability and ±0.07 dB amplitude stability, the assembly maintains repeatable results throughout extended testing cycles. A compact 3.6 mm outer diameter and 36 mm minimum bend radius allow flexible routing in dense test setups, while a 10,000-cycle bend life ensures long-term durability. The assembly supports a broad –55 °C to +165 °C operating temperature range and a 74% velocity of propagation for accurate time-domain analysis.

Precision 2.92mm Male Interfaces for Microwave Test Accuracy

Each end of the assembly uses precision 2.92-JCFT360H40-1 male connectors engineered for tight tolerance, low reflection, and consistent mating at 40 GHz. These precision-grade interfaces provide reliable performance for high-density microwave setups, automated test systems, and advanced instrumentation. Explore additional assemblies in this interface group in the 2.92mm RF Cable Assemblies series.

Qualified for Advanced RF & Microwave Test Systems

Part of Mechanc’s high-performance TC series, the TCB292-2.92M2.92M-1M is fully tested for VSWR, insertion loss, phase stability, and mechanical reliability. It complies with REACH and RoHS standards to ensure long-term environmental and operational safety. This assembly provides an ideal interconnect solution for professional 40 GHz RF and microwave measurement laboratories.
