2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Use CFT240H40 Coax

2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly – Built with CFT240H40 Coaxial Cable

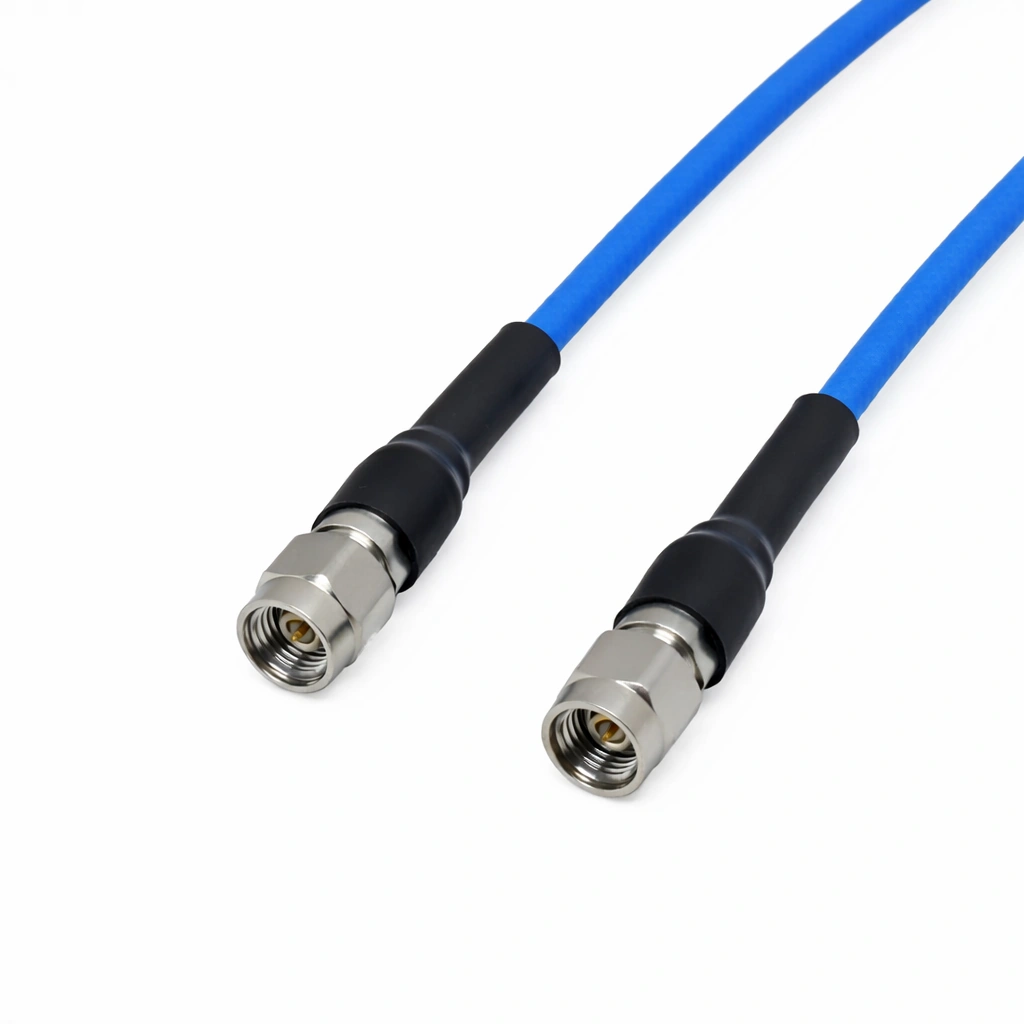

The 2.92mm Male to 2.92mm Male High-Performance RF Test & Measurement Cable Assembly — model TCC292-2.92M2.92M-1M — is designed for precision RF and microwave laboratories that require stable, repeatable performance up to 40 GHz. This 1 meter assembly is built using Mechanc’s CFT240H40 coaxial cable, a high-performance phase-stable variation of the CFT240 Phase-Stable 67 GHz Precision Test Coaxial Cable with FEP Jacket. Both ends are terminated with precision 2.92 mm male connectors (reference 2.92-JCFT240H40-1), providing a robust, repeatable interface for high-frequency test systems.

Reliable Microwave Performance up to 40 GHz

Optimized for everyday high-frequency measurement tasks, the TCC292-2.92M2.92M-1M supports operation from DC to 40 GHz with controlled impedance and low reflection. The assembly offers a 1.2 typical VSWR and a 4.94 dB typical insertion loss per meter, enabling accurate vector network analyzer (VNA) measurements, S-parameter characterization, and broadband signal-path verification in R&D and production environments.

Phase-Stable Construction for Consistent Measurement Results

The CFT240H40 coaxial cable is engineered to minimize electrical drift during bending, routing, or thermal variation. With ±8° mechanical phase stability and ±0.07 dB amplitude stability, the assembly maintains consistent performance over repeated handling and repositioning. Its compact 2.4 mm outer diameter and 24 mm minimum bend radius make it well-suited for dense test setups, while a typical 2,000-cycle bend life and 81% velocity of propagation support reliable long-term operation and accurate time-domain analysis.

Precision 2.92mm Male Interfaces for High-Frequency Accuracy

Each end of the TCC292-2.92M2.92M-1M features precision 2.92-JCFT240H40-1 male connectors designed for low reflection, tight mechanical tolerances, and repeatable mating at microwave frequencies. These interfaces are ideal for frequent VNA connections, automated test fixtures, and high-density instrumentation layouts. For additional assemblies in this interface category, explore the complete 2.92mm RF Cable Assemblies series.

Qualified for Professional RF & Microwave Test Systems

As part of Mechanc’s high-performance TC series, the TCC292-2.92M2.92M-1M is fully tested for VSWR, insertion loss, phase stability, and mechanical endurance. It is manufactured to meet stringent quality and environmental standards, including REACH and RoHS compliance, ensuring long-term reliability in advanced RF and microwave measurement applications.
