2.92mm Male to 2.92mm Male System Interconnect Low-Loss RF Cable Assembly – Use CFS400BH Coax

2.92mm Male to 2.92mm Male Low-Loss RF Cable Assembly – Built with CFS400BH Coaxial Cable

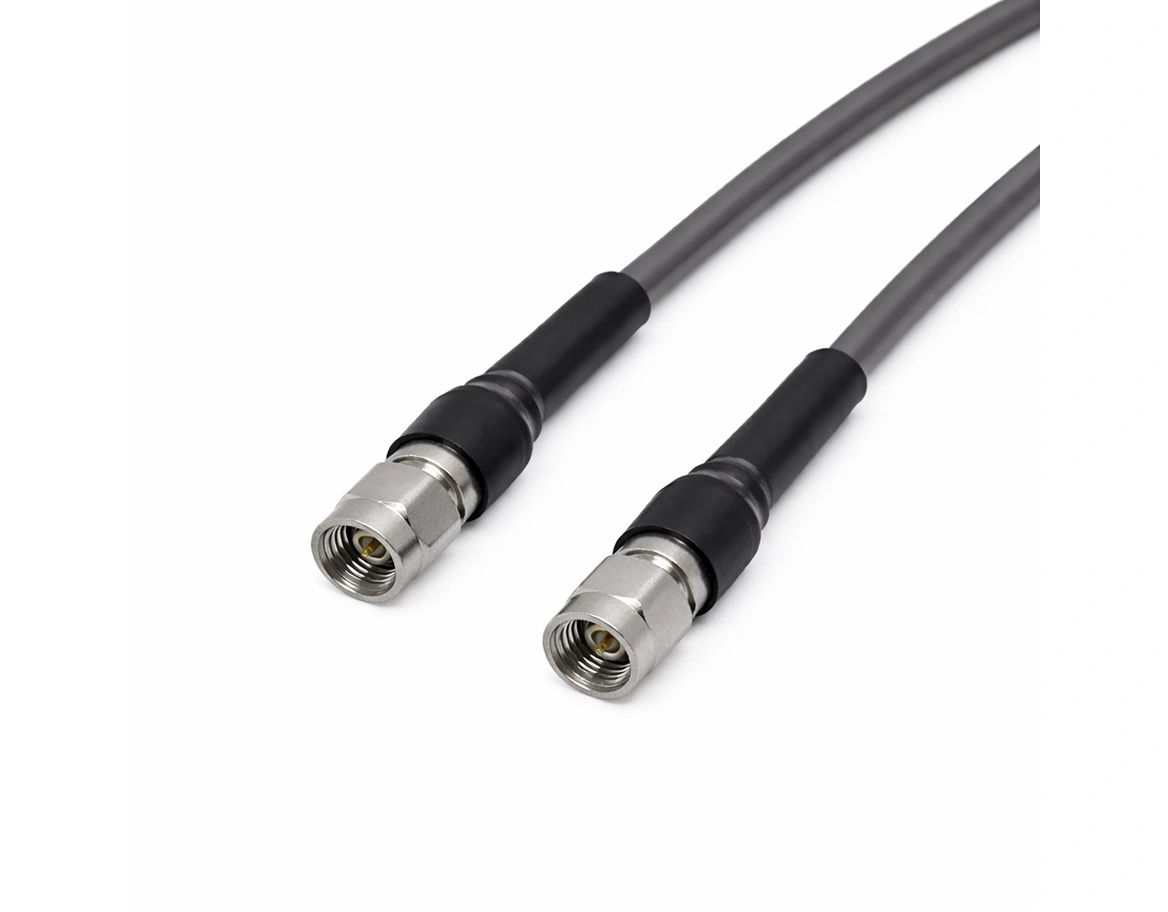

The 2.92mm Male to 2.92mm Male Low-Loss RF Cable Assembly — model IFCA292-2.92M2.92M-1M — is a precision-engineered interconnect solution for broadband measurement and microwave systems requiring accurate, repeatable performance. It is constructed with Mechanc’s CFS400BH coaxial cable, a variation of the CFS400B ultra-low-loss 40 GHz precision test coaxial cable with PFA jacket, and terminated with two precision 2.92 mm male connectors (reference 2.92-JCFS400BH-1). Supporting operation up to 40 GHz, the assembly maintains a maximum VSWR of 1.35 and an insertion loss of 1.8 dB per meter, offering exceptional stability for demanding test setups. Its 4.0 mm outer diameter provides a robust yet flexible structure for use in dense RF instrumentation environments.

Accurate Broadband Matching and Repeatable Measurements

Designed for stable high-frequency performance, the IFCA292-2.92M2.92M-1M ensures tight impedance control and low reflection throughout the 40 GHz range. The precision-machined 2.92 mm connectors deliver consistent mechanical alignment and superior return-loss characteristics, ideal for vector network analyzer (VNA) calibration, signal verification, and device characterization.

For additional precision interconnect options, explore Mechanc’s 2.92 mm RF Cable Assemblies, offering low-loss, phase-stable solutions tailored for broadband and microwave testing up to 40 GHz.

Low-Loss Coaxial Construction with Phase Stability

The CFS400BH coaxial structure delivers ultra-low attenuation while maintaining excellent phase linearity under flexure. Its PFA jacket enhances temperature resistance and mechanical durability, ensuring consistent performance through repeated connection cycles and long-term operation in laboratory or production environments.

Reliable System Interconnect for High-Frequency Applications

As part of Mechanc’s System Interconnect RF Cable Assemblies – IFC Series, the IFCA292-2.92M2.92M-1M combines mechanical strength with exceptional electrical precision. Each assembly is individually tested and fully compliant with REACH and RoHS standards, providing long-term reliability and environmental assurance for professional RF measurement systems.
