3.5mm Male to 3.5mm Male System Interconnect Low-Loss RF Cable Assembly – Use CFS480UH Coax

3.5mm Male to 3.5mm Male Low-Loss RF Cable Assembly – Built with CFS480UH Coaxial Cable

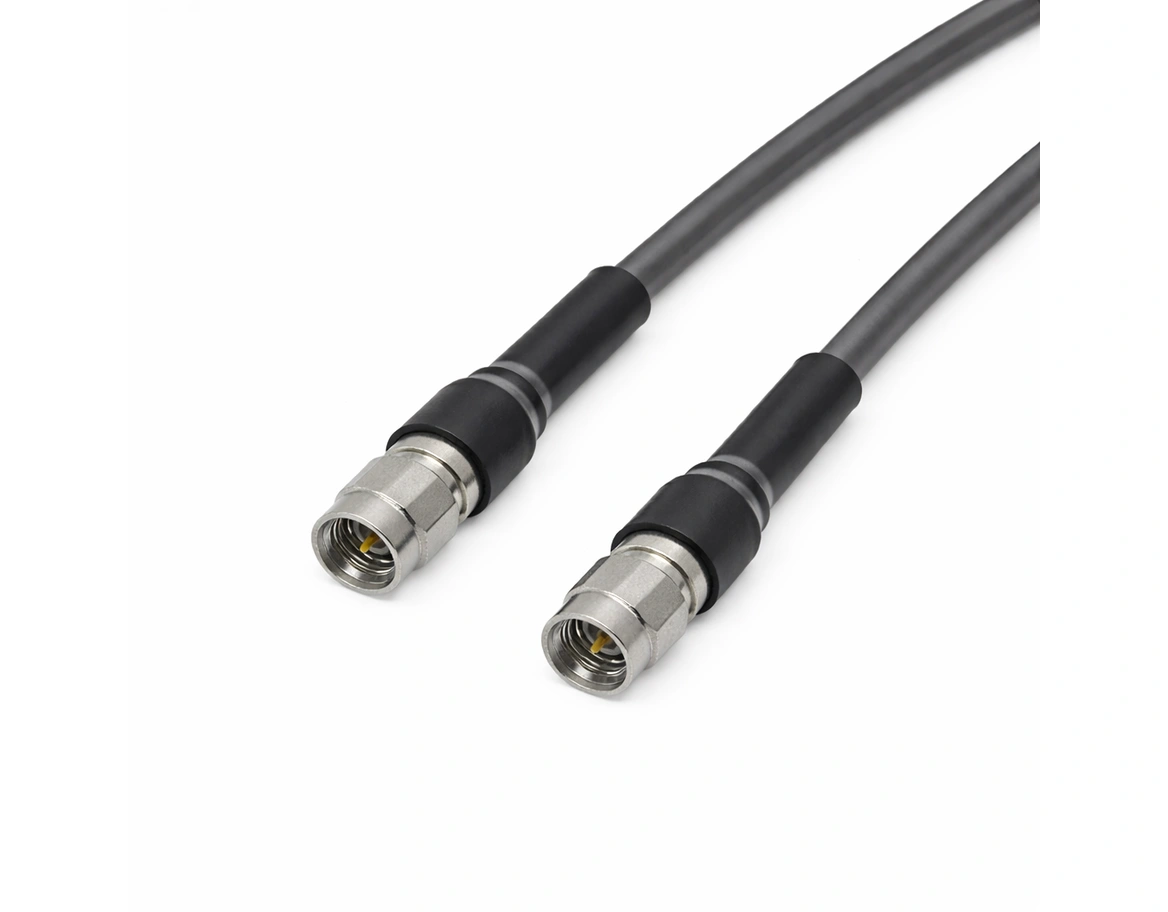

The 3.5mm Male to 3.5mm Male Low-Loss RF Cable Assembly — model IFCA35-3.5M3.5M-1M — is a precision interconnect solution engineered for laboratory and production test environments that demand consistent broadband performance and mechanical robustness. It is built with Mechanc’s CFS480UH coaxial cable, a variation of the CFS480U ultra-low-loss 32 GHz precision test coaxial cable with PFA jacket, and terminated with two 3.5 mm male connectors (reference 3.5-JCFS480UH-1). Supporting frequencies up to 32 GHz, this 4.8 mm-diameter assembly achieves a maximum VSWR of 1.35 and an insertion loss of 1.8 dB per meter, ensuring low attenuation and superior phase stability for precision RF testing.

Accurate Broadband Performance with Excellent Return Loss

Optimized for broadband operation up to 32 GHz, the IFCA35-3.5M3.5M-1M maintains tight impedance control and minimal reflection across its full frequency range. The precision-machined 3.5 mm male connectors ensure consistent phase behavior and low reflection, making this assembly ideal for vector network analyzer (VNA) measurements, calibration kits, and device characterization in high-frequency systems.

Discover Mechanc’s complete range of 3.5 mm RF Cable Assemblies, offering precision interconnects designed for stable, low-loss performance and repeatable measurements across broadband and microwave test applications.

Low-Loss Design with Mechanical Stability

The CFS480UH coaxial cable provides an ultra-low-loss dielectric and reinforced construction that minimizes phase drift during bending or thermal variation. Its PFA jacket offers flexibility and environmental resistance while maintaining consistent electrical parameters, ensuring dependable operation through repeated connection cycles and demanding laboratory conditions.

Reliable System Interconnect for Advanced RF Measurements

Part of Mechanc’s System Interconnect RF Cable Assemblies – IFC Series, the IFCA35-3.5M3.5M-1M combines mechanical strength with precision electrical stability for professional RF measurement systems. Each assembly is individually tested for VSWR and insertion loss performance and is fully compliant with REACH and RoHS standards to ensure environmental responsibility and long-term reliability.
